What is a type 4 enclosure?
In industrial and power generation applications, equipment protection standards are crucial for ensuring reliability and longevity. The National Electrical Manufacturers Association (NEMA) establishes enclosure ratings that define levels of protection against environmental factors. A diesel generator sound attenuated enclosure designed to NEMA Type 4 standards represents one of the highest levels of protection available for outdoor industrial equipment, combining weatherproof integrity with acoustic performance.
Definition and Standards

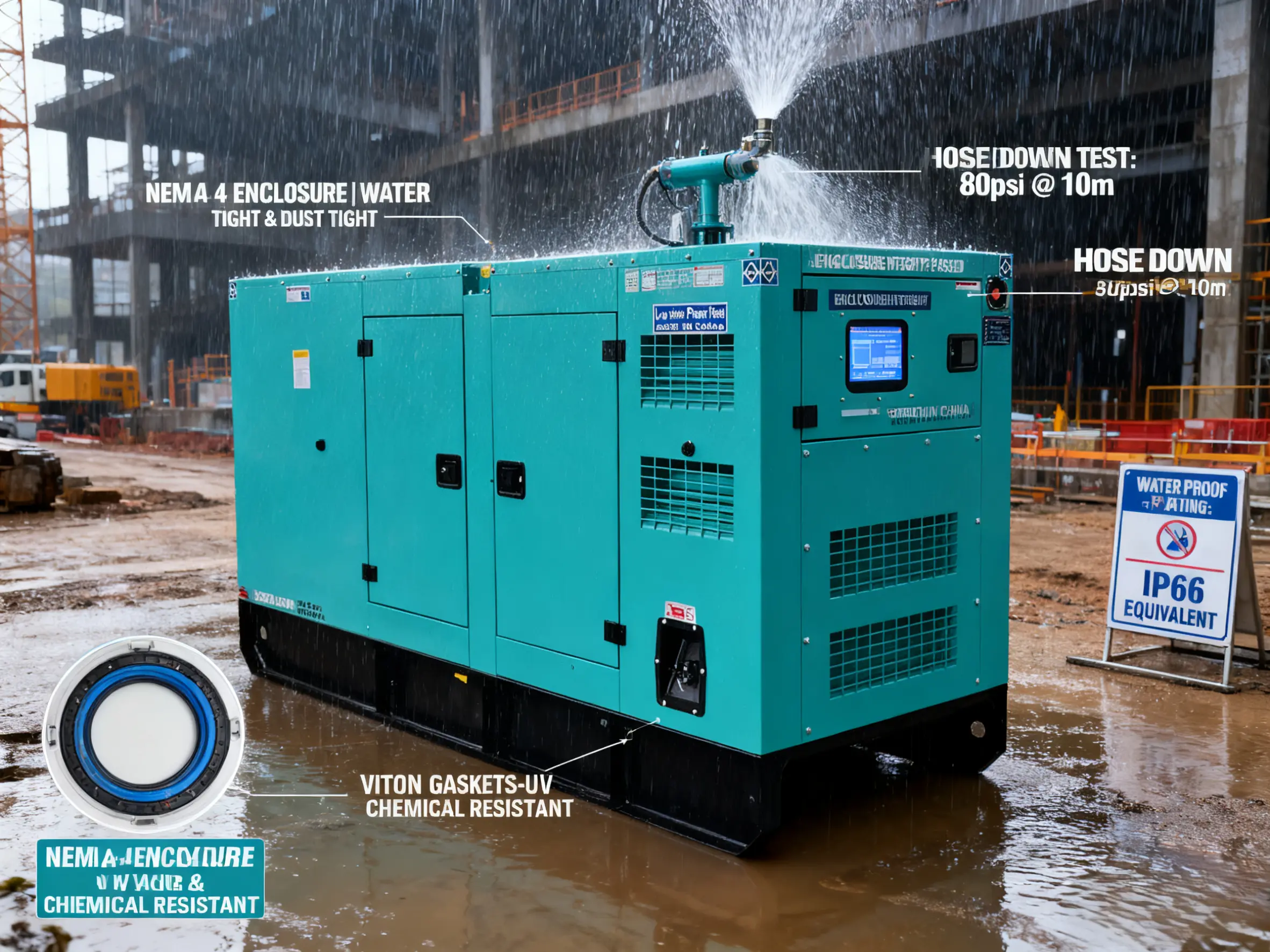

A NEMA Type 4 enclosure is designed to provide protection against falling dirt, windblown dust, rain, sleet, snow, and hose-directed water. These enclosures also resist the formation of ice on the enclosure. The standard requires that Type 4 enclosures withstand water exposure equivalent to at least 65 gallons per minute from a 1-inch nozzle delivered from any direction from a distance of no less than 10 feet for at least 5 minutes without leakage. When combined with acoustic engineering, a Type 4 diesel generator sound attenuated enclosure provides both environmental protection and significant noise reduction, typically achieving 20-35 dBA noise reduction while maintaining complete weather integrity.
Structural Features and Design Characteristics
Type 4 enclosures incorporate specific design elements to meet rigorous protection standards:
Construction Materials:
- 12-14 gauge galvanized steel with corrosion-resistant coating
- Stainless steel hardware and fasteners
- Continuous welding on all seams and joints
- Reinforced structural framework for durability
Sealing System:
- Neoprene or EPDM gasketing at all access points
- Double-seal door designs with compression latches
- Conduit openings with waterproof sealing glands
- Welded construction eliminating potential leakage points
Ventilation and Acoustics:
- Waterproof acoustic louvers with drainage channels
- Baffled ventilation systems preventing water ingress
- Internal acoustic insulation protected from moisture
- Vibration isolation mounts with weather protection
Access and Maintenance:
- Heavy-duty hinged doors with multiple-point latching
- External operating mechanisms with sealed bearings
- Visible indication of proper door sealing
- Easy access for maintenance without compromising seals
Applications and Advantages
Type 4 enclosures are essential for numerous demanding applications:
Ideal Applications:
- Coastal installations with salt spray exposure
- Food processing facilities requiring washdown capability
- Chemical plants with corrosive atmospheres
- Marine applications and offshore installations
- Cold climate operations with ice and snow loading
- Areas requiring high-pressure washdown cleaning
Performance Advantages:
- Complete protection against weather elements
- Resistance to corrosion and environmental degradation
- Maintenance reduction due to protected components
- Extended equipment life through environmental control
- Compliance with strict industry regulations and standards
- Enhanced safety through reliable equipment protection
The integration of acoustic performance transforms a standard Type 4 enclosure into a comprehensive diesel generator sound attenuated enclosure solution that addresses both environmental challenges and noise control requirements.
Cost-Benefit Analysis: When Type 4 is Essential
Understanding when to invest in Type 4 protection requires careful evaluation:
Mandatory Applications:
- Regulatory requirements mandating specific protection levels
- Environments with frequent high-pressure washing
- Coastal areas with salt spray exposure
- Food, pharmaceutical, or chemical processing facilities
- Locations with extreme weather conditions
Cost Considerations:
- Initial investment vs. long-term maintenance savings
- Potential downtime costs from weather-related failures
- Regulatory compliance costs and potential penalties
- Equipment replacement costs due to environmental damage
- Energy savings from proper thermal management
Alternative Options:
- Type 3R for basic weather protection without seals
- Type 4X for additional corrosion resistance
- Custom solutions for specific environmental challenges
For most industrial applications involving diesel generator sound attenuated enclosure systems, the additional investment in Type 4 protection proves cost-effective through reduced maintenance, extended equipment life, and reliable operation in challenging conditions.
Conclusion
Selecting the appropriate enclosure type requires careful consideration of environmental conditions, regulatory requirements, and operational needs. A Type 4 rated enclosure provides the highest level of weatherproof protection while maintaining the acoustic performance necessary for noise-sensitive applications.
