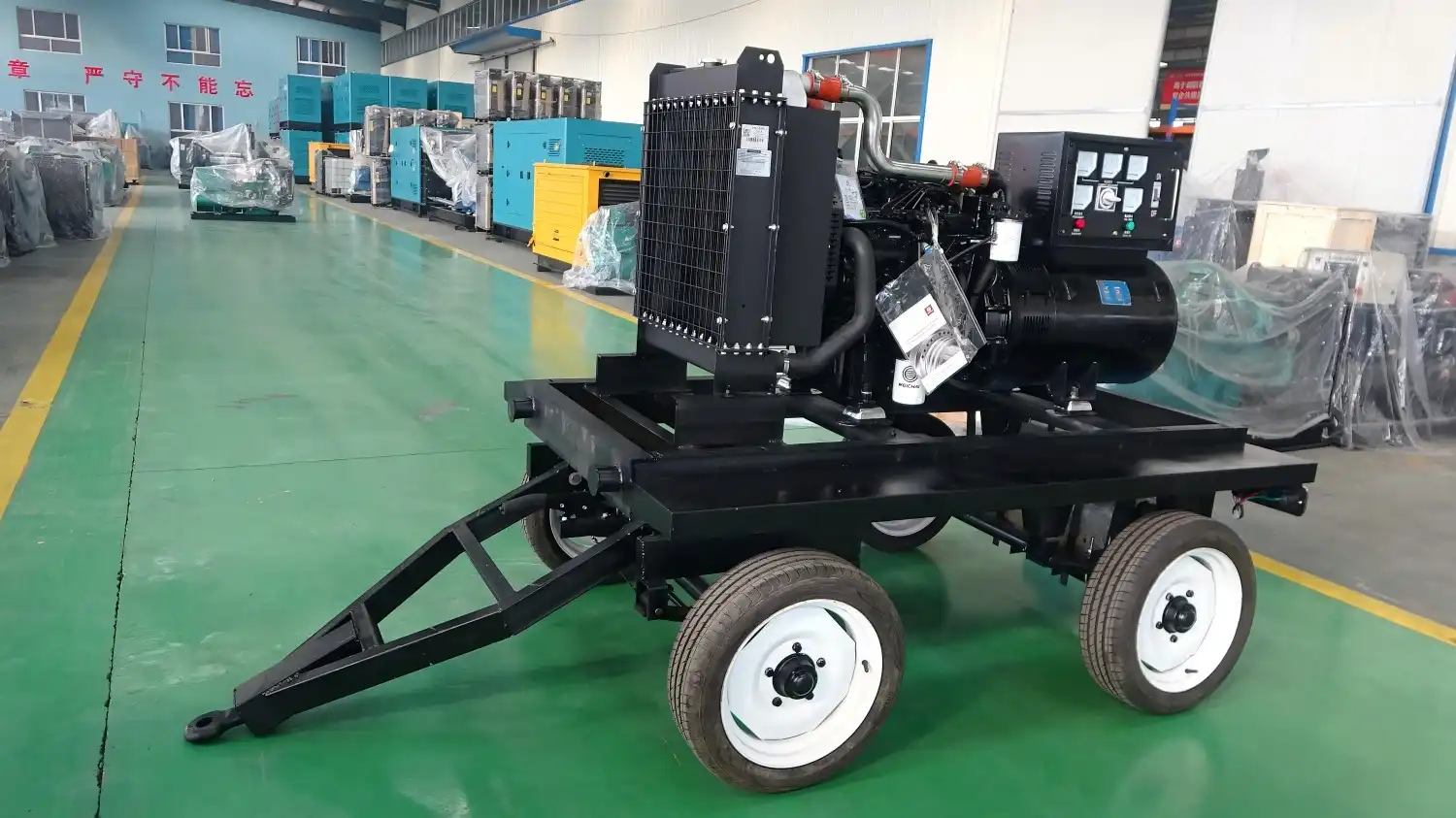

open type diesel generator with wheels

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Open Type Diesel Generator With Wheels Manufacturer & Supplier

At Wuhan Jlmech Co., Ltd., we specialize in manufacturing robust open type diesel generator with wheels designed for mobility and reliability. With 3 R&D centers, 126 technical experts, and global OEM partnerships (Cummins, Perkins, etc.), our generators combine advanced engineering, fuel efficiency, and easy transport for construction, mining, and emergency operations.

Open Type Diesel Generator With Wheels Description

Our open type diesel generator with wheels features a rugged open-frame design, ideal for outdoor or industrial environments. Built with heavy-duty wheels and a reinforced chassis, it ensures effortless relocation across job sites. The generator delivers stable power output (10-500 kVA) with low noise levels, making it perfect for temporary projects, disaster relief, or remote events.

open type diesel generator with wheels

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	c
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg
JL-200GF	6126ZLD	206kW	360A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1800kg
JL-250GF	6126ZLD1	256kW	450A	400V/230V	50Hz	126*130	1500rpm		6	290*95'150	1800kg
JL-300GF	6126ZLD2	308kW	540A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1900kg
JL-300GF	618ZLD	338kW	540A	400V/230V	50Hz	126*155	1500rpm		6	300100180	2000kg
JL-400GF	6126ZLD3	408kW	720A	400V/230V	50Hz	126*155	1500rpm		6	300*110"160	2000kg
JL-500GF	6126ZLD4	508kW	900A	400V/230V	50Hz	127*165	1500rpm		6	340110180	2400kg

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Built to Last: Heavy-duty steel frame and corrosion-resistant coating.
Easy Mobility: Large wheels and ergonomic handles for quick setup.
Fuel-Saving Tech: Advanced engines reduce consumption by 15% vs. standard models.
Global Support: 26 overseas offices in Africa/Asia ensure prompt service.

Packaging and Delivery

Generator packaging

All units are securely packed in weatherproof crates. Bulk orders ship within 7–14 days via air/sea freight.

About Wuhan Jlmech Co., Ltd.

Generator factory

With 11 branches in China and ISO9001-certified production, we've supplied portable power solutions to 50+ countries since 2005. Our automated assembly lines and 2-year warranty guarantee unmatched quality.

Factory After-Sales Service

24/7 technical support, on-site maintenance, and genuine spare parts are available worldwide.

Certification

Certificate

CE, ISO8528, ISO14001, and GB/T 2820-97 certified.

Exhibitions

Exhibition

We showcase innovations at global trade shows like PowerGen and Bauma.

FAQ

Q: Can the generator operate in extreme temperatures?
A: Yes, open type diesel generator with wheels performs reliably from -20°C to 50°C.

Q: Are custom voltage options available?
A: Absolutely! We offer 220V, 380V, and 480V configurations.

Q: Do you provide leasing options?
A: Yes, flexible payment plans are available for bulk buyers.

Need a Durable Power Partner?

Whether you're powering a mining site or an outdoor event, our open type diesel generator with wheels ensures uninterrupted performance. Contact us at skala@whjlmech.com for quotes or tailored solutions.
