500kva diesel power generator
Voltage: 400/230V
Engine: Perkins 2506C-E15TAG2
Fuel Consumption: ≤211g/kWh
Noise Level: ≤75dB(A) @7m
Alternator: Stamford/Leroy-Somer (IP23 protection)
Dimensions: 3350mm x 1200mm x 2100mm
Weight: 3760kg
Certifications: CE, ISO8528, ISO14001
Starting Method:Electric starting
Customization: OEM/ODM
- Product Description
JLMECH: Your Trusted 500kVA Diesel Power Generator Manufacturer & Supplier
As a leading 500kVA diesel power generator manufacturer, Wuhan Jlmech Co., Ltd. combines 26+ years of engineering expertise with global certifications (CE, ISO9001) and partnerships with brands like Cummins and Perkins. Our generators deliver unmatched reliability, fuel efficiency, and compliance with international standards—perfect for industries demanding uninterrupted power.

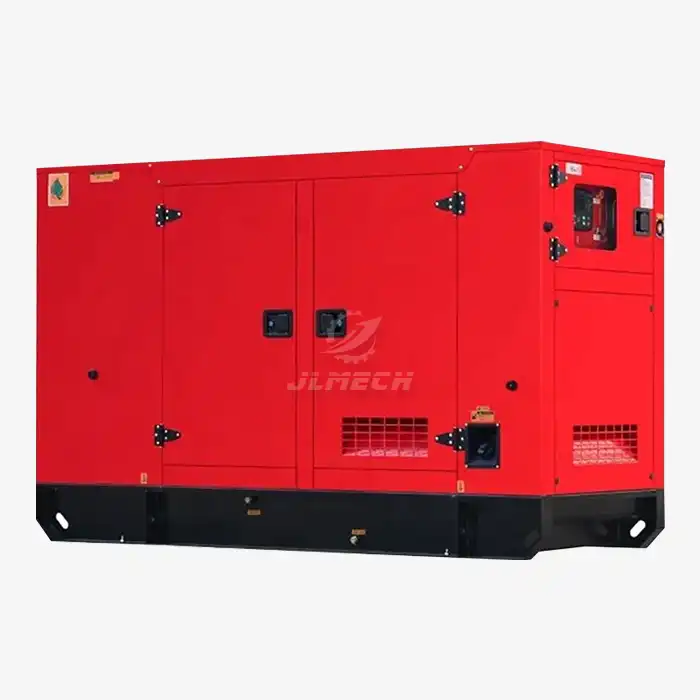

500kVA Diesel Power Generator Description
Designed for heavy-duty operations, our 500kVA diesel power generator ensures seamless power for construction sites, data centers, and remote facilities. Built with a robust Perkins/Volvo engine and smart control panel, it adapts to extreme temperatures, high humidity, and dusty environments.
Specifications
| Model | Powe (KW) | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke (mm) | Displacement (L) | Lube oil (L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-7GF | 7 | 8.75 | 12.6 | 403A-11G1 | 3 | 77*81 | 1.13 | 4.9 | 248 | 1200*700*1100 | 300 |
| JL-10GF | 10 | 2.5 | 18 | 403D-15G | 3 | 84*90 | 149 | 6 | 248 | 1250*700*1100 | 350 |
| JL-16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 2.2 | 10.6 | 237 | 1500*710*1100 | 500 |
| JL-24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 3.3 | 79 | 211 | 1500*750*1100 | 800 |
| JL-50GF | 50 | 62.5 | 90 | 1103A-33TG2 | 3 | 105*127 | 3.3 | 79 | 215 | 1550*750*1180 | 1050 |
| JL-50GF | 50 | 62.5 | 90 | 1104A-44TG1 | 4 | 105*127 | 4.4 | 8 | 208 | 1800*750*1180 | 1100 |
| JL-80GF | 80 | 100 | 144 | 1104D-E44TAG2 | 4 | 105*127 | 4.4 | 8 | 216 | 1950*800*1200 | 1250 |
| JL-120GF | 120 | 150 | 216 | 1106A-70TAG2 | 6 | 105*135 | 7.01 | 16.5 | 208 | 2600*950*1450 | 1450 |
| JL-160GF | 160 | 200 | 288 | 1106A-70TAG4 | 6 | 105*135 | 7.01 | 16.5 | 220 | 2800*950*1450 | 2100 |
| JL-200GF | 200 | 250 | 360 | 1506A-E88TAG3 | 6 | 112*149 | 8.8 | 41 | 200 | 3100*1000*1700 | 2150 |
| JL-240GF | 240 | 300 | 432 | 1506A-E88TAG5 | 6 | 112*149 | 8.8 | 41 | 198 | 3100*1000*1700 | 2150 |
| JL-320GF | 320 | 400 | 576 | 2206C-E13TAG3 | 6 | 130*157 | 12.5 | 40 | 206 | 3350*1200*2000 | 3300 |
| JL-400GF | 400 | 500 | 720 | 2506C-E15TAG2 | 6 | 137*171 | 15.2 | 62 | 211 | 3450*1200*2100 | 3760 |
| JL-480GF | 480 | 600 | 864 | 2806C-E18TAG1A | 6 | 145*183 | 18.1 | 62 | 216 | 4100*1600*2200 | 4600 |
| JL-520GF | 520 | 650 | 936 | 2806A-E18TAG2 | 6 | 145*183 | 18.1 | 62 | 202 | 4200*1600*2200 | 4800 |
Perkins (also known as Rolls-Royce) Engines Limited of the United Kingdom was founded in 1932, with an annual output of nearly 400,000 engines. The overall structure is relatively compact, occupying a small space, which makes it convenient for installation and transportation.
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Global Support: 26 overseas offices in Africa and Southeast Asia for rapid technical assistance.
- Proven Durability: Automated testing lines and a 2-year warranty guarantee performance.
- Custom Solutions: Containerized, soundproof, or hybrid systems available.
- OEM Expertise: Trusted by Cummins, Doosan, and MTU for precision engineering.
Packaging and Delivery
500kVA diesel power generators are crated in anti-rust steel frames and shipped via sea/air freight with real-time tracking.

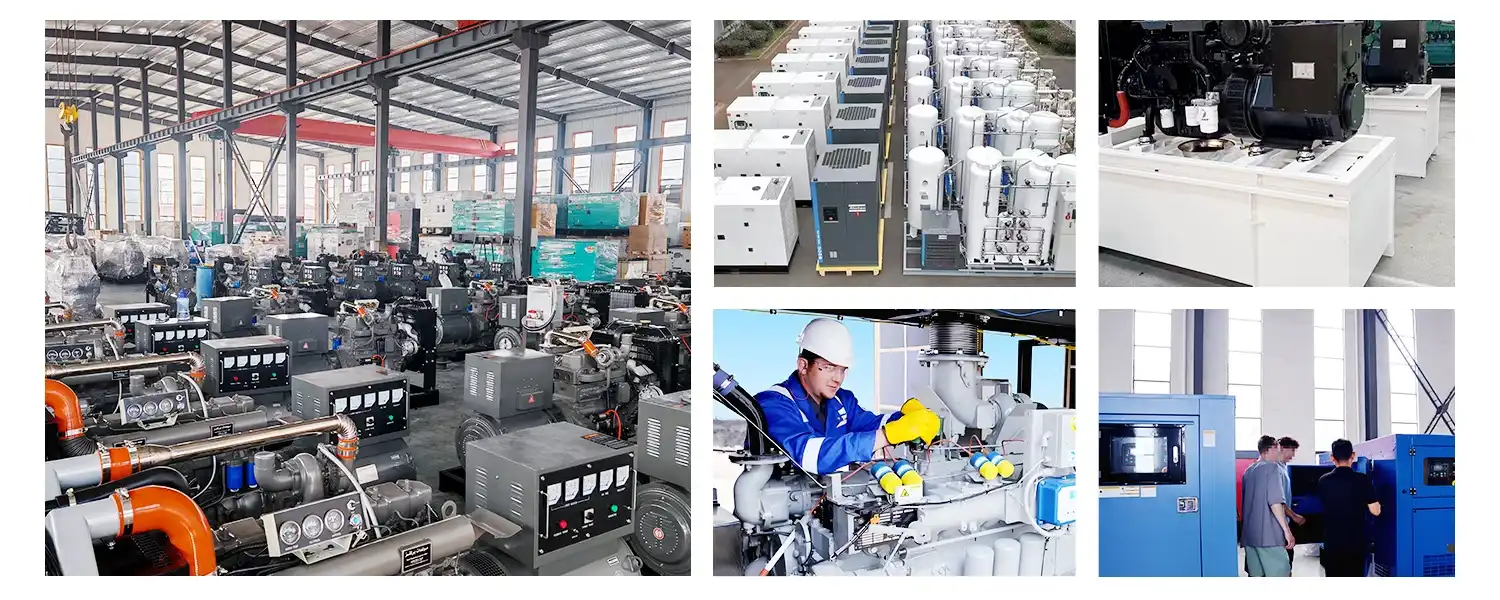

Company Profile
With 3 R&D centers, 126 technical staff, and 11 branches across China, we specialize in industrial power solutions.
Factory After-Sales Service
24/7 support, on-site maintenance, and genuine spare parts ensure minimal downtime.
Certification
CE, GS, ISO8528, ISO9001, and ISO14001 certified.
Exhibitions
Featured at POWERGEN Dubai and Middle East Energy Expo.
FAQ
Q: Can this generator integrate with solar panels?
A: Yes! We offer hybrid configurations for fuel savings.
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on customization.
Q: Do you provide load bank testing?
A: Absolutely—pre-delivery testing is standard.
Q: How do I maintain the generator?
A: Remote monitoring and annual service packages are available.
