60 kva diesel generator
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open FrameEngine
Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH: Your Trusted 60 kVA Diesel Generator Manufacturer & Supplier
As a leading 60 kVA diesel generator manufacturer, Wuhan Jlmech Co., Ltd. combines cutting-edge R&D, ISO-certified production, and global OEM expertise. With 3 R&D centers, 26 overseas offices, and a 2-year warranty, we deliver industrial-grade reliability for construction, mining, and disaster recovery sectors.
60 kVA Diesel Generator Description

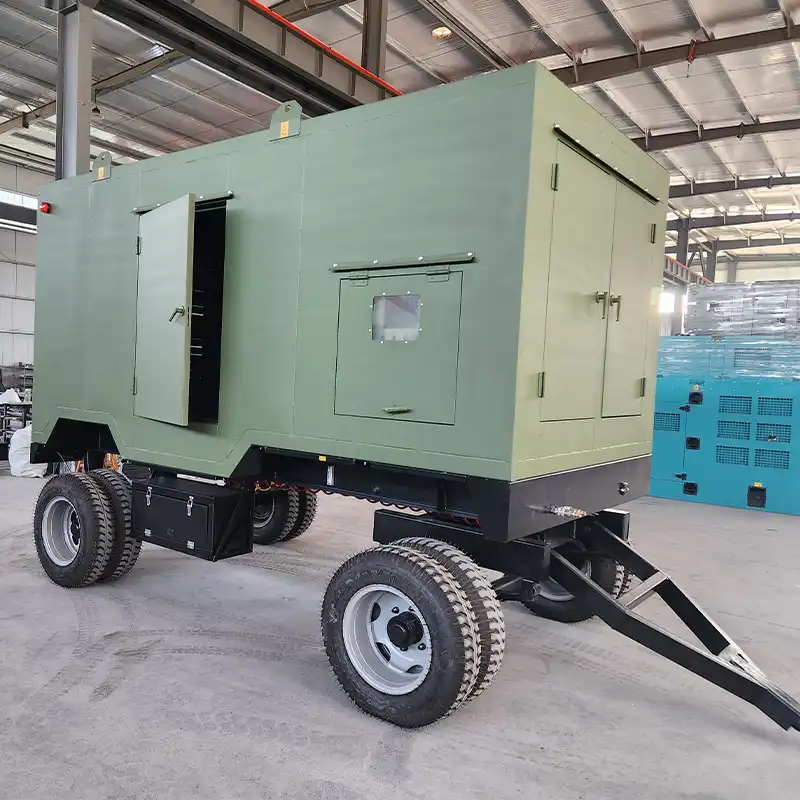

Our 60 kVA diesel generator is engineered for high-performance operations in harsh environments. Built with a fuel-efficient engine and advanced noise reduction (≤75 dB), it ensures seamless power for construction sites, data centers, and remote projects. The compact, mobile design simplifies deployment, while Tier 4-compliant emissions meet global sustainability standards.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore × Stroke (mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Durability: Reinforced steel frame and corrosion-resistant coating for 10,000+ hours of operation.
- Cost Efficiency: 15% lower fuel consumption vs. industry averages, reducing TCO.
- Global Compliance: CE, ISO8528, and GB/T 2820-97 certified for international markets.
- 24/7 Support: On-call engineers in Africa and Southeast Asia for rapid troubleshooting.
Packaging and Delivery
60 kVA diesel generators are crated in weatherproof wooden frames with anti-vibration padding. We handle customs clearance and door-to-door delivery for bulk orders.
Company Profile

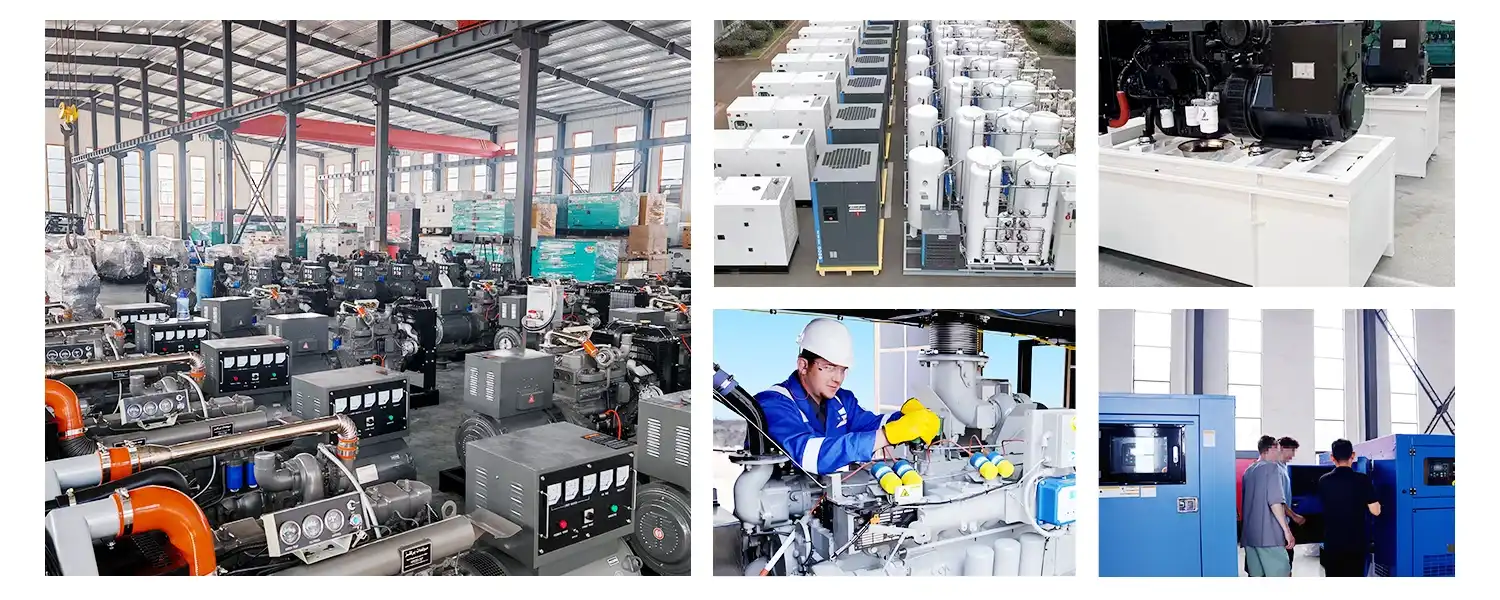

Wuhan Jlmech Co., Ltd. operates 11 branches in China and serves as an OEM partner for Cummins, Perkins, and MTU. Our automated production lines and 126 technical experts ensure precision at every stage.
Factory After-Sales Service
Enjoy a 2-year warranty, lifetime maintenance guidance, and access to genuine spare parts within 72 hours.
Certification
Our products meet CE, GS, ISO9001, and ISO14001 standards.
Exhibitions
We showcase innovations at global trade fairs like Bauma China and PowerGen Africa.
FAQ
Q: Can the generator be customized for extreme climates?
A: Yes! We offer tropicalized cooling systems and Arctic-grade cold-start kits.
Q: What's the lead time for 20 units?
A: 30–45 days, including testing and documentation.
Q: Do you provide financing options?
A: Flexible terms include leasing, bulk discounts, and staggered payments.
Power Your Projects with Confidence
When reliability matters, Wuhan Jlmech's 60 kVA diesel generator delivers unmatched performance and support. Contact us at skala@whjlmech.com to discuss your bulk order needs today!
