diesel generator gensets

AC Output(KW)：20-3000KW
Engine model：Weichai
Rated AC Voltage(V):400/230
Frequency(HZ):50
Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Cooling Method: Water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
Fuel Efficiency: Optimized consumption with smart throttle control
Noise Level: As low as 65 dB(A) for urban compliance
Design: Vibration-dampened frames, corrosion-resistant coatings

Product Description

JLMECH：Your Trusted Diesel Generator Gensets Manufacturer & Supplier

Wuhan Jlmech Co., Ltd. is a trusted manufacturer and supplier of diesel generator gensets, combining 26 years of engineering expertise with global certifications (CE, ISO, GB/T). With 3 R&D centers, partnerships with brands like Cummins and Perkins, and a 2-year warranty, our gensets deliver unmatched reliability for industries prioritizing operational continuity.

Diesel Generator Gensets Description

Our diesel generator gensets are engineered to support critical operations in construction, healthcare, manufacturing, and telecom. Built with robust components and advanced cooling systems, they ensure uninterrupted power in extreme conditions—from scorching deserts to freezing sites. Customizable options include silent enclosures, hybrid fuel systems, and containerized units for easy deployment.

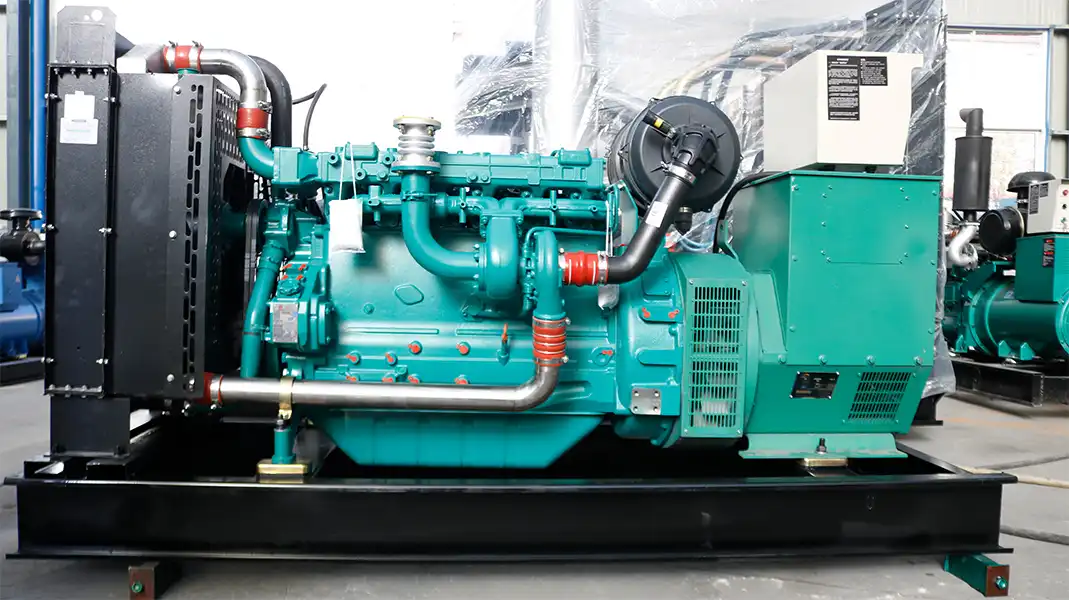

weichai WP6D132E200

Specifications

Model	Power (KW)	Power (KVA)	Current (A)	Engine model	Cylinder	Bore*Stroke (mm)	Displacement (L)	Lube oil (L)	Consumption (g/kw.h)
JL-20GF	20	25	36	WP2.3D25E200	4	89*92	2.289	8	224
JL-30GF	30	37.5	54	WP2.3D33E200	4	89*92	2.289	8	212
JL-60GF	60	75	108	WP4.1D66E200	4	105*118	4.087	13	235
JL-70GF	70	87.5	126	WP4.1D80E200	4	105*118	4.087	13	235
JL-80GF	80	100	144	WP4.1D100E200	4	105*130	4.5	10	203
JL-90GF	90	112.5	162	WP4D100E200	4	105*118	4.5	13	201
JL-120GF	120	150	216	WP60132E200	6	105*130	6.75	18	205
JL-180GF	180	225	324	WP10D200E200	6	126*130	9.726	24	215
JL-200GF	200	250	360	WP10D238E200	6	126*130	9.726	24	215
JL-280GF	280	350	504	WP10D320E200	6	126*130	9.726	24	210
JL-350GF	350	437.5	630	WP13D385E200	6	127*165	12.54	36	210
JL-350GF	350	437.5	630	WP13D405E200	6	127*165	12.54	36	200
JL-400GF	400	500	720	6M26D447E200	6	150*150	15.9	52	197
JL-500GF	500	625	900	6M33D572E200	6	150*185	19.6	61	210
JL-600GF	600	750	1080	6M33D670E200	6	150*185	19.6	61	210
JL-800GF	800	1000	1440	12M260902E200	12	150*150	31.8	109	210
JL-1000GF	1000	1250	1800	12M33D1108E200	12	150*185	39.2	155	210
JL-1500GF	1500	1875	2700	16M33D1680E310	16	150*185	52.3	171	216
JL-1800GF	1800	2250	3240	12M55D2020E310	12	180*215	65.65	480	199
JL-2000GF	2000	2500	3600	12M55D2210E310	12	180*215	65.65	480	202
JL-2200GF	2200	2750	3960	12M55D2450E310	12	180*215	65.65	480	203

The power range of Weichai generator sets is from 20 KW to 3000 KW. The generator sets use engines independently developed and produced by Weichai Group, and are equipped with generators and controllers of well-known brands.

The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid response.
Technical Expertise: 126 engineers, including 27 senior specialists, oversee R&D and quality.
Proven Partnerships: OEM collaborator for Cummins, MTU, and Liebherr.
Certified Quality: CE, ISO8528, and ISO14001 certifications guarantee compliance.

Packaging and Delivery

Generator packaging

Diesel generator gensets are securely crated or containerized, with shock-resistant packaging. We ship globally via air, sea, or land, ensuring timely delivery to your project site.

Company Profile

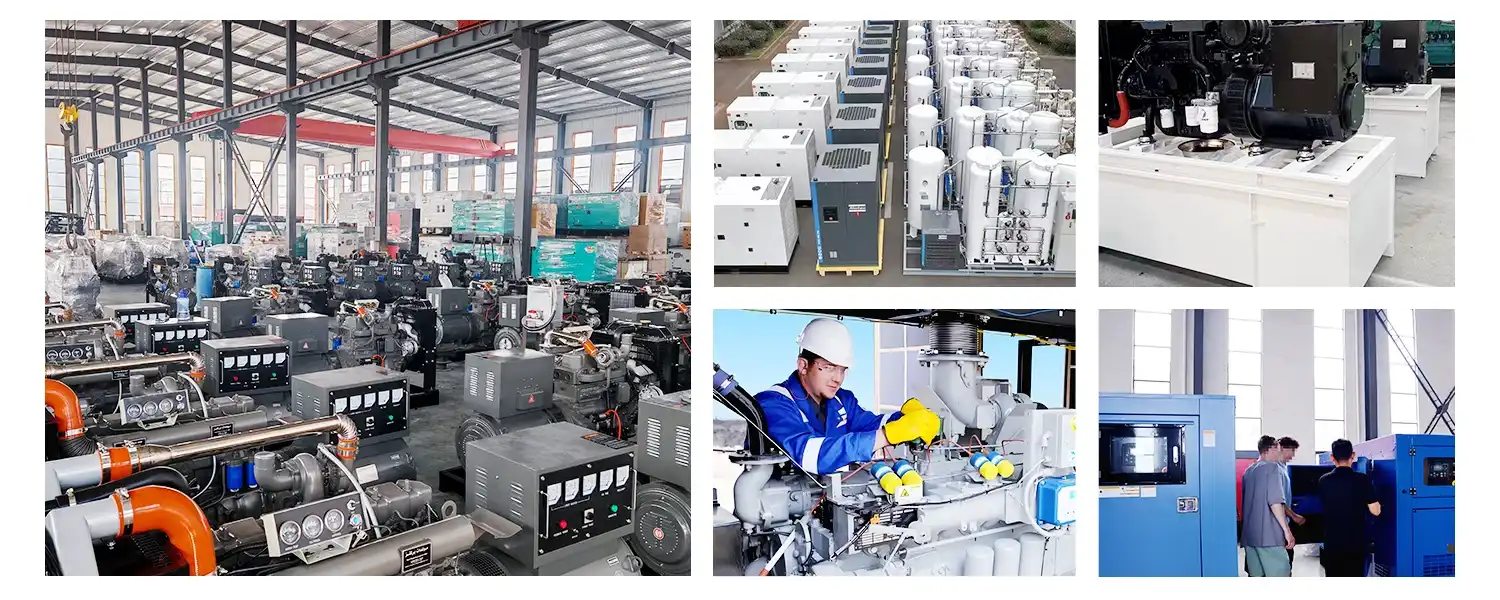

Generator factory

Wuhan Jlmech operates 11 branches across China and 3 R&D hubs, supported by 52 engineers specializing in energy solutions. Our automated production lines and 2-year warranty reflect our commitment to innovation and durability.

Factory After-Sales Service

Enjoy 24/7 technical support, on-site maintenance, and a global spare parts network. Our team minimizes downtime, keeping your operations running smoothly.

Certification

Certificate

Certified to CE, CSA, UL, ISO9001, and ISO14001 standards, our gensets meet stringent safety and performance benchmarks.

Exhibitions

Exhibition

We showcase innovations at global trade shows like PowerGen Asia and Middle East Energy.

FAQ

Q: Can gensets be customized for tropical climates?
A: Yes! We offer enhanced cooling and anti-corrosion coatings for high-humidity regions.

Q: What's the lead time for bulk orders?
A: Typically 4–8 weeks, depending on specifications.

Q: Do your gensets comply with EU noise regulations?
A: Absolutely. Silent models meet 75 dB(A) limits for urban use.

Contact us

Need a Quote? Contact us at skala@whjlmech.com for tailored diesel generator gensets that align with your project's demands. Let's power your success!
