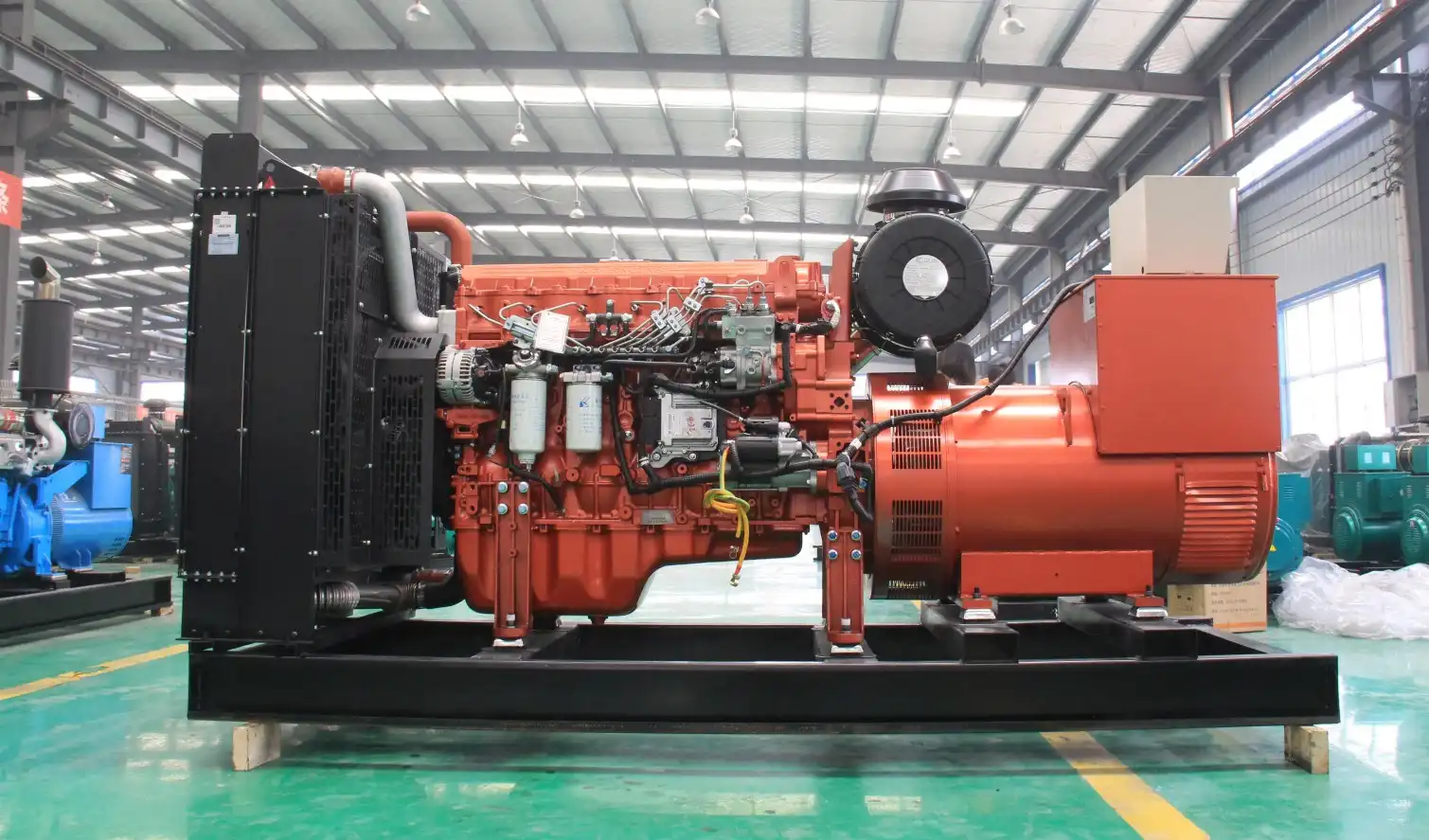

water cooled power diesel generator

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Water Cooled Power Diesel Generator Manufacturer & Supplier

As a leading water cooled power diesel generator manufacturer, Wuhan Jlmech combines 27+ years of engineering expertise with global certifications (CE, ISO9001, ISO14001). Our generators excel in durability, fuel efficiency, and compliance, backed by 126 technical experts and a 2-year warranty. Trusted by Cummins, Perkins, and MTU as an OEM partner, we deliver power solutions that keep industries running.

Water Cooled Power Diesel Generator Description

Our water cooled power diesel generators are built to thrive in harsh environments like mining sites, data centers, and offshore platforms. Designed for 24/7 operation, they feature:

Robust Cooling Systems: Superior heat dissipation for continuous high-load performance.
Fuel Efficiency: Advanced engines reduce operational costs by up to 15%.
Low Emissions: Meet EPA Tier 4 and EU Stage V standards for eco-friendly operations.
Noise Reduction: Ideal for urban hospitals or event venues requiring quiet power.

water cooled power diesel generator

Specifications

Model	Power (KW)	Power (KVA)	Current( A)	Engine model	Cylinder	Bore×Stroke（mm）	Displacement (L)	Lube oil (L)	Consumption (g/kw.h)	Size (mm)	Weight (Kg)
JL-50GF	50.0	62.5	90	YCD4J22D-65	4	105*125	4.33	11	225	18008001100	940
JL-100GF	100	125	180	YC68155L-D21	6	108*125	6.B7	20	196	25008001250	1500
JL-120GF	120	150	216	YC68180L-D20	6	108*125	6.87	20	196	25008301300	1600
JL-132GF	132	165	237.6	YC6B205L-D20	6	108*125	6.87	20	196	25008501300	1700
JL-150GF	150.0	187.5	270	YC6A230L-D20	6	108*132	7.26	21	195	25509001350	2100
JL-160GF	160	200	288	YC6A245L-D21	6	108*132	7.26	21	195	25009701500	2300
JL-180GF	180	225	324	YC6MK285L-D20	6	123*145	10.33	28	195	30001030*1550	2600
JL-300GF	300	375	540	YC6MJ48DL-D20	6	131*145	11.73	28	215	3100*11501750	3100
JL-400GF	400	500	720	YC6T600L-D22	6	145*165	16.35	52	195	350013501780	3900
JL-600GF	600	750	1080	YC6ID900-D31	6	152*180	19.6	52	225	375016502000	4500
JL-700GF	700	875	1260	YC6C1070-D31	6	200*210	39.58	180	220	420016502100	5800
JL-800GF	800	1000	1440	YC6C1220-D31	6	200*210	39.58	180	220	460018002600	8000
JL-1000GF	1000	1250	1800	YC6C1520-D31	6	200*210	39.58	180	220	520021502600	9800
JL-1100GF	1100	1375	1980	YC12VC1680-D31	12	200*210	79.17	280	210	540021502600	9900
JL-1200GF	1200	1500	2160	YC12VC2070-D31	12	200*210	79.17	280	210	540023002600	9000
JL-1320GF	1320	1650	2376	YC12VC2070-D31	12	200*210	79.17	280	210	540023002600	10000
JL-2000GF	2000	2500	3600	YC16VC3000-D31	16	200*210	105.6	430	196	735026702950	17500
JL-2200GF	2200	2750	3960	YC16VC3300-D31	16	200*210	105.6	430	196	735026702950	17580
JL-2400GF	2400	3000	4320	YC16VC3600-D31	16	200*210	105.6	430	196	740031003300	19200

The rotational speed in the above Yuchai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid response.
OEM-Grade Quality: Components tested in our automated facilities match global brands like Doosan and MAN.
Customization: Tailor voltage, cooling, and control panels to your project's needs.
Cost Savings: Energy-efficient designs lower TCO (Total Cost of Ownership).

Packaging and Delivery

Generator packaging

Generators are securely crated with anti-corrosion coatings and shipped globally via trusted logistics partners.

Company Profile

Generator factory

With 3 R&D centers, 11 branches across China, and a team of 52 engineers, Wuhan Jlmech has powered industries in 30+ countries since 1996.

Factory After-Sales Service

Enjoy a 2-year warranty, 24/7 technical support, and access to OEM-compatible spare parts within 48 hours.

Certification

Certificate

CE, GS, ISO9001, ISO14001, ISO8528, and GB/T 2820-97 certified.

Exhibitions

Exhibition

We showcase innovations at POWERGEN, Middle East Energy, and regional trade shows.

FAQ

Q: Can your generators withstand extreme temperatures?
A: Yes! Our water cooled power diesel generator operate in -20°C to 55°C environments.

Q: Do you provide installation support?
A: Our engineers assist with setup, including load testing and compliance checks.

Q: What's the lead time for bulk orders?
A: 4–6 weeks for 10+ units, with priority scheduling for urgent projects.

Trusted by Global Industries. Built for Your Success.

When reliability matters, choose Wuhan Jlmech's water cooled power diesel generator – where innovation meets endurance. Contact us at skala@whjlmech.com to discuss your project's needs.
