silent diesel generators 200kva

Power Output: 200kVA (160kW)
Rated AC Voltage(V)：220V/380V/400V
Frequency(HZ):50HZ
Phase:Three phase
Type:Silent/Open Frame
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Noise Level: ≤68 dB at 7 meters
Fuel Consumption: 40 L/hr (at 75% load)
Engine: 6-cylinder turbocharged diesel engine
Dimensions: 2800 x 950 x 1450 mm (LxWxH)
Certifications: CE, ISO8528, GB/T 2820-97

Product Description

JLMECH: Your Trusted Silent Diesel Generators 200kVA Manufacturer & Supplier

As a leading silent diesel generators 200kva manufacturer, Wuhan Jlmech Co., Ltd. combines cutting-edge engineering with 20+ years of expertise. Our generators deliver unmatched noise reduction (≤68 dB), fuel efficiency, and compliance with global standards like CE and ISO. With 3 R&D centers and 52+ engineers, we ensure every unit meets rigorous performance and durability benchmarks.

Silent Diesel Generators 200kVA Description

Designed for industries requiring uninterrupted power, our silent diesel generators 200kva operates at ≤68 dB—ideal for hospitals, construction sites, and urban facilities. The soundproof canopy features anti-vibration mounts and advanced airflow design, ensuring quiet operation without compromising performance. Built with a heavy-duty engine and smart control panel, it supports automatic start/stop and real-time diagnostics.

silent diesel generators 200kva

Specifications

Model	Powe (KW)	Power (KVA)	Current (A)	Engine model	Cylinder	Bore*Stroke (mm)	Displacement (L)	Lube oil (L)	Consumption (g/kw.h)	Size (mm)	Weight (Kg)
JL-7GF	7	8.75	12.6	403A-11G1	3	77*81	1.13	4.9	248	12007001100	300
JL-8GF	8	10	14.4	403D-11G	3	77*81	1.13	49	252	12007001100	300
JL-10GF	10	2.5	18	403D-15G	3	84*90	149	6	248	12507001100	350
JL-11GF	11	13.75	19.8	403A-15G1	3	84*90	1.49	6.5	248	12507001100	350
JL-12GF	12	15	21.6	403A-15G2	3	84*90	1.49	6	250	12507001100	350
JL-16GF	16	20	28.8	404A-22G1	4	84*100	2.2	10.6	237	15007101100	500
JL-16GF	16	20	28.8	404D-22G	4	84*100	2.2	10.6	237	15007101100	500
JL-24GF	24	30	43.2	1103A-33G	3	105*127	3.3	79	211	15007501100	800
JL-36GF	36	45	64.8	1103A-33TG1	3	105*127	3.3	7.9	211	15507501180	920
JL-50GF	50	62.5	90	1104A-44TG1	4	105*127	4.4	8	208	18007501180	1100
JL-80GF	80	100	144	1104D-E44TAG2	4	105*127	4.4	8	216	19508001200	1250
JL-110GF	110	137.5	198	1106A-70TG1	6	105*135	7.01	18	199	25009501450	1350
JL-120GF	120	150	216	1106A-70TAG2	6	105*135	7.01	16.5	208	26009501450	1450
JL-160GF	160	200	288	1106A-70TAG4	6	105*135	7.01	16.5	220	28009501450	2100

The rotational speed in the above Perkins Diesel Generator technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose Our 200kVA Silent Diesel Generators?

Reliability First: Tested for 500+ hours under extreme conditions.
Technical Expertise: 27 senior engineers oversee design and QA.
Global OEM Experience: Trusted by Cummins, Perkins, and MTU.
24/7 Support: 26 overseas offices in Africa and Southeast Asia.

Packaging and Delivery

Generator packaging

Silent diesel generators 200kva are crated in weatherproof wooden frames with anti-rust coatings. Global shipping via sea/air freight, with door-to-door delivery options.

About Wuhan Jlmech Co., Ltd.

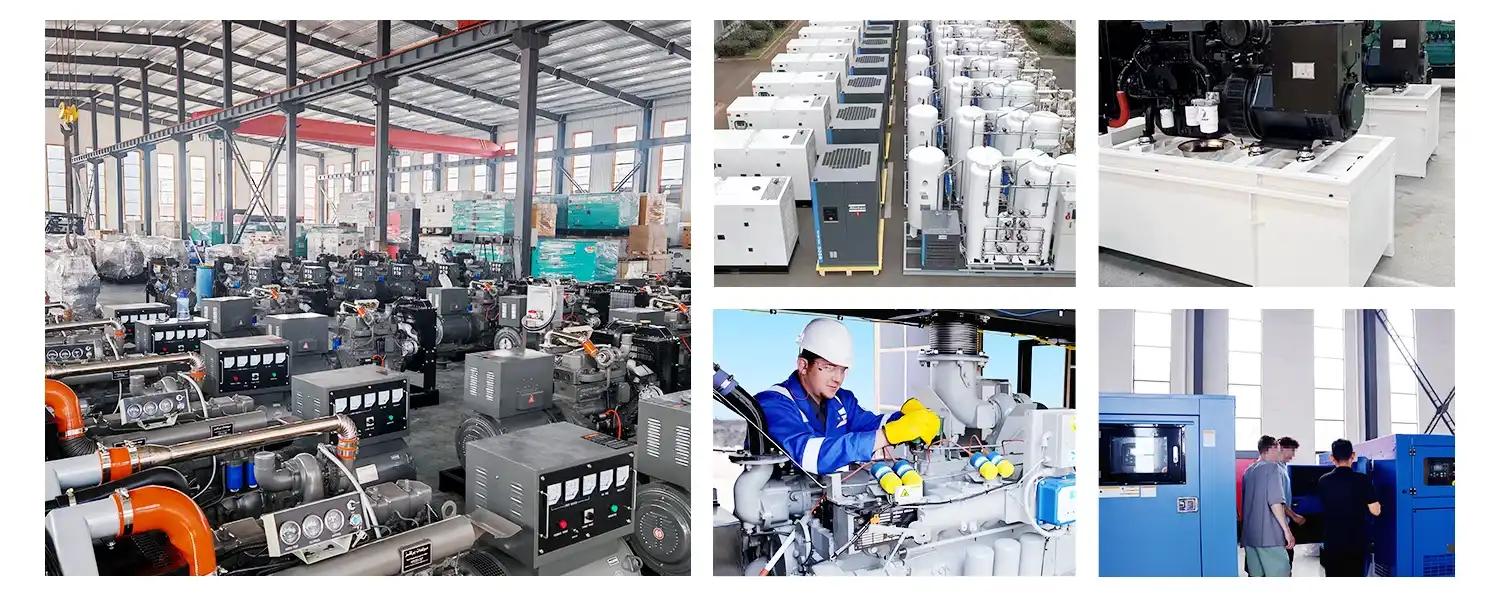

Generator factory

With 3 R&D centers, 126 technical staff, and 11 branches across China, we serve 50+ countries. Our 20,000㎡ factory features automated assembly lines and rigorous testing systems.

Factory After-Sales Service

All units include a 2-year warranty, with spare parts available globally. Custom maintenance contracts and emergency support are offered.

Certification

Certificate

Compliant with CE, ISO9001, ISO14001, and ISO8528 standards.

Exhibitions

Exhibition

We regularly showcase innovations at global trade shows like Canton Fair and POWER-GEN Asia.

FAQ

Q: What's the noise level of your 200kVA silent diesel generator?
A: ≤68 dB—quieter than a vacuum cleaner.

Q: Can it run continuously for 24 hours?
A: Yes, with optimized cooling systems and fuel efficiency.

Q: Are parallel systems supported?
A: Absolutely. Scalable for higher power needs.

Q: Do you customize for tropical climates?
A: Yes, enhanced cooling and corrosion-resistant coatings are optional.

Need a Reliable Generator?

Contact us at skala@whjlmech.com for silent diesel generators 200kva quote., technical specs, or partnership opportunities. Let's power your success with Wuhan Jlmech's trusted solutions.
