24kw 30kva silent diesel generator set
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
Engine Type: 4-Cylinder, Water-Cooled Diesel
Noise Level: ≤75 dB(A) at 7 meters
Fuel Consumption: 6.5 L/hr at 75% load
Voltage Output: 220/380V, 50Hz (Customizable)
Dimensions: 1800mm x 900mm x 1270mm (LxWxH)
Weight: 755kg
- Product Description
JLMECH：Your Trusted 24kW 30kVA Silent Diesel Generator Set Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. specializes in manufacturing premium 24kW 30kVA silent diesel generator sets, combining advanced engineering, low-noise operation, and compliance with global standards. With over 26 overseas offices and partnerships with top brands like Cummins and Perkins, our generators deliver unmatched reliability for construction, healthcare, telecom, and off-grid operations.

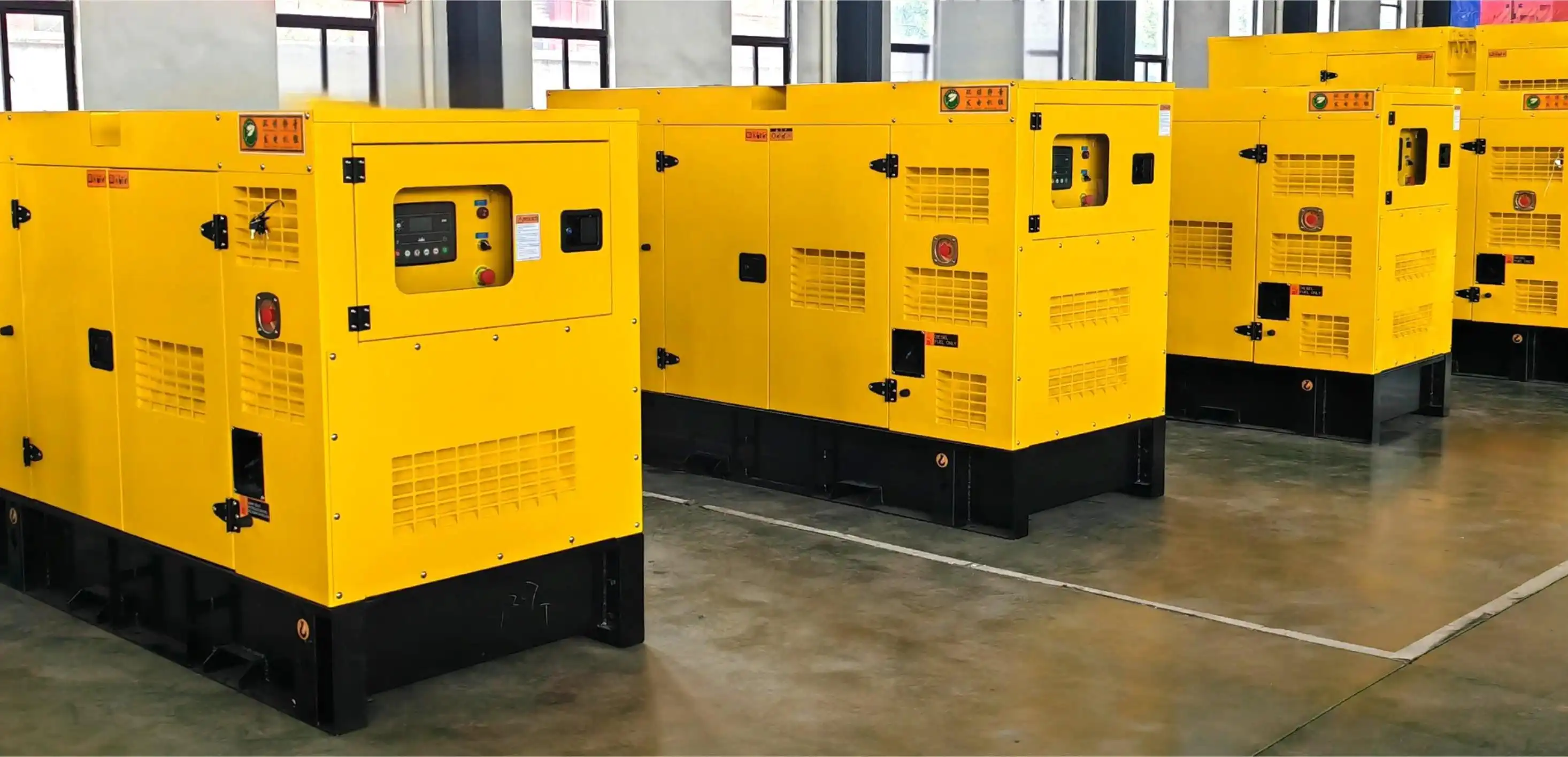

24kW 30kVA Silent Diesel Generator Set Description
Our 24kW 30kVA silent diesel generator set is designed for businesses requiring dependable, quiet power in noise-sensitive environments. Featuring a robust soundproof enclosure, it operates at just 65-75 dB, making it ideal for urban projects, hospitals, and events. The unit supports both prime and standby power needs, with fuel-efficient performance and easy integration into existing systems.
Specifications
| Model | Power （KW） | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke(mm) | Displacement(L) | Lube oil(L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-20GF | 24 | 30 | 36 | WP2.3D25E200 | 4 | 89*92 | 2.289 | 8 | 224 | 1800*900*1270 | 755 |
| JL-30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 89*92 | 2.289 | 8 | 212 | 1800*900*1300 | 800 |
| JL-36GF | 36 | 45 | 65 | WP2.3D40E200 | 4 | 89*92 | 2.289 | 8 | 216 | 1800*900*1300 | 800 |
| JL-40GF | 40 | 50 | 72 | WP2.3D48E200 | 4 | 89*92 | 2.3 | 8 | 220 | 1800*900*1300 | 800 |
| JL-60GF | 60 | 75 | 108 | WP4D66E200 | 4 | 105*130 | 4.5 | 10 | 208 | 1950*920*1340 | 1100 |
| JL-60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1950*920*1340 | 1100 |
| JL-70GF | 70 | 87.5 | 126 | WP4.1D80E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1850*700*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | WP4.1D100E200 | 4 | 105*130 | 4.5 | 10 | 203 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D100E200 | 4 | 105*118 | 4.5 | 13 | 201 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D108E200 | 4 | 105*130 | 4.5 | 10 | 205 | 2200*820*1340 | 1250 |
| JL-120GF | 120 | 150 | 216 | WP60132E200 | 6 | 105*130 | 6.75 | 18 | 205 | 2470*830*1450 | 1350 |
The rotational speed in the above Weichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Expertise: 52 engineers and 27 senior engineers across 3 R&D centers ensure cutting-edge innovation.
- Global Compliance: CE, ISO8528, and EPA Tier 3 certifications guarantee quality and environmental safety.
- Proven Performance: Trusted OEM partner for Cummins, Perkins, and MTU.
- Warranty: 2-year coverage for mechanical and electrical components.
Packaging and Delivery
All units are securely packaged in weatherproof crates with anti-corrosion treatment. We offer flexible logistics solutions, including sea freight and expedited air delivery for urgent orders.
Company Profile
With 11 branches in China and 26 overseas offices, Wuhan Jlmech has served industries in Africa, Southeast Asia, and beyond since 2005. Our state-of-the-art facilities include automated assembly lines and rigorous testing processes.
Factory After-Sales Service
Our global service network provides 24/7 technical support, on-site maintenance, and genuine spare parts. Training programs for onsite staff ensure smooth operation.
Certification
Our products meet CE, GS, ISO8528, and GB/T 2820-97 standards, with ISO9001 and ISO14001-certified management systems.
Exhibitions
We regularly showcase innovations at international trade fairs like Canton Fair and POWER-GEN Asia.
FAQ
Q: What's the noise level of your 24kW 30kVA silent diesel generator set?
A: It operates at 65-75 dB, quieter than standard models, perfect for hospitals and residential areas.
Q: Can I customize voltage or fuel tank size?
A: Yes! We offer tailored solutions for voltage, fuel capacity, and portability.
Q: Do you provide bulk order discounts?
A: Absolutely. Contact us at mayucheng188@aliyun.com for volume pricing and delivery timelines.
Need a Silent Power Partner?
Whether you're powering a remote mine or safeguarding a data center, our 24kW 30kVA silent diesel generator set ensures uninterrupted performance. Trust Wuhan Jlmech's 18+ years of expertise and global service network.Contact us today at skala@whjlmech.com to discuss your project needs!
