3 phase diesel power generator

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH: Your Trusted 3 Phase Diesel Power Generator Manufacturer & Supplier

Wuhan Jlmech Co., Ltd. specializes in manufacturing high-performance 3 phase diesel power generators for industries demanding reliable, scalable power. With 3 R&D centers, 126 technical experts, and 26 global offices, we deliver rugged, fuel-efficient generators certified to CE, ISO8528, and GB/T 2820-97 standards. As an OEM partner for Cummins, Perkins, and MTU, we combine innovation with proven engineering to keep your operations running smoothly.

3 Phase Diesel Power Generator Description

Ideal for construction sites, hospitals, data centers, and remote facilities, our 3 phase diesel power generator provide uninterrupted three-phase power. Engineered with advanced voltage regulation and noise-reduction technology (65-75 dB), they handle harsh environments while meeting EU Stage V emissions. Choose from 50kVA to 2000kVA models, with optional weatherproof or silent canopies for site-specific needs.

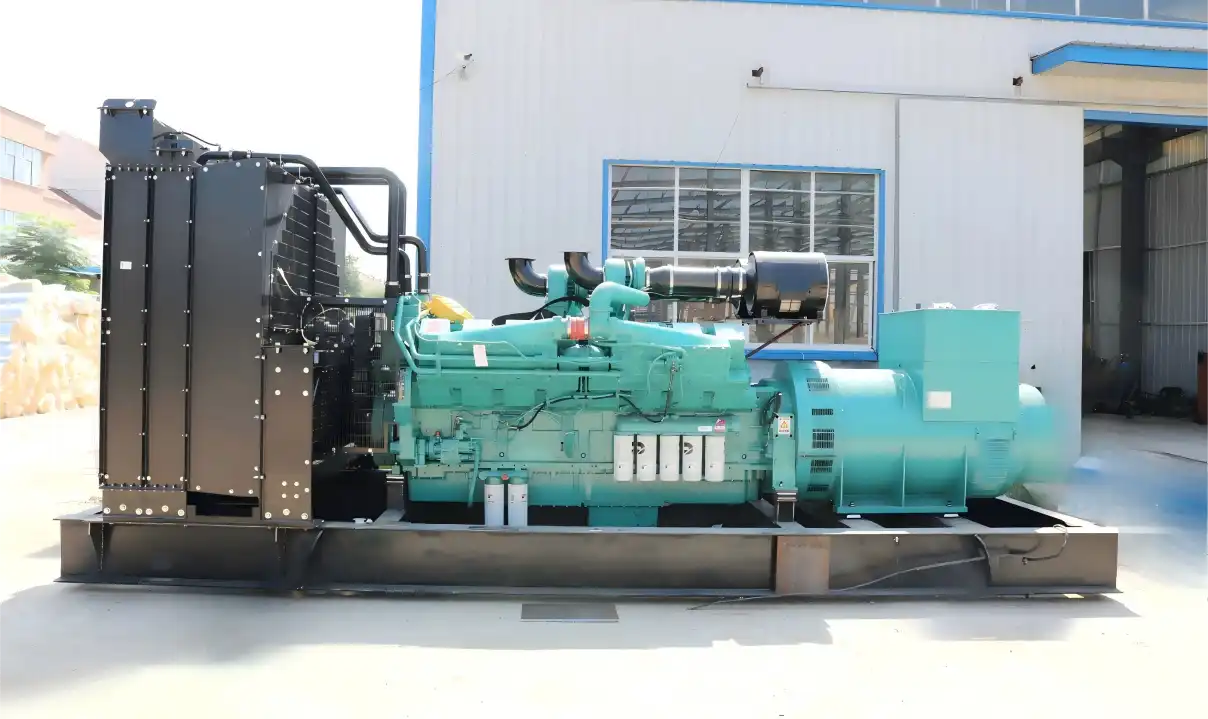

3 phase diesel power generator

Specifications

Model	Power （KW）	Power (KVA)	Current (A)	Engine model	Cylinder	Bore*Stroke(mm)	Displacement(L)	Lube oil(L)	Consumption (g/kw.h)	Size (mm)	Weight (Kg)
JL-20GF	20	25	36	WP2.3D25E200	4	89*92	2.289	8	224	18009001270	755
JL-30GF	30	37.5	54	WP2.3D33E200	4	89*92	2.289	8	212	18009001300	800
JL-36GF	36	45	65	WP2.3D40E200	4	89*92	2.289	8	216	18009001300	800
JL-40GF	40	50	72	WP2.3D48E200	4	89*92	2.3	8	220	18009001300	800
JL-60GF	60	75	108	WP4.1D66E200	4	105*118	4.087	13	235	19509201340	1100
JL-70GF	70	87.5	126	WP4.1D80E200	4	105*118	4.087	13	235	18507001200	1000
JL-90GF	90	112.5	162	WP4D100E200	4	105*118	4.5	13	201	22008001340	1250
JL-90GF	90	112.5	162	WP4D108E200	4	105*130	4.5	10	205	22008201340	1250
JL-150GF	150	87.5	270	WP60167E200	6	105*130	6.75	18	201	25509501300	1430
JL-180GF	180	225	324	WP10D200E200	6	126*130	9.726	24	215	275010501400	1880
JL-200GF	200	250	360	WP10D238E200	6	126*130	9.726	24	215	275010501500	2100
JL-280GF	280	350	504	WP12D317E200	6	125*155	11.596	24	210	290012001800	2300
JL-400GF	400	500	720	6M26D447E200	6	150*150	15.9	52	197	350015001800	4000
JL-500GF	500	625	900	6M33D572E200	6	150*185	19.6	61	210	360015001850	5000
JL-600GF	600	750	1080	6M33D670E200	6	150*185	19.6	61	210	365015001900	6000
JL-800GF	800	1000	1440	12M260902E200	12	150*150	31.8	109	210	450018502200	8000
JL-1000GF	1000	1250	1800	12M33D1108E200	12	150*185	39.2	155	210	480020002350	9200
JL-1100GF	1100	1375	1980	12M33D1210E200	12	150*185	39.2	155	210	480020002350	9300
JL-1200GF	1200	1500	2160	12M33D1320E200	12	150*185	39.2	155	210	480020502450	9800
JL-1500GF	1500	1875	2700	16M33D1680E310	16	150*185	52.3	171	216	520025002700	11900
JL-1800GF	1800	2250	3240	12M55D2020E310	12	180*215	65.65	480	199	610023502800	16900
JL-2200GF	2200	2750	3960	12M55D2450E310	12	180*215	65.65	480	203	610023502800	17500

The rotational speed in the aboveWeichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Power Output: 50kVA–2000kVA
Voltage: 400V/415V (±2% stability)
Fuel Consumption: 0.3L/kWh (optimized for cost efficiency)
Noise Level: 65–75 dB(A) at 7m
Compliance: CE, ISO8528, EPA Tier 4 Final
Warranty: 2 years (mechanical + electrical)

Customizable features include extended fuel tanks, automatic transfer switches, and remote monitoring.

Why Choose US?

Global Support: 26 overseas offices ensure spare parts and technicians are nearby.
OEM Expertise: Trusted by Cummins, Perkins, and MTU for precision engineering.
Rapid Delivery: Pre-tested units ship globally within 15–30 days.
Lifetime Cost Savings: High fuel efficiency and low maintenance reduce downtime.

Packaging and Delivery

3 phase diesel power generators are crated in anti-corrosion frames and shipped via air/sea freight with real-time tracking.

About Wuhan Jlmech Co., Ltd.

Generator factory

With 11 branches in China and ISO 9001-certified management, we've powered industries since 2005. Our 52-engineer team designs solutions for mining, agriculture, telecom, and disaster response.

Factory After-Sales Service

Enjoy a 2-year warranty, 24/7 technical support, and on-site maintenance contracts.

Certification

Certificate

Compliant with CE, ISO8528, ISO9001, and ISO14001.

Exhibitions

Featured at PowerGen Asia, Bauma China, and Africa Energy Forum.

FAQ

Q: Can you customize generators for extreme climates?
A: Yes! We design units with tropical cooling or arctic-grade insulation.

Q: What's the lead time for bulk orders?
A: 15–30 days, depending on customization.

Q: Do your generators comply with EU emissions?
A: Absolutely. All units meet EU Stage V and EPA standards.

Q: Can you integrate solar hybrid systems?
A: We offer diesel-solar hybrids for eco-conscious markets.

Power Your Future with Wuhan Jlmech

Whether you're reinforcing grids in Africa or safeguarding a data center, our 3 phase diesel power generators deliver unmatched reliability. Contact us at skala@whjlmech.com to discuss your project. Let's engineer continuity, together.
