diesel power generator set
Rated AC Voltage(V)：110V/220V/380V/400V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Fuel Efficiency: Up to 30% savings with smart load optimization.
Noise Levels: As low as 65 dB(A) with soundproof enclosures.
Compliance: CE, ISO8528, GB/T 2820-97
Optional Features: Remote monitoring, auto-start/stop, and trailer/container mounting.
- Product Description
JLMCH-Your Trusted Partner in Diesel Power Generator Set
For over 29 years, Wuhan Jlmech has specialized in designing durable, fuel-efficient diesel power generator sets for industries worldwide. With 3 R&D centers, 126 technical experts, and ISO9001-certified manufacturing, we deliver CE/GS-compliant generators trusted by Cummins, Perkins, and other global brands.
Diesel Power Generator Set Description

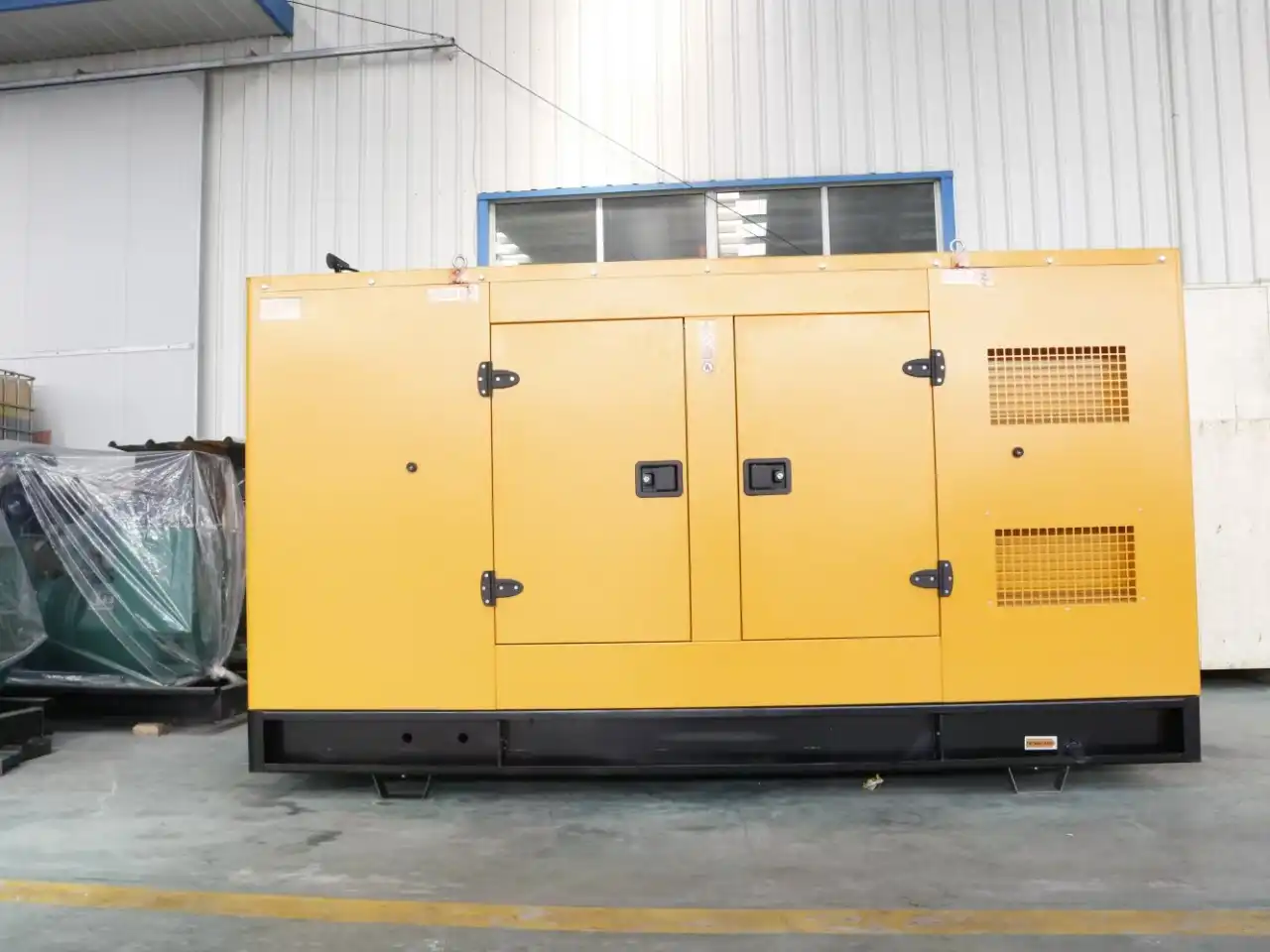

Our diesel power generator sets are engineered for reliability in demanding environments. Whether you need backup power for hospitals, primary energy for mining operations, or hybrid-ready solutions, our units combine high fuel efficiency, low noise levels (65-75 dB), and compliance with ISO8528 and Tier 4 emissions standards.
Applications
- Emergency power for data centers, hospitals, and telecom towers.
- Primary energy for off-grid construction sites and agricultural operations.
- Hybrid systems integrating solar/wind energy for sustainable power.
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore × Stroke (mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The rotational speed in the above Ricard generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose Us?
- Proven Expertise: 52 engineers ensure cutting-edge performance and customization.
- Global Support: 26 overseas offices in Africa/Asia provide rapid spare parts and maintenance.
- Warranty: 2-year coverage for mechanical/electrical components.
- OEM-Ready: Custom branding for bulk buyers and distributors.
Packaging and Delivery
All units are securely crated with weather-resistant materials and shipped globally via trusted logistics partners.
Company Profile
With 11 branches in China and 3 R&D centers, we serve clients in 50+ countries, prioritizing innovation and sustainability.
Factory After-Sales Service
24/7 technical support, on-site maintenance, and extended warranty options.
Certification
ISO9001, ISO14001, CE, GS, and OEM approvals from Cummins, Perkins, and MTU.
Exhibitions
Meet us at POWERGEN Asia and Middle East Energy to explore live demos.
FAQ
Q: Can your diesel power generator set integrate with solar systems?
A: Yes! We offer hybrid-ready models for seamless renewable energy pairing.
Q: What's the lead time for bulk orders?
A: Standard orders ship in 15-30 days, with expedited options available.
Q: Do you provide financing?
A: Flexible payment terms and leasing plans are available for large projects.
Need a Reliable Power Partner?
Whether you're upgrading infrastructure or securing backup energy, our diesel power generator sets offer unmatched durability and value. Contact us at skala@whjlmech.com to discuss your project.
