diesel driven generator
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro5/EPA/CARB
- Product Description
JLMECH：Your Trusted Diesel Driven Generator Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. specializes in manufacturing robust diesel driven generators trusted by industries worldwide. With 3 R&D centers, 11 branches across China, and 26 overseas offices, we combine innovation with strict adherence to CE, ISO, and GB/T standards. Our generators deliver unmatched reliability, fuel efficiency, and compliance, backed by a 2-year warranty and OEM partnerships with global brands like Cummins and Perkins.

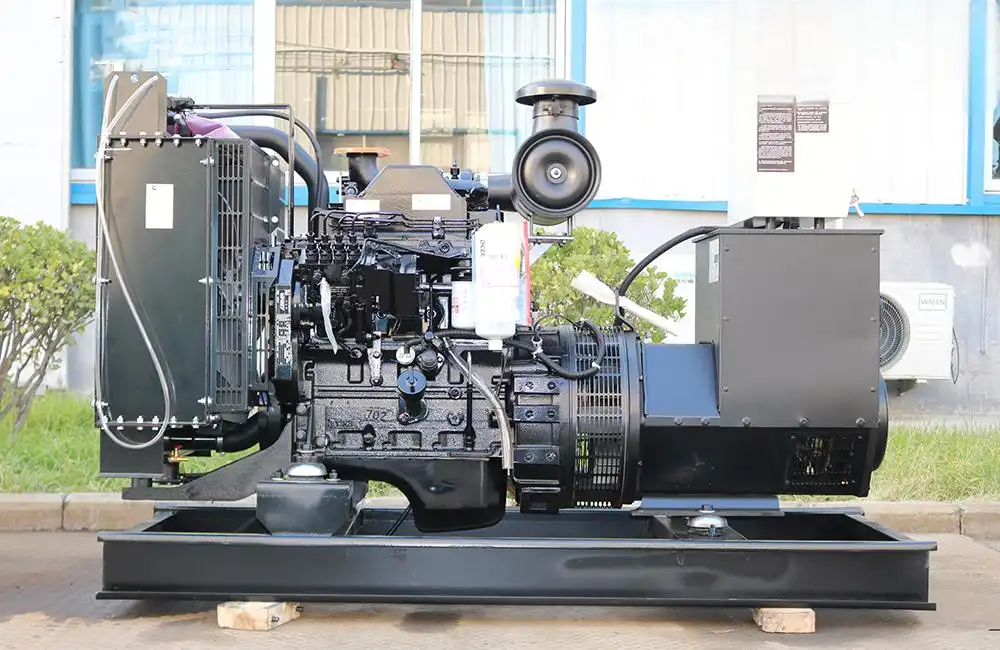

Diesel Driven Generator Description
Built for demanding environments, our diesel driven generators provide uninterrupted power for construction sites, mining operations, telecom towers, and healthcare facilities. Engineered with advanced cooling systems and noise reduction technology, these units ensure optimal performance in extreme temperatures (-20°C to 50°C). Customizable power outputs (20kW–3000kW) and automatic voltage regulation make them ideal for primary or backup energy needs.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-18DGF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
| JL-500GF | 500 | 625 | 900 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 206 | 3500*1380*1800 | 4000 |
| JL-600GF | 600 | 750 | 1080 | KT38-GA | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7000 |
| JL-700GF | 700 | 875 | 1260 | KTA38-G2B | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-800GF | 800 | 1000 | 1440 | KTA38-G2A | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-900GF | 9D0 | 1125 | 1620 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1800*2350 | 8200 |
| JL-1000GF | 1000 | 1250 | 1800 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1850*2350 | 8200 |
| JL-1100GF | 1100 | 1375 | 1980 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 205 | 5000*2040*2430 | 9500 |
| JL-1200GF | 1200 | 1500 | 2160 | KTA50-G8 | 16 | 159*159 | 50 | 204 | 205 | 5350*2110*2500 | 10000 |
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
- Power Range: 20kW–3000kW (customizable)
- Engine Type: Turbocharged, 4-stroke industrial diesel
- Fuel Efficiency: Up to 30% lower consumption vs. standard models
- Compliance: Meets Tier 4 Final, EPA, and EU Stage V emissions
- Noise Level: ≤75 dB(A) at 7 meters
- Voltage: 220V–480V, 50/60 Hz
Why Choose US?
- Proven Expertise: 52 engineers and 27 senior engineers refine designs for durability and cost-efficiency.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid spare parts delivery.
- OEM Quality: Components from Cummins, Perkins, and Stamford guarantee reliability.
- Sustainability: Eco-friendly models reduce carbon footprint without compromising output.
Packaging and Delivery
Diesel driven generators are crated in weatherproof, shock-resistant packaging with anti-corrosion treatment. Global logistics partners ensure timely delivery.

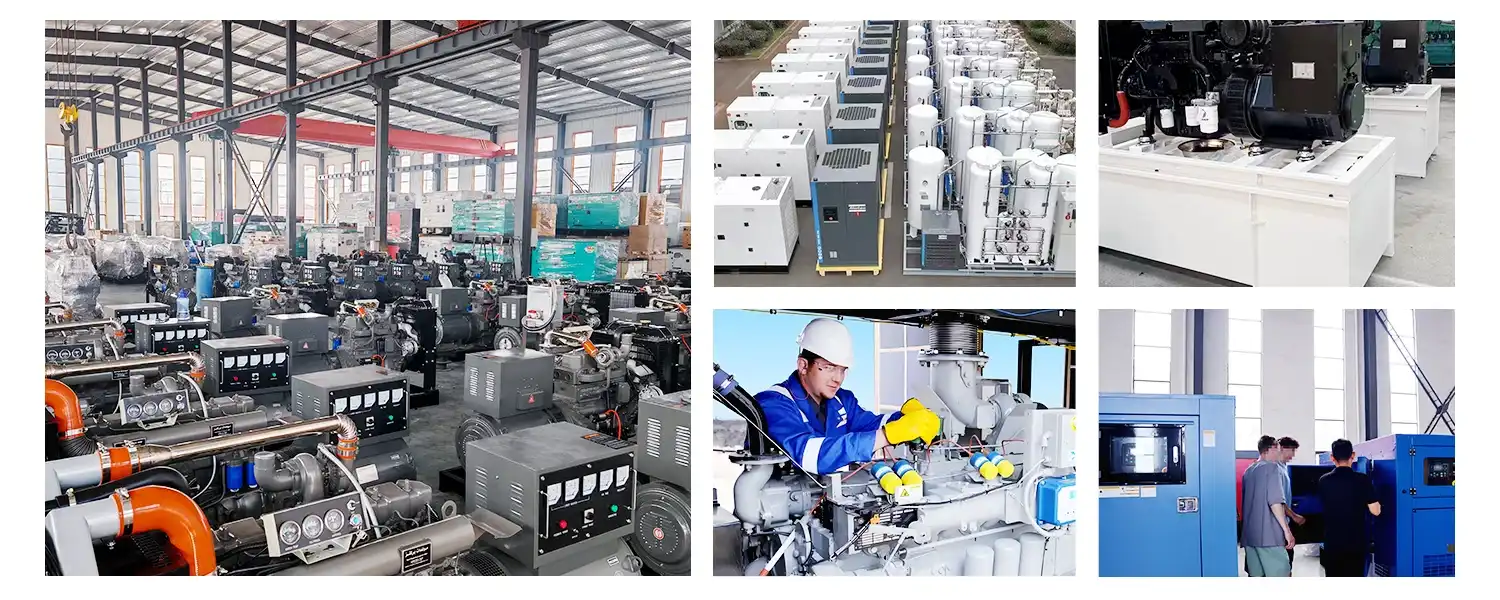

Company Profile
Since 2005, Wuhan Jlmech has served industries in 50+ countries. Our 126 technical staff and automated production lines prioritize precision and scalability.
Factory After-Sales Service
A 2-year warranty covers mechanical and electrical parts. 24/7 multilingual support and on-site maintenance available.
Certification
CE, ISO8528, ISO9001, and ISO14001 certified. Compliant with GB/T 2820-97 and EU emissions standards.
Exhibitions
Regular exhibitors at POWERGEN, Bauma China, and ASEAN Energy Week.
FAQ
Q: Can generators be customized for specific fuel types?
A: Yes! We adapt designs for biodiesel, low-sulfur diesel, or hybrid systems.
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on configuration.
Q: Do you provide compliance documentation?
A: Full certification packages accompany every shipment.
Q: How do I request spare parts?
A: Contact mayucheng188@aliyun.com with your generator's serial number.
Power Your Projects with Confidence
When downtime isn't an option, trust Wuhan Jlmech's diesel driven generators to keep your operations running. With global expertise and relentless quality control, we're your partner for sustainable, high-output energy solutions. Email skala@whjlmech.com for a tailored quote!
