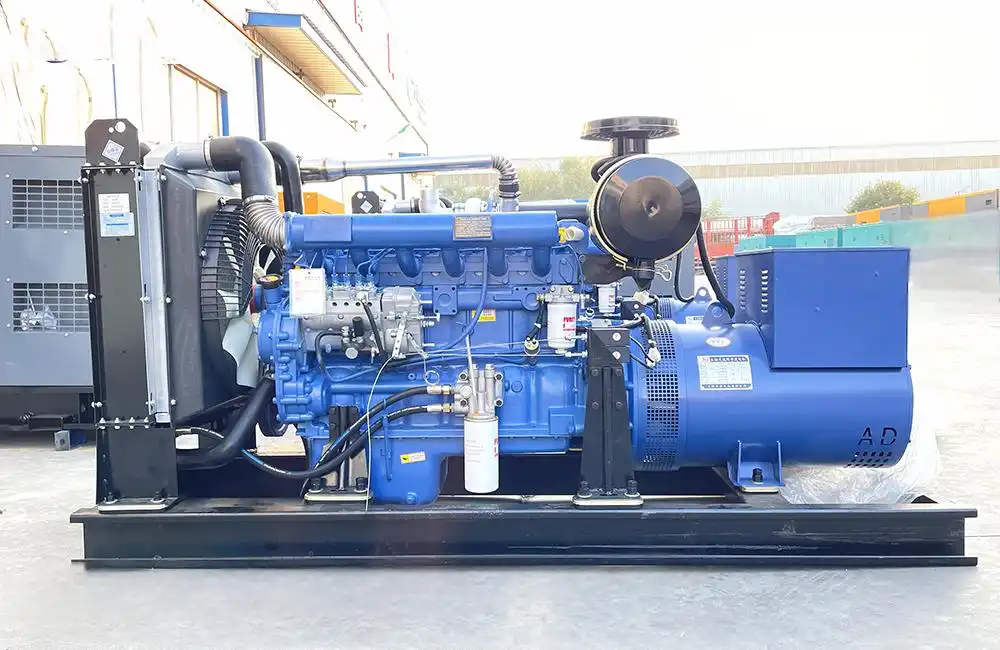

generator diesel 100kva

Power Output: 100kVA (80kW standby)
Voltage: 230/400V, 50Hz
Engine Speed(R.P.M):1500-3000
Phase:Three phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CAR
Fuel Consumption: 20.5 L/hr at 75% load

Product Description

JLMECH：Your Trusted Generator Diesel 100kva Manufacturer & Supplier

Wuhan Jlmech Co., Ltd. is a trusted generator diesel 100kva manufacturer & supplier, combining 26+ years of engineering expertise with global certifications (CE, ISO8528). Our generators deliver unmatched fuel efficiency, durability, and compliance, backed by a 2-year warranty and OEM partnerships with Cummins, Perkins, and MTU.

Generator Diesel 100kva Description

Designed for industries like manufacturing, healthcare, and construction, our generator diesel 100kva ensures uninterrupted power in harsh environments. Key features include:

Advanced Engine: High-torque, low-emission diesel engine with 20% improved fuel economy.
Smart Control Panel: Real-time monitoring of voltage, frequency, and load.
Noise Reduction: Operates below 75 dB(A), meeting urban noise regulations.
Weatherproof Design: IP55 protection for dust and rain resistance.
Specifications

generator diesel 100kva

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	1000kg
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120k

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Proven Reliability: Rigorously tested in our automated facility for 500+ hours.
Global Compliance: Meets CE, GS, and ISO8528 standards for seamless import/export.
Expert Support: 27 senior engineers and 26 overseas offices provide 24/7 assistance.
Cost Efficiency: Optimized fuel use reduces operational costs by up to 30%.

Packaging and Delivery

Generator packaging

Generator diesel 100kva is crated in anti-corrosion packaging and shipped globally via air/sea freight.

About Wuhan Jlmech Co., Ltd.

Generator factory

With 3 R&D centers, 11 Chinese branches, and 126 technical staff, we serve clients in 40+ countries. Our 26 overseas offices in Africa and Southeast Asia ensure localized support.

Factory After-Sales Service

Enjoy a 2-year warranty, free maintenance training, and emergency spare parts delivery.

Certification

Certificate

Certified to ISO9001 (quality) and ISO14001 (environmental) standards.

Exhibitions

Exhibition

We showcase innovations at global trade shows like Bauma China and PowerGen Asia.

FAQ

Q: What's the fuel consumption at full load?
A: 24 L/hr, with eco-mode for partial loads.

Q: Can it integrate with solar hybrid systems?
A: Yes, customizable via our R&D team.

Q: Delivery time for bulk orders?
A: 15–30 days, depending on location.

Need a Dependable 100kVA Diesel Generator?

Email skala@whjlmech.com for generator diesel 100kva quote. Trust Wuhan Jlmech for power solutions that keep your operations running—rain or shine.
