silent diesel generator 250kva

AC Output(KW)：200KW/250KVA
Rated AC Voltage(V)：380/400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH:Your Trusted Silent Diesel Generator 250kVA Manufacturer & Supplier

As a leading silent diesel generator 250kVA manufacturer, Wuhan Jlmech combines cutting-edge engineering with 15+ years of industry expertise. Our generators deliver unmatched noise reduction (≤65 dB), fuel efficiency, and compliance with global standards like CE and ISO8528. With 3 R&D centers and 26 overseas offices, we ensure reliable power solutions for industries worldwide.

Silent Diesel Generator 250kVA Description

Designed for demanding environments, our silent diesel generator 250kVA offers:

Ultra-Quiet Operation: Advanced acoustic enclosures reduce noise to 60-65 dB, ideal for urban or noise-sensitive areas.
Fuel Efficiency: Optimized combustion technology cuts fuel consumption by 15% vs. standard models.
Tier 4 Compliance: Meets global emission standards (EPA, EU Stage V) for eco-friendly performance.
Robust Design: Weatherproof casing protects against dust, moisture, and extreme temperatures (-20°C to 50°C).
Smart Monitoring: Remote diagnostics and IoT-enabled control panels for real-time performance tracking.

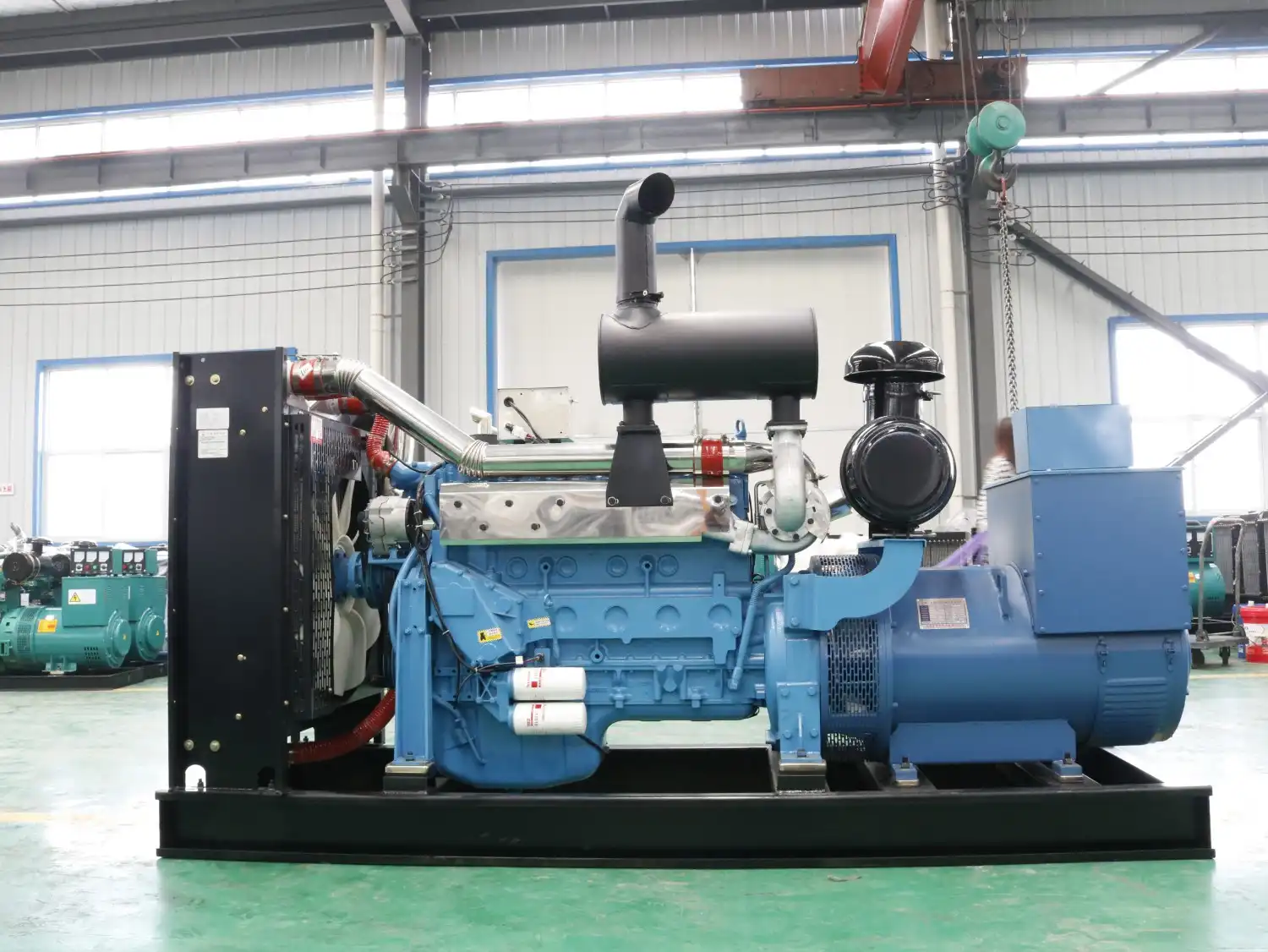

silent diesel generator 250kva

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore * Stroke(mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	1050kg
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg
JL-200GF	6126ZLD	206kW	360A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1800kg
JL-250GF	6126ZLD1	256kW	450A	400V/230V	50Hz	126*130	1500rpm		6	290*95'150	1800kg
JL-300GF	6126ZLD2	308kW	540A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1900kg
JL-300GF	618ZLD	338kW	540A	400V/230V	50Hz	126*155	1500rpm		6	300100180	2000kg
JL-400GF	6126ZLD3	408kW	720A	400V/230V	50Hz	126*155	1500rpm		6	300*110"160	2000kg
JL-500GF	6126ZLD4	508kW	900A	400V/230V	50Hz	127*165	1500rpm		6	340110180	2400kg

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Proven Expertise: 52 engineers and 27 senior engineers drive innovation in power solutions.
Global Certifications: CE, ISO9001, ISO14001, and GB/T 2820-97 certified for quality and safety.
OEM Partnerships: Trusted by Cummins, Perkins, and MTU for precision manufacturing.
2-Year Warranty: Comprehensive coverage for mechanical and electrical components.
Scalable Solutions: Modular designs allow phased deployments or bulk procurement discounts.

Packaging and Delivery

Generator packaging

Silent diesel generator 250kVA is crated in anti-corrosion wooden frames and shipped globally via air, sea, or land.

Company Profile

Generator factory

With 3 R&D centers, 11 Chinese branches, and 26 overseas offices, Wuhan Jlmech serves clients in 40+ countries.

Factory After-Sales Service

Enjoy 24/7 technical support, on-site maintenance, and spare parts availability within 72 hours.

Certification

Certificate

Our products meet CE, GS, ISO8528, and ISO14001 standards.

Exhibitions

Exhibition

We showcase innovations at global trade fairs like POWER-GEN Asia and Middle East Energy.

FAQ

Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.

Q: Can the generator integrate with solar/hybrid systems?
A: Yes, we offer customizable hybrid configurations.

Q: Do you provide load bank testing?
A: All units undergo 8-hour load testing before delivery.

Power Your Projects with Confidence

Whether for emergency backup, construction sites, or data centers, our silent diesel generator 250kVA ensures uninterrupted operations. Contact us at skala@whjlmech.com to discuss bulk pricing or custom requirements. Wuhan Jlmech — where innovation meets reliability.
