30kw diesel power generator
Rated AC Voltage(V):400/230
Frequency(HZ):50HZ
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted 30kW Diesel Power Generator Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. specializes in designing 30kW diesel power generators trusted by industries worldwide. With 3 R&D centers, 26 global offices, and certifications like CE and ISO9001, our generators deliver unmatched reliability, fuel efficiency, and quiet operation. As an OEM partner for Cummins, Perkins, and MTU, we combine innovation with proven engineering to power your projects.

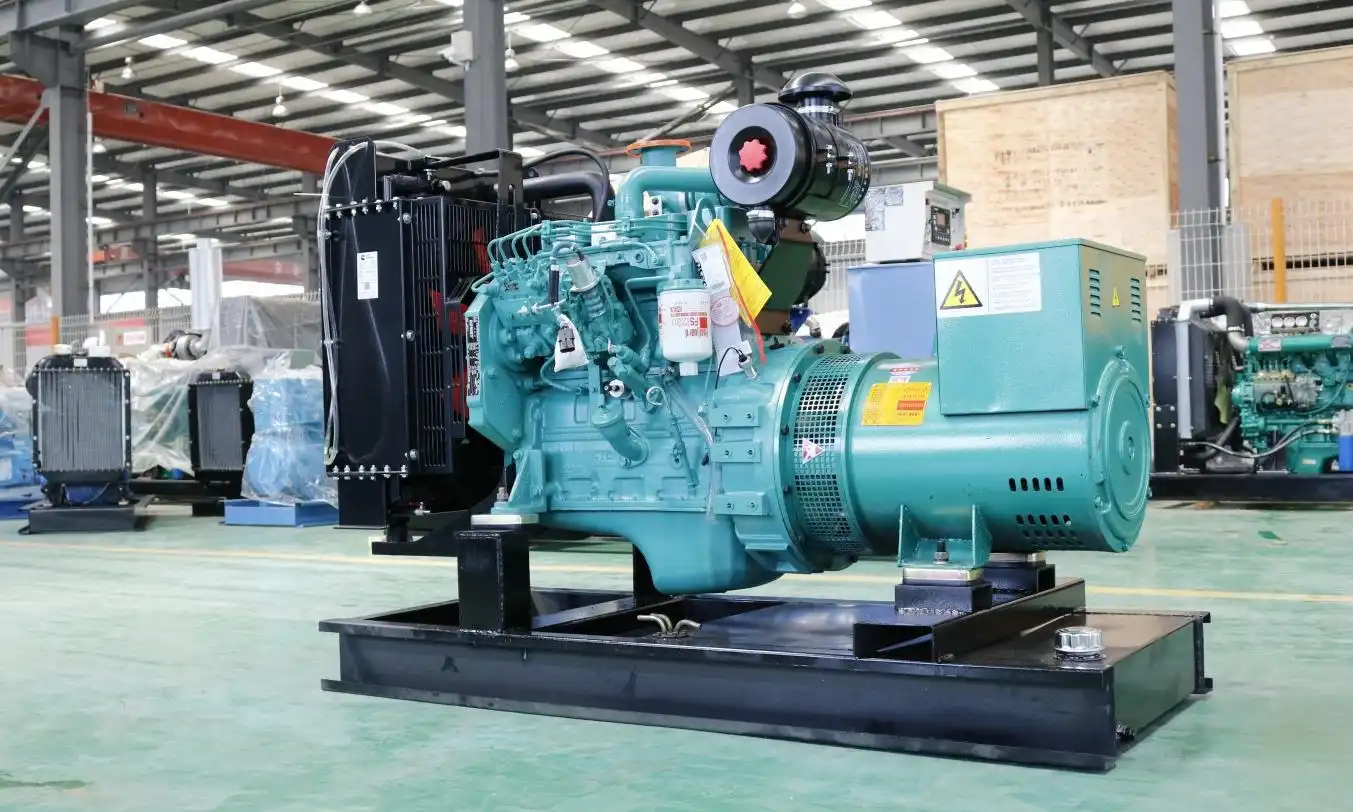

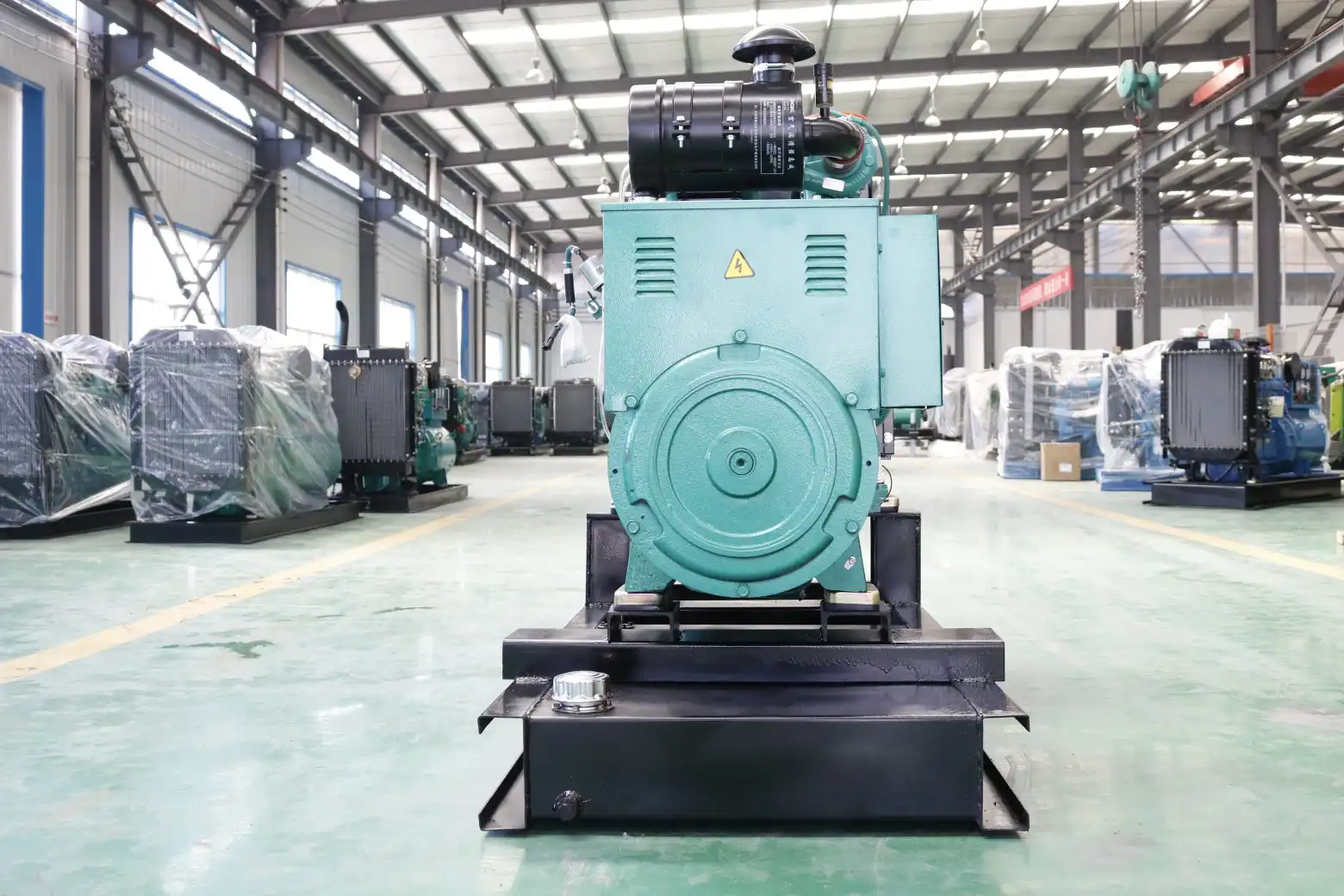

30kW Diesel Power Generator Description
Ideal for construction sites, farms, factories, or telecom towers, our 30kW diesel power generator ensures uninterrupted power in harsh environments. Built with a robust engine and advanced cooling system, it operates efficiently in temperatures from -15°C to 50°C.
Specifications
| Model | Power （KW） | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke(mm) | Displacement(L) | Lube oil(L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 89*92 | 2.289 | 8 | 224 | 1800*900*1270 | 755 |
| JL-30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 89*92 | 2.289 | 8 | 212 | 1800*900*1300 | 800 |
| JL-60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1950*920*1340 | 1100 |
| JL-70GF | 70 | 87.5 | 126 | WP4.1D80E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1850*700*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | WP4.1D100E200 | 4 | 105*130 | 4.5 | 10 | 203 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D100E200 | 4 | 105*118 | 4.5 | 13 | 201 | 2200*800*1340 | 1250 |
| JL-120GF | 120 | 150 | 216 | WP60132E200 | 6 | 105*130 | 6.75 | 18 | 205 | 2470*830*1450 | 1350 |
| JL-180GF | 180 | 225 | 324 | WP10D200E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1400 | 1880 |
| JL-200GF | 200 | 250 | 360 | WP10D238E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1500 | 2100 |
| JL-280GF | 280 | 350 | 504 | WP10D320E200 | 6 | 126*130 | 9.726 | 24 | 210 | 2900*1100*1800 | 2200 |
| JL-350GF | 350 | 437.5 | 630 | WP13D385E200 | 6 | 127*165 | 12.54 | 36 | 210 | 3000*1000*1850 | 2500 |
| JL-350GF | 350 | 437.5 | 630 | WP13D405E200 | 6 | 127*165 | 12.54 | 36 | 200 | 3000*1000*1850 | 2600 |
| JL-400GF | 400 | 500 | 720 | 6M26D447E200 | 6 | 150*150 | 15.9 | 52 | 197 | 3500*1500*1800 | 4000 |
| JL-500GF | 500 | 625 | 900 | 6M33D572E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3600*1500*1850 | 5000 |
| JL-600GF | 600 | 750 | 1080 | 6M33D670E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3650*1500*1900 | 6000 |
| JL-800GF | 800 | 1000 | 1440 | 12M260902E200 | 12 | 150*150 | 31.8 | 109 | 210 | 4500*1850*2200 | 8000 |
| JL-1000GF | 1000 | 1250 | 1800 | 12M33D1108E200 | 12 | 150*185 | 39.2 | 155 | 210 | 4800*2000*2350 | 9200 |
| JL-1500GF | 1500 | 1875 | 2700 | 16M33D1680E310 | 16 | 150*185 | 52.3 | 171 | 216 | 5200*2500*2700 | 11900 |
| JL-1800GF | 1800 | 2250 | 3240 | 12M55D2020E310 | 12 | 180*215 | 65.65 | 480 | 199 | 6100*2350*2800 | 16900 |
| JL-2000GF | 2000 | 2500 | 3600 | 12M55D2210E310 | 12 | 180*215 | 65.65 | 480 | 202 | 6100*2350*2800 | 17200 |
| JL-2200GF | 2200 | 2750 | 3960 | 12M55D2450E310 | 12 | 180*215 | 65.65 | 480 | 203 | 6100*2350*2800 | 17500 |
The rotational speed in the above Weichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 126 technical experts, including 27 senior engineers, ensure precision engineering.
- Global Compliance: Meets CE, ISO8528, and GB/T 2820-97 standards for emissions and safety.
- OEM-Quality Components: Engineered with parts from Cummins, Stamford, and Leroy-Somer.
- 2-Year Warranty: Covers mechanical and electrical defects for worry-free operation.
Packaging & Delivery
30kW diesel power generators are crated in anti-rust wooden frames and shipped globally via air or sea.
About Wuhan Jlmech Co., Ltd.

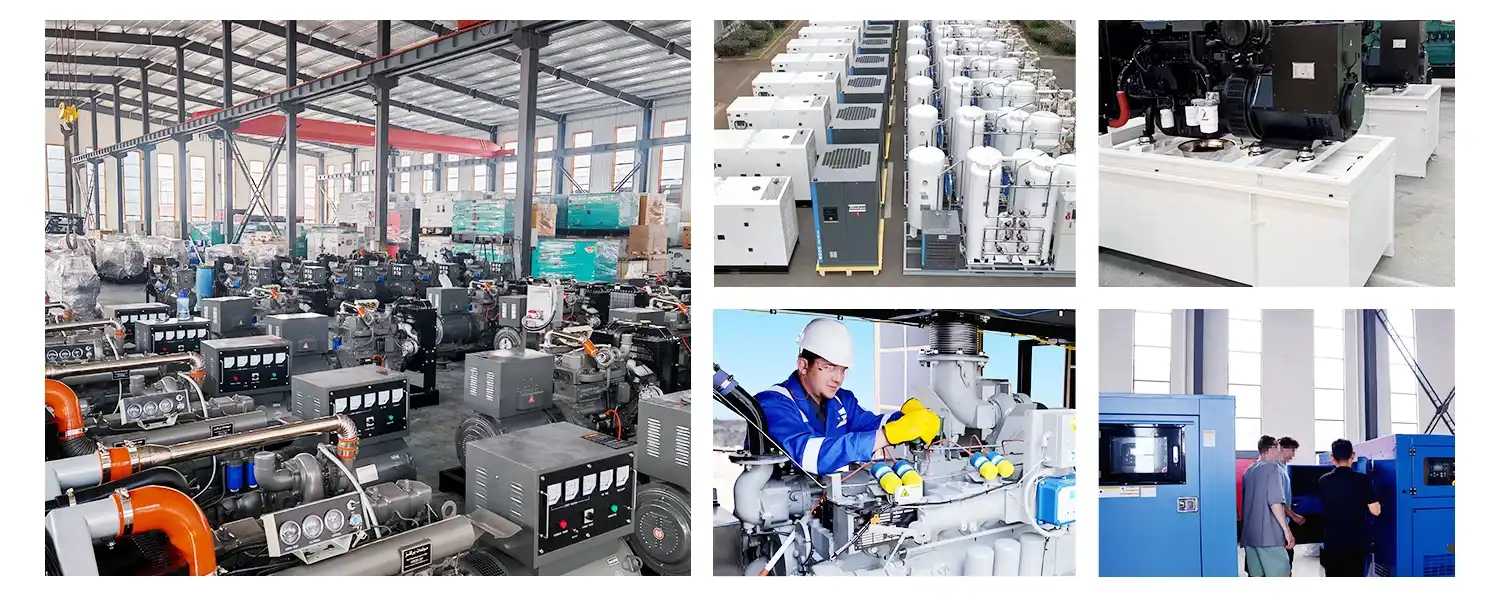

With 11 branches in China and facilities like automated testing lines, we serve clients in 20+ countries. Our Africa and Southeast Asia offices ensure localized support.
Factory After-Sales Service
24/7 technical support, onsite training, and priority spare parts delivery.
Certifications
ISO9001, ISO14001, CE, GS, and ISO8528 certified.
Exhibitions
Regular exhibitors at PowerGen Asia, Canton Fair, and Bauma China.
FAQ
Q: What's the lead time for bulk orders?
A: 15–25 days, depending on customization.
Q: Does it comply with EU emissions standards?
A: Yes, meets Stage IIIA regulations.
Q: Can I add a silent canopy?
A: Absolutely—customize noise levels or voltage outputs.
Q: Do you offer financing?
A: Flexible payment terms and lease options available.
Power Your Operations with Confidence
Whether you're powering a remote construction site or safeguarding a hospital's energy supply, our 30kW diesel power generator offers the reliability and efficiency your business demands. Contact us at skala@whjlmech.com to discuss your needs—we're here to keep your operations running smoothly.
