silent diesel generator 437kva
Rated AC Voltage(V):380/400
Frequency(HZ):50
Phase:Three Phase
Type:Silent/Open FrameEngine
Type:Six cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Noise Level: ≤75 dB at 7 meters
Fuel Type: Diesel (compatible with biofuel blends)
Dimensions: 3250mm x 1200mm x 1800mm (trailer-mounted options available)
Certifications: CE, ISO8528, GB/T 2820-9
- Product Description
JLMECH：Your Trusted Silent Diesel Generator 437kVA Manufacturer & Supplier
For over two decades, Wuhan Jlmech Co., Ltd. has specialized in designing silent diesel generator 437kVA units tailored for industries demanding reliability and compliance. With 3 R&D centers, 26 global offices, and partnerships with brands like Cummins and Perkins, our generators combine cutting-edge engineering with whisper-quiet operation.

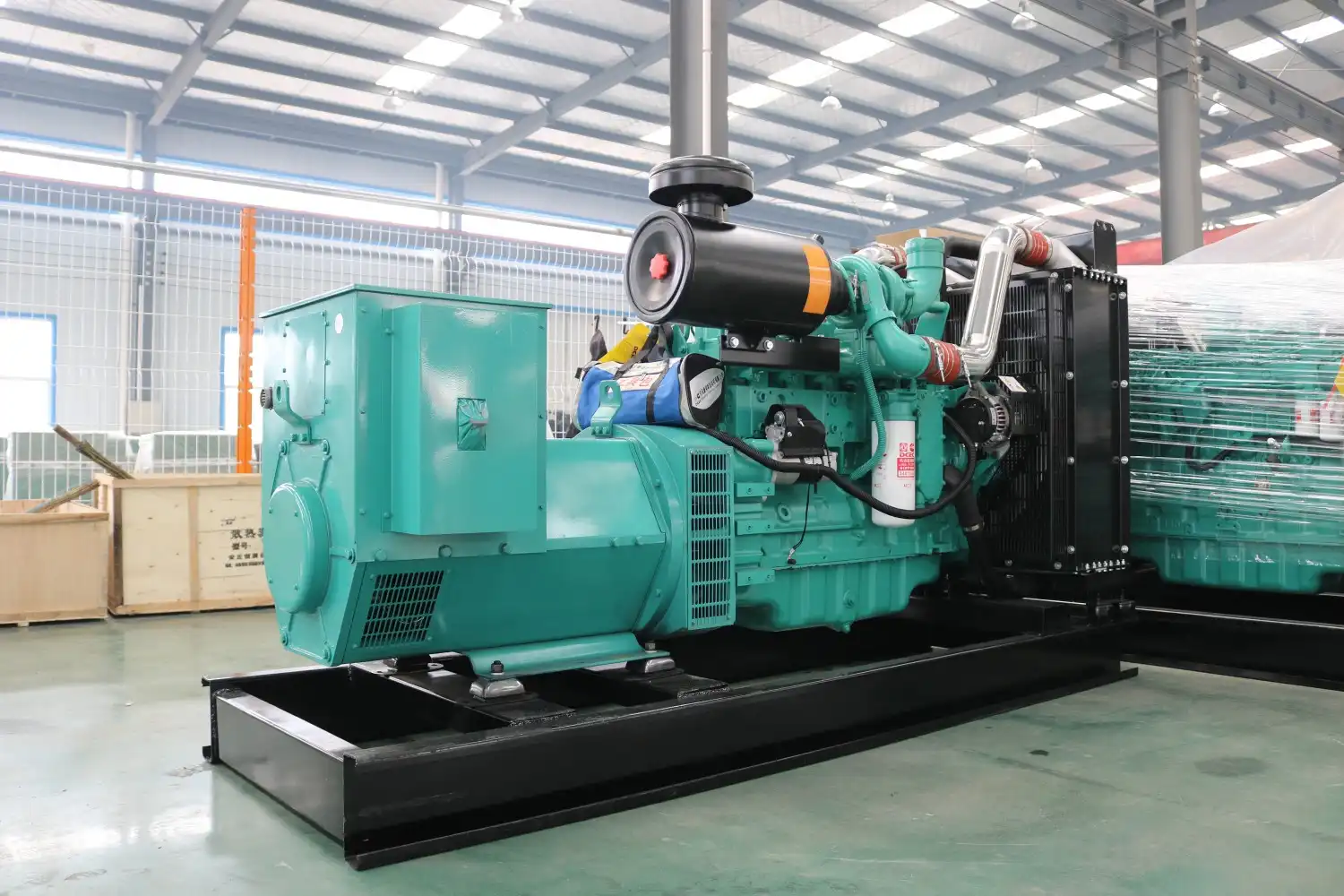

Silent Diesel Generator 437kVA Description
Engineered to deliver 437kVA power output with noise levels below 75 dB, silent diesel generator 437kVA ensures uninterrupted operations in noise-sensitive environments like hospitals, urban construction sites, and data centers. Its rugged design withstands extreme temperatures and humidity, making it ideal for remote mining or tropical climates.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-280GF | 280 | 350 | 504 | MTAA11-G3 | 6 | 125*147 | 11 | 38 | 210 | 3100*1050*1700 | 2700 |
| JL-350GF | 350 | 437.5 | 630 | NTAA855-G7A | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3500 |
The rotational speed in the above Cummins generator set generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Low Noise, High Efficiency: Advanced acoustic enclosures reduce sound pollution without compromising 20% fuel savings.
- Global Compliance: Meets EU Stage V and EPA Tier 4 emission standards for worldwide deployment.
- Scalable Solutions: Customize with parallel systems, hybrid fuel compatibility, or weatherproofing.
- Proven Reliability: Over 1,200 units operational across Africa and Southeast Asia.
Packaging and Delivery
All generators are crated in anti-corrosion steel frames and dispatched within 15 days.

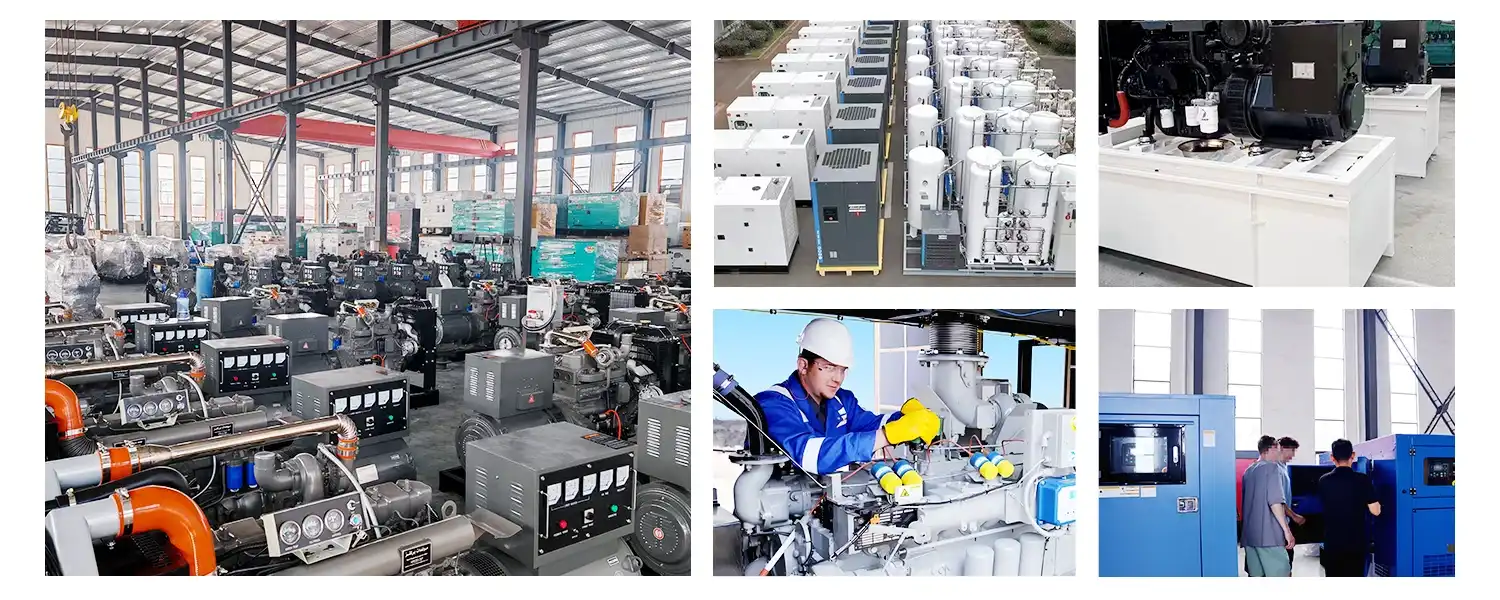

About Wuhan Jlmech Co., Ltd.
With 126 technical experts and 11 branches in China, we serve as an OEM partner for global brands like MTU and Liebherr. Our automated production lines ensure precision in every silent diesel generator 437kVA unit.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and access to 50+ service hubs in Africa and Asia.
Certification
Our generators and processes are certified to ISO9001, ISO14001, CE, and GS standards.
Exhibitions
We showcase innovations annually at POWER-GEN Asia and Bauma China.
FAQ
Q: What's the maintenance schedule?
A: Bi-annual servicing recommended; remote diagnostics available.
Q: Can it integrate with solar systems?
A: Yes, hybrid-ready models are customizable.
Q: How quickly can you respond to breakdowns?
A: 48-hour onsite support in most regions.
Power Your Projects with Confidence
Whether you're powering a telecom tower or a disaster recovery site, our silent diesel generator 437kVA offers the durability and quiet performance your operations deserve. Contact us at skala@whjlmech.com to discuss bulk orders or custom requirements.
