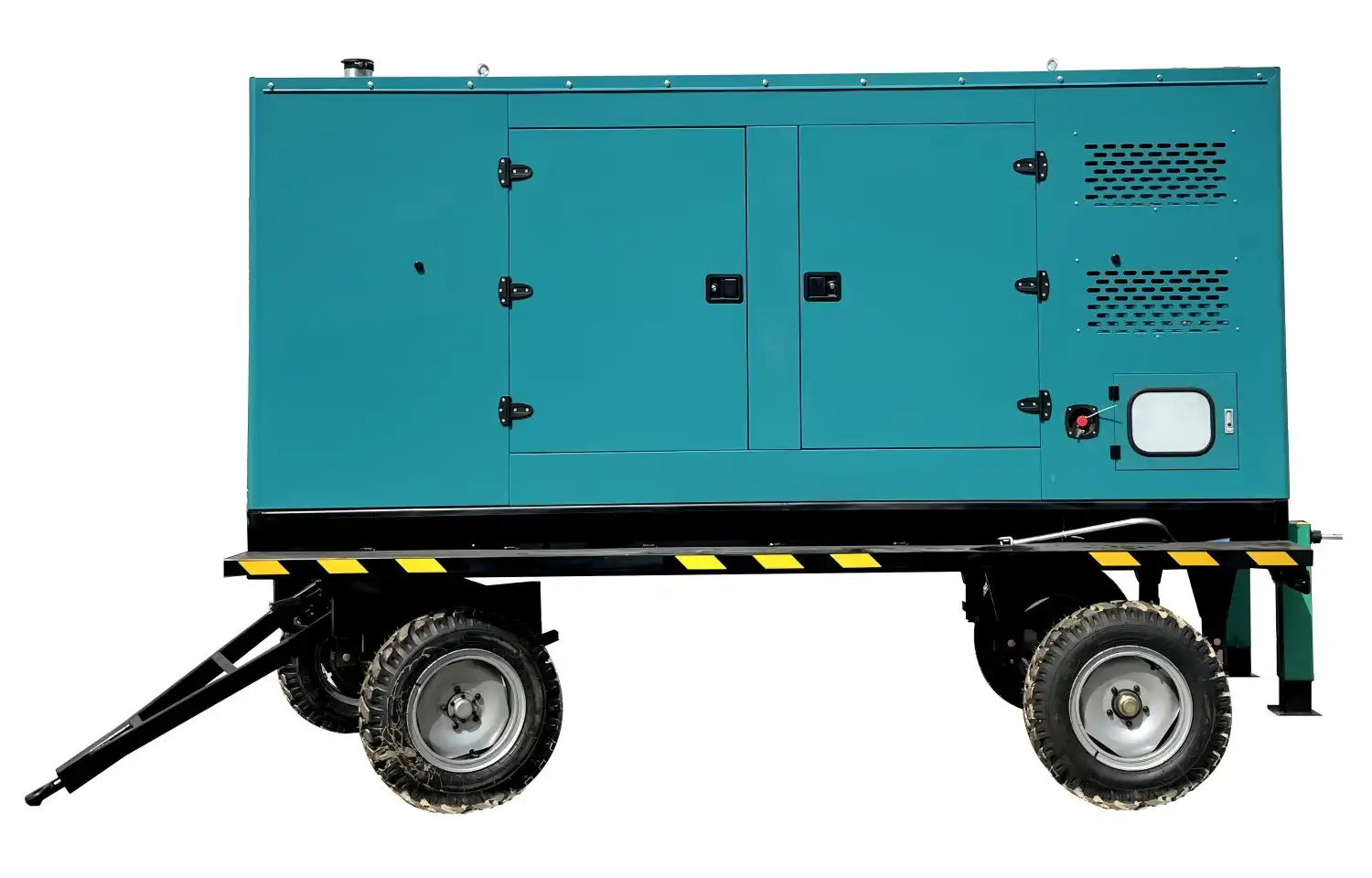

movable diesel generator

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH: Your Trusted Movable Diesel Generator Manufacturer & Supplier

As a leading movable diesel generator manufacturer, Wuhan Jlmech Co., Ltd. combines innovation with reliability. With 3 R&D centers, 126 technical experts, and 26 global offices, we deliver portable power solutions certified to CE, ISO, and GB/T standards. Our OEM partnerships with Cummins, Perkins, and MTU ensure industrial-grade performance, backed by a 2-year warranty and 24/7 support.

Movable Diesel Generator Description

Need power that moves with your project? Our movable diesel generators are engineered for versatility. Built with reinforced frames, all-terrain wheels, and compact designs, they thrive on construction sites, remote mines, farms, and event venues.

movable diesel generator

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	c
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg
JL-200GF	6126ZLD	206kW	360A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1800kg
JL-250GF	6126ZLD1	256kW	450A	400V/230V	50Hz	126*130	1500rpm		6	290*95'150	1800kg
JL-300GF	6126ZLD2	308kW	540A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1900kg
JL-300GF	618ZLD	338kW	540A	400V/230V	50Hz	126*155	1500rpm		6	300100180	2000kg
JL-400GF	6126ZLD3	408kW	720A	400V/230V	50Hz	126*155	1500rpm		6	300*110"160	2000kg
JL-500GF	6126ZLD4	508kW	900A	400V/230V	50Hz	127*165	1500rpm		6	340110180	2400kg

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose Wuhan Jlmech?

Proven Expertise: 52 engineers and 27 senior engineers refine every design.
Global OEM Partner: Trusted by Cummins, Perkins, and Liebherr for precision manufacturing.
Advanced Facilities: Automated testing lines and powder coating ensure quality.
2-Year Warranty: Covers mechanical and electrical components.

Packaging and Delivery

Generator packaging

Movable diesel generators are securely packed in weatherproof crates. We offer flexible logistics, including FOB or CIF terms, with timely delivery to Africa, Southeast Asia, and beyond.

Company Profile

Generator factory

Wuhan Jlmech operates 11 branches across China and 26 overseas offices. Our 3 R&D centers focus on energy-efficient, mobile power solutions for industries worldwide.

Factory After-Sales Service

Enjoy a 2-year warranty, spare parts availability, and remote troubleshooting via our 24/7 technical team.

Certification

Certificate

Our products meet CE, ISO9001, and ISO14001 standards, ensuring safety and environmental compliance.

Exhibitions

Exhibition

We showcase innovations at global trade fairs to connect with industry leaders.

FAQ

Q: Can I customize the generator's power output?
A: Yes! We tailor solutions from 20kVA to 500kVA.

Q: What's the lead time for bulk orders?
A: Typically 15–30 days, depending on specifications.

Q: Do you accept leasing agreements?
A: We partner with financial providers for flexible payment options.

Q: How do you handle after-sales support in remote areas?
A: Our 26 overseas offices provide rapid onsite assistance.

Power Your Projects with Confidence

Whether you're lighting up a festival or drilling in the desert, Wuhan Jlmech's movable diesel generators deliver unmatched reliability. Contact us at skala@whjlmech.com to discuss your needs—or request a customized quote today!
