diesel generator 230v

Power Range: 20kVA to 500kVA
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500/3000
Phase:Single/Three phase
Type:Silent/Open Frame
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
Fuel Efficiency: 0.3L/kWh at 75% load
Noise Level: ≤68 dB(A) at 7 meters
Voltage Stability: ±1% under variable loads
Dimensions: Compact footprint for easy site deployment

Product Description

JLMECH：Your Trusted Diesel Generator 230V Manufacturer & Supplier

Wuhan Jlmech Co., Ltd. specializes in manufacturing robust diesel generator 230V systems trusted by industries worldwide. With 26+ years of expertise, we deliver fuel-efficient, ISO-certified power solutions backed by a 2-year warranty and global technical support.

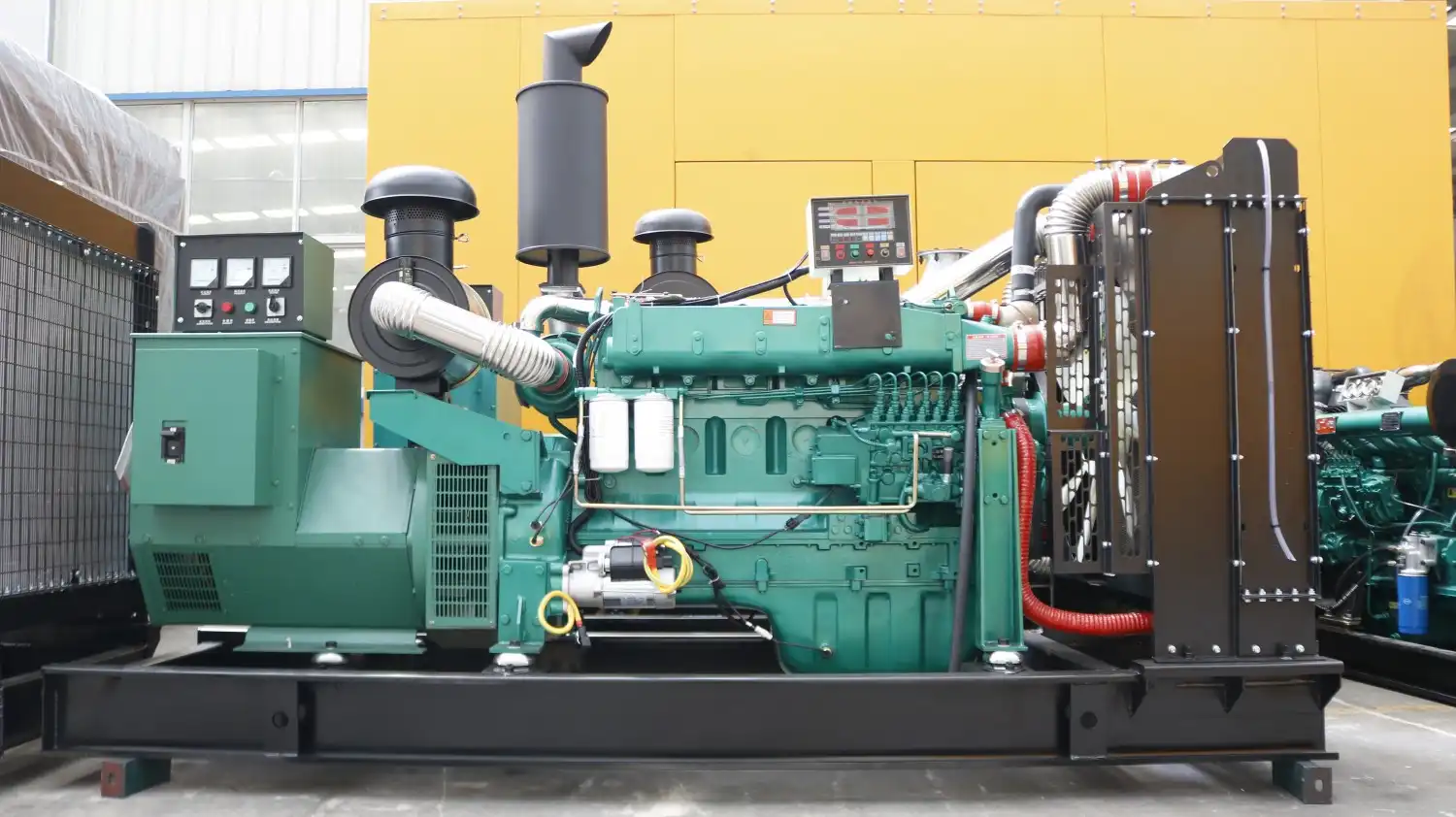

Diesel Generator 230V Description

Our diesel generator 230V is engineered to meet the rigorous demands of construction sites, mining operations, hospitals, and telecom infrastructure. Designed with a heavy-duty engine and smart voltage regulation, it ensures stable 230V power output in extreme temperatures (-20°C to 50°C). Ideal for prime or standby power, this unit supports single- or three-phase configurations and complies with ISO 8528 and EPA Tier 4 emission standards.

diesel generator 230v

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	c
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg
JL-200GF	6126ZLD	206kW	360A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1800kg
JL-250GF	6126ZLD1	256kW	450A	400V/230V	50Hz	126*130	1500rpm		6	290*95'150	1800kg
JL-300GF	6126ZLD2	308kW	540A	400V/230V	50Hz	126*130	1500rpm		6	29095150	1900kg
JL-300GF	618ZLD	338kW	540A	400V/230V	50Hz	126*155	1500rpm		6	300100180	2000kg
JL-400GF	6126ZLD3	408kW	720A	400V/230V	50Hz	126*155	1500rpm		6	300*110"160	2000kg
JL-500GF	6126ZLD4	508kW	900A	400V/230V	50Hz	127*165	1500rpm		6	340110180	2400kg

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Global Compliance: CE, GS, and ISO 9001 certifications ensure safety and reliability.
OEM Expertise: We manufacture for Cummins, Perkins, and MTU, guaranteeing military-grade quality.
2-Year Warranty: Covers all mechanical and electrical components.
24/7 Support: 26 overseas offices in Africa and Southeast Asia provide rapid response.

Packaging and Delivery

Generator packaging

Diesel generator 230V is crated in anti-corrosion steel frames with moisture-proof packaging. We partner with DHL, FedEx, and Maersk for timely global delivery.

Company Profile

Generator factory

With 3 R&D centers, 11 Chinese branches, and 126 technical experts, Wuhan Jlmech combines innovation with precision engineering. Our automated production lines and 52-engineer team ensure unmatched quality.

After-Sales Service

Enjoy free maintenance checks, remote troubleshooting, and genuine spare parts access. Extended service contracts available.

Certification

Certificate

CE, ISO 8528, ISO 9001, ISO 14001, and GB/T 2820-97 certified.

Exhibitions

Exhibition

We showcase innovations at Hannover Messe, Bauma China, and Power Gen Africa.

FAQ

Q: Can I customize the voltage/frequency?
A: Yes! We tailor configurations for regional grids (50Hz/60Hz).

Q: What's the lead time for 50+ units?
A: 4–6 weeks with priority production scheduling.

Q: Do you provide load bank testing reports?
A: Yes—each unit ships with a performance certificate.

Power Your Operations with Confidence

When you need a diesel generator 230V that won't quit, Wuhan Jlmech delivers industrial-grade durability and service you can trust. Contact us at skala@whjlmech.com to discuss your project's needs!
