generator diesel silent 220v
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Engine Type：Turbocharged diesel, water-cooled
Fuel Tank Capacity：50–5000L (extended runtime options)
Dimensions：Compact designs for easy transport
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Generator Diesel Silent 220V Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. has specialized in designing generator diesel silent 220V systems for industries requiring reliable, low-noise power. With 3 R&D centers, 126 technical experts, and CE/ISO-certified manufacturing, our generators combine fuel efficiency, durability, and noise levels as low as 65 dB(A). Trusted by global brands like Cummins and Perkins as an OEM partner, we deliver solutions built for harsh environments.
Generator Diesel Silent 220V Description

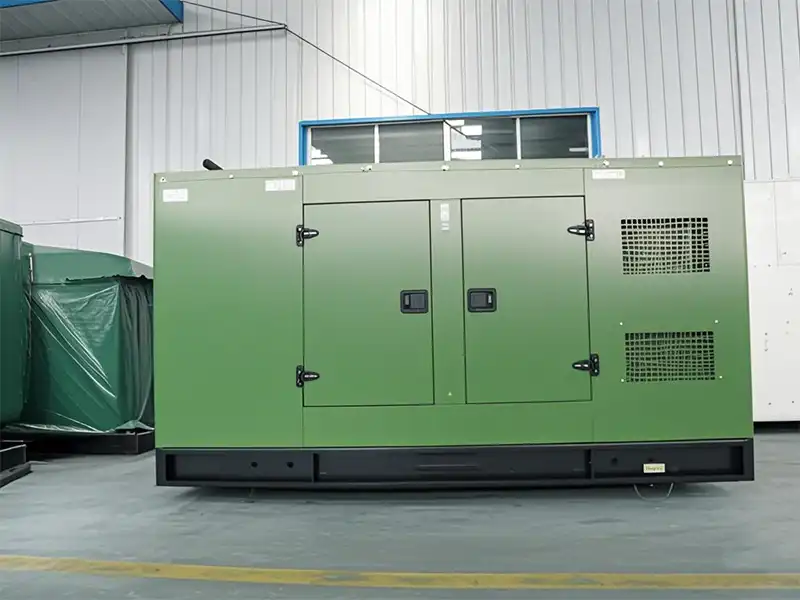

Our generator diesel silent 220V is engineered for businesses needing uninterrupted power in noise-sensitive settings. Ideal for hospitals, construction sites, or off-grid operations.Whether for emergency backup or primary power, this generator ensures smooth operations with minimal disruption.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore * Stroke(mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The Ricardo series diesel generator sets are of four-stroke, water-cooled and in-line types, and they have good power performance, economic efficiency, environmental friendliness and starting performance.
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: Backed by 52 engineers and 27 senior technicians, we optimize performance for your industry.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure quick spare parts delivery and technical assistance.
- Quality Assurance: Automated assembly lines and a 2-year warranty on all mechanical/electrical components.
- Custom Solutions: Tailor output, fuel efficiency, or noise levels to meet project-specific needs.
Packaging and Delivery
Generator diesel silent 220V are crated in weatherproof, shock-resistant packaging. We handle global logistics, including customs clearance, for timely delivery.
Company Profile

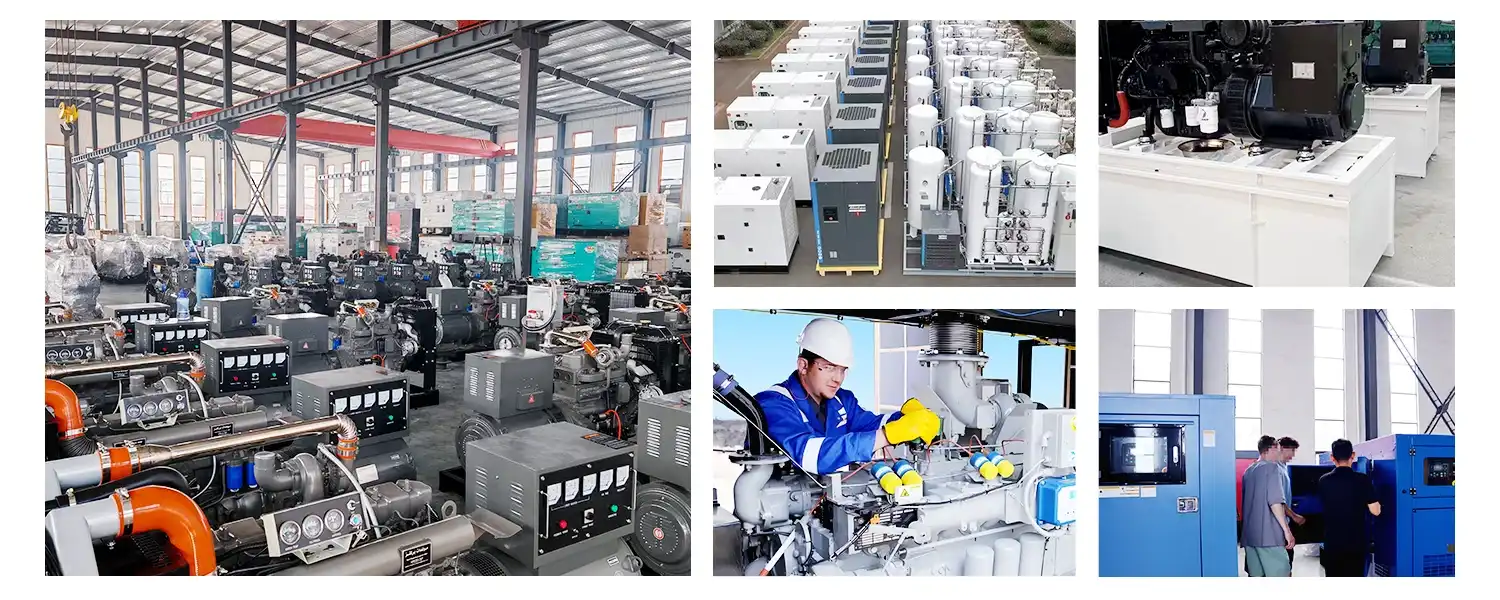

Wuhan Jlmech Co., Ltd. operates 11 branches across China and serves clients in 30+ countries. Our facilities include sheet metal workshop, automated coating lines, and rigorous testing labs to meet ISO9001/ISO14001 standards.
Factory After-Sales Service
We offer 24/7 technical support, on-site maintenance, and a 48-hour response guarantee for critical issues.
Certification
Our products comply with CE, CSA, UL, ISO9001, and ISO1400 standards.
Exhibitions
We showcase innovations annually at industry events like PowerGen Asia and Middle East Energy.
FAQ
Q: Can the generator integrate with solar/hybrid systems?
A: Yes! Our team designs hybrid solutions for energy diversification.
Q: What's the lead time for bulk orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.
Q: Do you provide load bank testing reports?
A: Absolutely—each unit includes a performance certificate.
Ready to Power Your Projects?
Whether you need a single generator diesel silent 220V or a fleet, Wuhan Jlmech Co., Ltd. delivers quality you can trust. Contact us at skala@whjlmech.com for a quote tailored to your needs.
