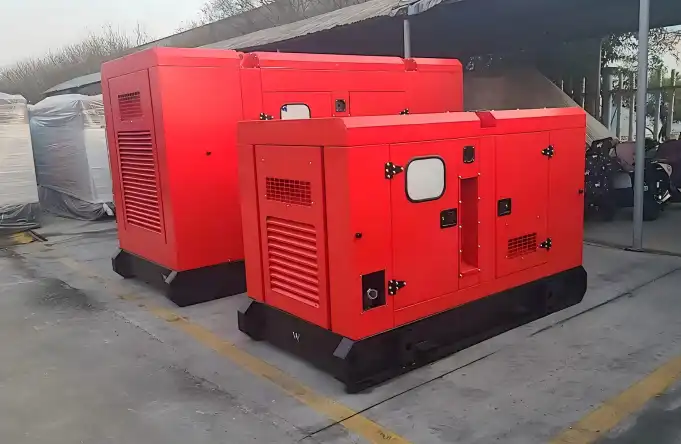

diesel generator set 100kva

AC Output(KW):80KW/100KVA
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH: Your Trusted Diesel Generator Set 100kVA Manufacturer & Supplier

As a leading diesel generator set 100kva manufacturer, Wuhan Jlmech Co., Ltd. combines cutting-edge engineering with global certifications (CE, ISO) to deliver reliable power solutions. With 26 overseas offices and partnerships with Cummins, Perkins, and MTU, we ensure durability, fuel efficiency, and 24/7 technical support for industries worldwide.

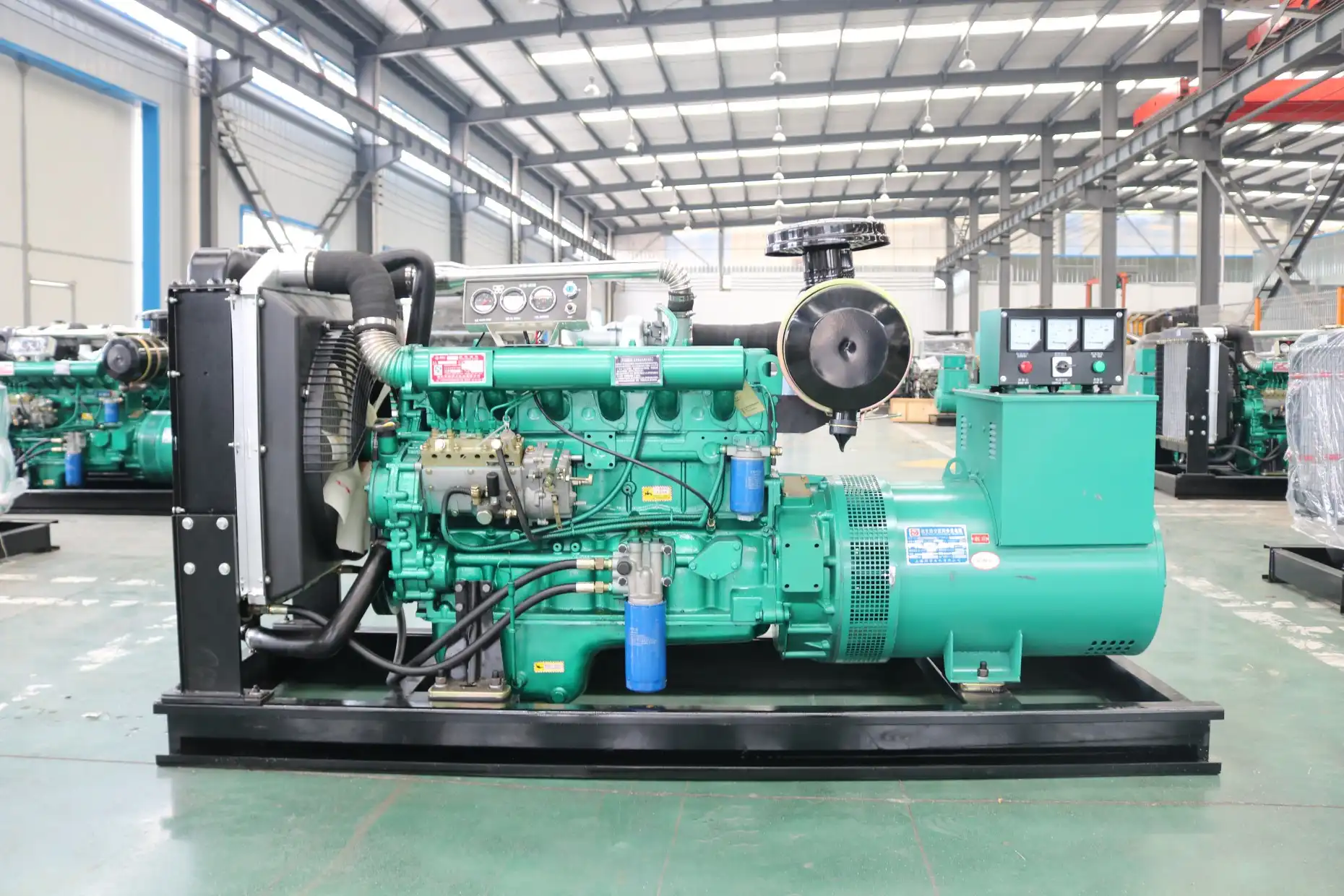

diesel generator set 100kva

Diesel Generator Set 100kVA Description

Our diesel generator set 100kva is designed for demanding environments like construction sites, hospitals, and off-grid industrial operations. Built with a heavy-duty engine and smart control panel, it provides stable power during outages or remote operations.

diesel generator set 100kva

Specifications

Rated frequency	Diesel engine	Standard power	Rated current (A)	Rated voltage	Rated frequency	Bore × Stroke (mm)	Rated speed	Type	cylinder	Dimensions (cm)	Weight (kg)
JL-30GF	K4100D	30.1kW	54A	400V/230V	50Hz	100*115	1500rpm	inline four-stroke water-cooled direct injection	4	16565110	500kg
JL-40GF	K4100ZD	41kW	72A	400V/230V	50Hz	100*115	1500rpm		4	16565110	540kg
JL-50GF	ZH4105ZD	55kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17563104	600kg
JL-50GF	R4105ZD	56kW	90A	400V/230V	50Hz	105*125	1500rpm		4	17573110	750kg
JL-75GF	R6105ZD	85kW	135A	400V/230V	50Hz	105*130	1500rpm		6	23473120	900kg
JL-100GF	R6105AZLD	121kW	180A	400V/230V	50Hz	105'130	1500rpm		6	23473120	1000kg
JL-120GF	R61051ZLD	132kW	216A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1050kg
JL-150GF	R6105IZLD	151kW	270A	400V/230V	50Hz	105*135	1500rpm		6	23473120	1100kg
JL-150GF	R6110ZLD	155kW	270A	400V/230V	50Hz	110*135	1500rpm		6	23475130	1120kg

The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose Us?

Proven Expertise: 126 technical staff, including 27 senior engineers, ensure precision.
Global Compliance: Meets CE, ISO8528, and GB/T 2820-97 standards for seamless import/export.
OEM-Ready: Customize branding, fuel types (biodiesel compatible), or control systems.
2-Year Warranty: Covers mechanical and electrical components, backed by 26 overseas service hubs.

Packaging and Delivery

Generator packaging

All units are crated in anti-rust treated, shock-proof packaging. We offer FOB or CIF logistics to Africa/SE Asia via trusted partners.

Company Profile

Generator factory

Founded with 3 R&D centers and 11 Chinese branches, Wuhan Jlmech serves as an OEM partner for Cummins, Perkins, and MTU. Our automated production lines and 52-engineer team guarantee military-grade quality.

Factory After-Sales Service

A dedicated support team resolves issues within 48 hours, with spare parts stocked in regional warehouses.

Certification

Certificate

Our products hold CE, GS, ISO8528, and ISO14001 certifications.

Exhibitions

Exhibition

We showcase innovations annually at PowerGen Asia and Africa Energy Forum.

FAQ

Q: Can this generator run on biodiesel?
A: Yes, with minor modifications.

Q: What's the lead time for 10 units?
A: 25-30 days, including customization.

Q: Do you provide load bank testing reports?
A: Yes, compliant with ISO8528 standards.

Q: Is remote monitoring available?
A: Optional IoT-enabled controllers for real-time diagnostics.

Power Your Projects with Confidence

Whether you're a procurement manager in Nigeria or a data center operator in Vietnam, our diesel generator set 100kva offers unmatched reliability. Contact us at skala@whjlmech.com for bulk quotes or technical specs. Let Wuhan Jlmech be your partner in keeping the lights on—anytime, anywhere.
