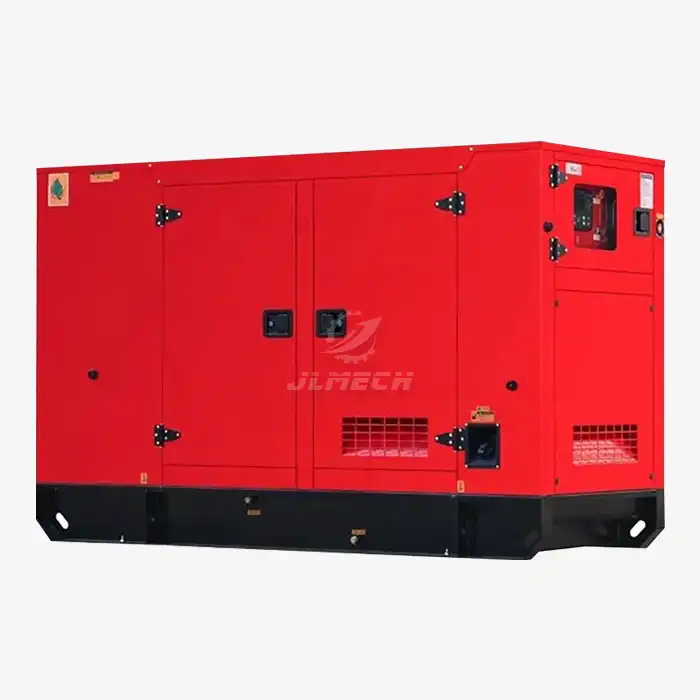

School emergency generator

AC Output(KW)：20-3000KW
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted School Emergency Generator Manufacturer & Supplier

When the power goes out in an educational environment, it's more than an inconvenience - it's a potential threat to student safety and learning continuity. A dedicated School emergency generator provides the critical backup power needed to maintain safe, functional, and productive educational environments during unexpected outages.

School Emergency Generator Description

Safety and Security Assurance

A School emergency generator serves as the foundation for campus safety during power emergencies:

Emergency lighting and exit signage to ensure safe evacuation pathways
Continuous operation of security systems including access control, surveillance cameras, and alarm systems
Power for fire detection and suppression systems that protect students and facilities
HVAC emergency operation to maintain air quality and temperature control

Educational Continuity

Beyond safety, these generators preserve the academic mission:

Uninterrupted power for critical IT infrastructure including servers and network equipment
Protection for scientific research and laboratory equipment that requires constant power
Continued operation of administrative systems for student records and communication platforms
Support for distance learning capabilities and multimedia teaching tools

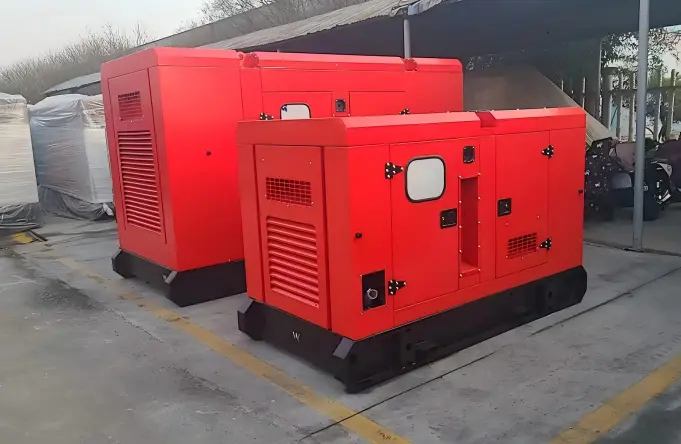

School emergency generator

Specifications

Model	Power （KW）	Power (KVA)	Current (A)	Engine model	Cylinder	Bore*Stroke(mm)	Displacement(L)	Lube oil(L)	Consumption (g/kw.h)	Size (mm)	Weight (Kg)
JL-20GF	20	25	36	WP2.3D25E200	4	89*92	2.289	8	224	18009001270	755
JL-30GF	30	37.5	54	WP2.3D33E200	4	89*92	2.289	8	212	18009001300	800
JL-60GF	60	75	108	WP4.1D66E200	4	105*118	4.087	13	235	19509201340	1100
JL-70GF	70	87.5	126	WP4.1D80E200	4	105*118	4.087	13	235	18507001200	1000
JL-80GF	80	100	144	WP4.1D100E200	4	105*130	4.5	10	203	22008001340	1250
JL-90GF	90	112.5	162	WP4D100E200	4	105*118	4.5	13	201	22008001340	1250
JL-120GF	120	150	216	WP60132E200	6	105*130	6.75	18	205	24708301450	1350
JL-132GF	132	165	238	WP6D152E200	6	105*130	6.75	18	205	24709301450	1400
JL-150GF	150	87.5	270	WP60167E200	6	105*130	6.75	18	201	25509501300	1430
JL-180GF	180	225	324	WP10D200E200	6	126*130	9.726	24	215	275010501400	1880
JL-200GF	200	250	360	WP10D238E200	6	126*130	9.726	24	215	275010501500	2100
JL-220GF	220	275	396	WP10D264E200	6	126*130	9.726	24	215	290011001550	2200
JL-280GF	280	350	504	WP10D320E200	6	126*130	9.726	24	210	290011001800	2200
JL-280GF	280	350	504	WP12D317E200	6	125*155	11.596	24	210	290012001800	2300
JL-350GF	350	437.5	630	WP13D385E200	6	127*165	12.54	36	210	300010001850	2500
JL-350GF	350	437.5	630	WP13D405E200	6	127*165	12.54	36	200	300010001850	2600
JL-400GF	400	500	720	6M26D447E200	6	150*150	15.9	52	197	350015001800	4000
JL-440GF	440	550	792	6M26D484E200	6	150*150	15.9	52	210	350015001800	4100
JL-500GF	500	625	900	6M33D572E200	6	150*185	19.6	61	210	360015001850	5000
JL-550GF	550	687.5	990	6M33D633E200	6	150*185	19.6	61	210	360015001900	5500
JL-600GF	600	750	1080	6M33D670E200	6	150*185	19.6	61	210	365015001900	6000

The rotational speed in the above Weichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.

Why Choose US?

Proven Expertise: 27 senior engineers refine designs for reduced noise and emissions.
Global Compliance: Meet EU, African, and Asian regulatory standards effortlessly.
Hybrid Readiness: Integrate solar/battery systems for hybrid energy cost savings.
OEM-Grade Quality: Components from Cummins, Stamford, and Leroy-Somer ensure longevity.
2-Year Warranty: Full coverage for mechanical and electrical parts.

Packaging and Delivery

Generator packaging

Every School emergency generator is crated in anti-rust treated wood, with shock-absorbent padding and waterproof wrapping. We ship via DDP incoterms to Africa, Southeast Asia, and Europe within 15–30 days.

Company Profile

Generator factory

With 11 branches in China and 26 overseas offices, Wuhan Jlmech serves clients in 40+ countries. Our 126 technical staff and automated assembly lines guarantee precision in every School emergency generator.

Factory After-Sales Service

Enjoy free remote troubleshooting, on-site repairs in 48 hours (Asia/Africa), and genuine spare parts access.

Certification

Certificate

ISO9001, ISO14001, CE, and EPA-compliant manufacturing processes.

Exhibitions

Exhibition

Showcased at PowerGen Asia, Middle East Energy, and Bauma China.

FAQ

Q: Can your generators withstand extreme temperatures?
A: Yes! Units are tested from -20°C to 55°C for desert or Arctic use.

Q: Do you offer leasing options?
A: Flexible CAPEX/OPEX models available for phased deployments.

Q: How do I verify noise levels?
A: We provide third-party test reports with every shipment.

Q: Can I customize the canopy color?
A: Choose from RAL codes or corporate branding.

Ready to Upgrade to Silent Power?

Join 500+ enterprises relying on Wuhan Jlmech's School emergency generator for noiseless, dependable energy. Contact us at skala@whjlmech.com for bulk quotes or hybrid solutions.
