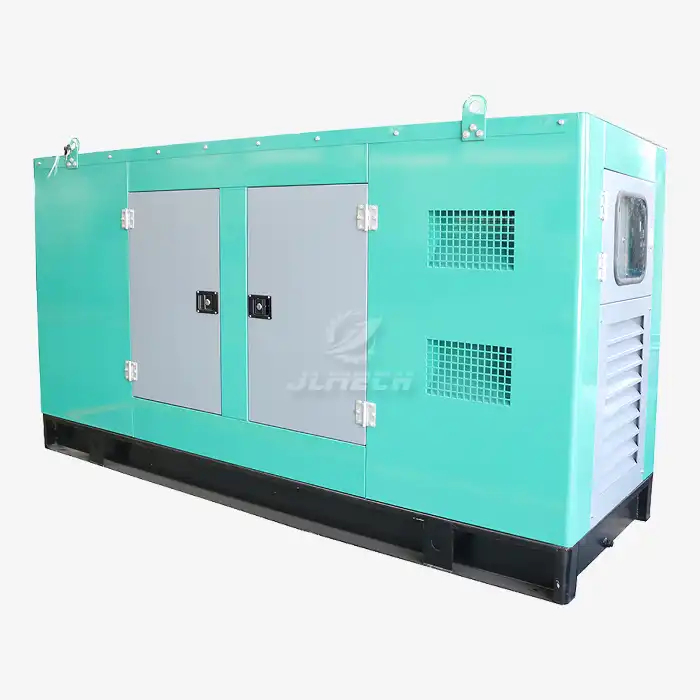

Construction diesel set
Rated AC Voltage(V)：380/400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Construction Diesel Set Manufacturer & Supplier
As a professional generator manufacturer with over 20 years of experience, our factory specializes in designing and building power solutions that withstand the toughest working conditions. We understand the unique challenges of construction environments, which is why our Construction diesel set is purpose-built to deliver reliable performance where it matters most—on your job site.
Rugged Construction and Advanced Efficiency
Built for Tough Environments: Our Construction diesel set features a heavy-duty steel frame, anti-vibration mounts, and IP23-rated protection against dust, moisture, and debris, ensuring uninterrupted operation even in the most demanding settings.
Exceptional Fuel Efficiency: Equipped with electronically controlled engines and eco-mode operation, this set reduces fuel consumption by up to 20%, lowering operational costs and minimizing environmental impact.
Low Maintenance Design: Simplified service points, extended filter change intervals, and corrosion-resistant components reduce downtime and maintenance efforts, keeping projects on schedule.
Reliable Power Output: Provides stable voltage (±1%) and frequency (±0.5%) to operate sensitive tools and machinery without interruption, from concrete mixers to welding equipment.
Mobility and Flexibility: Available in skid-mounted or trailer-ready configurations for easy transport and rapid deployment across changing job site conditions.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore * Stroke(mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The rotational speed in the above Ricardo generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Quiet Engineering: proprietary “WhisperTech” design reduces noise by 40% compared to standard hoods
- Rapid Customization: Voltage / Frequency / Noise levels can be customized within 72 hours
- Hybrid Cooling: Dual airflow system to prevent overheating in confined spaces
- Global Compliance: professional certificates available
- Lifetime support: 24/7 technical hotline with guaranteed response within 24 hours
Packaging and Delivery
Construction diesel set is crated in anti-corrosion wooden frames and shipped globally via air, sea, or land.
Company Profile
With 3 R&D centers, 11 Chinese branches, and 26 overseas offices, Wuhan Jlmech serves clients in 40+ countries.
Factory After-Sales Service
Enjoy 24/7 technical support, on-site maintenance, and spare parts availability within 72 hours.
Certification
Our products meet CE, GS, ISO8528, and ISO14001 standards.
Exhibitions
We showcase innovations at global trade fairs like POWER-GEN Asia and Middle East Energy.
FAQ
Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.
Q: Can the generator integrate with solar/hybrid systems?
A: Yes, we offer customizable hybrid configurations.
Q: Do you provide load bank testing?
A: All units undergo 8-hour load testing before delivery.
Power Your Projects with Confidence
Whether for emergency backup, construction sites, or data centers, our Construction diesel set ensures uninterrupted operations. Contact us at skala@whjlmech.com to discuss bulk pricing or custom requirements. Wuhan Jlmech — where innovation meets reliability.
