What is a parallel connection on a generator?

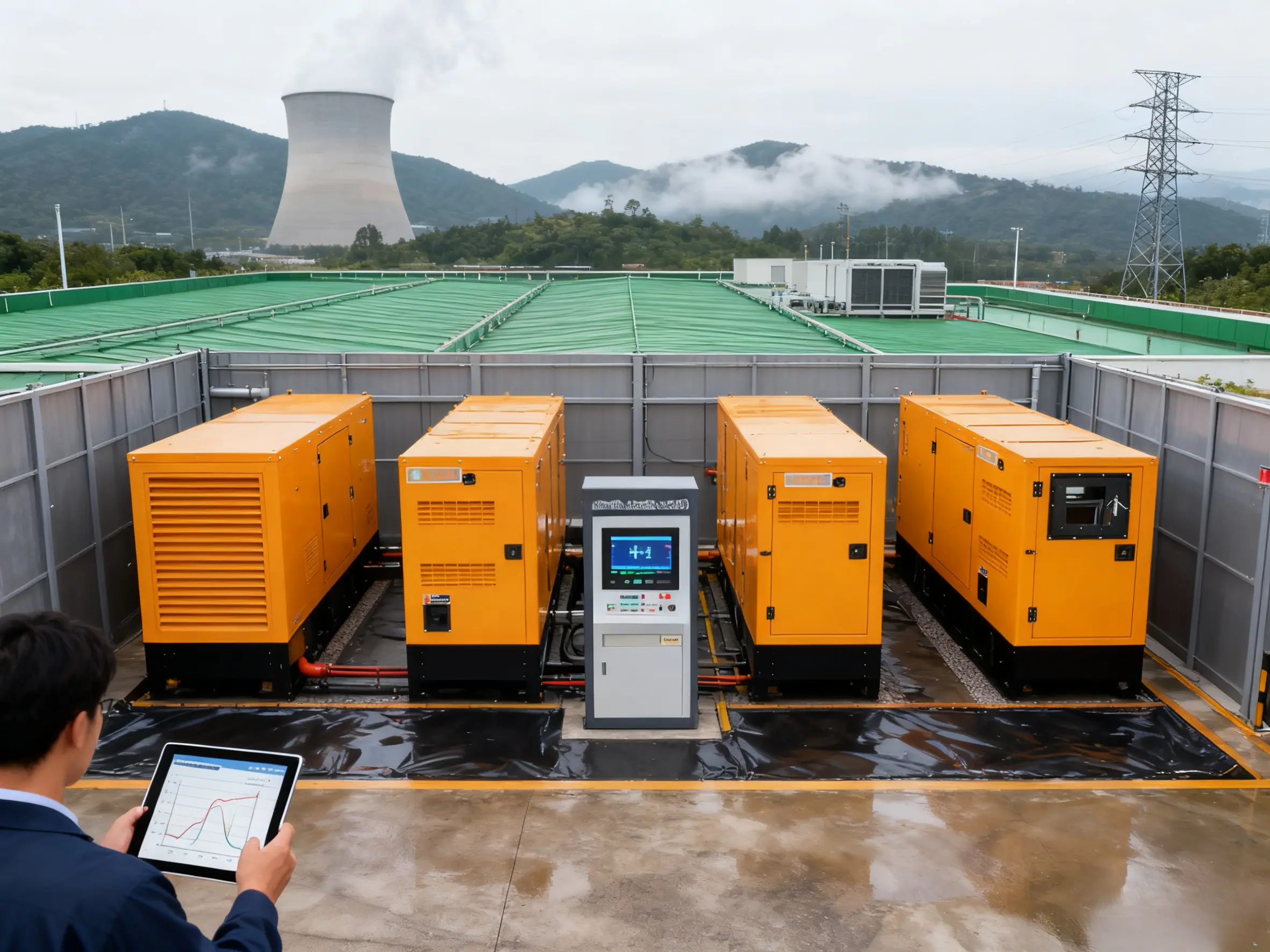

Imagine needing more power than your current generator can provide, but instead of buying a completely new, larger unit, you can simply connect two smaller generators together to double your power output. This is exactly what a parallel capable generator allows you to do. A parallel capable generator is designed to be safely and efficiently connected to another compatible generator, combining their power to meet higher electrical demands. This functionality provides incredible flexibility, allowing you to scale your power supply as your needs grow. Understanding how a parallel capable generator works can save you significant money and provide crucial backup, ensuring you never run short of reliable electricity.

The Basic Concept

At its core, parallel connection is like having two horses pull a single carriage instead of one. Individually, each horse has its limits, but when they work together in a coordinated way, they can pull a much heavier load.

• Combining Power: Two or more generators are linked together using a special parallel connection kit, which typically includes cables and a control module .

• Single Output: This system combines their electrical outputs, allowing you to power equipment that would normally require a much larger, single generator.

• Synchronized Operation: For this to work safely, the generators must be synchronized, meaning their voltage, frequency, and phase are matched before connection .

This process transforms individual units into a single, more powerful power source, offering a flexible solution for growing energy demands.

How Parallel Connection Works

Connecting generators in parallel isn't as simple as plugging them together with a standard cable. It requires a precise and controlled process to ensure safety and equipment integrity.

• The Synchronization Requirement: Before closing the connection, the generators must be synchronized. This means the output voltage of the incoming generator should be effectively equal to that of the running system, and their frequencies should be very close .

• The "Paralleling Kit": A parallel capable generator is designed to work with a specific paralleling kit. This kit often includes a special cable and sometimes a dedicated control panel or module that manages the synchronization process, monitors the units, and ensures balanced operation .

• Automatic Management: In many modern systems, the control module automatically manages the engine speed and voltage output of each generator, ensuring they share the electrical load evenly and operate in harmony.

Primary Advantages

The ability to parallel generators offers several compelling benefits for both casual users and industrial operations.

• Increased Power Output: The most obvious advantage. By connecting two units, you can effectively double your available power. For example, two Honda EU10i generators, each providing 1000W maximum output, can be linked to deliver 2,000W .

• Enhanced Redundancy and Reliability: In critical applications, having multiple paralleled generators creates built-in redundancy. If one unit needs maintenance or fails, the others can continue to provide power, ensuring operational continuity .

• Scalability and Flexibility: A parallel system is inherently scalable. You can start with one generator and add another as your power needs increase. This is far more flexible and often more cost-effective than replacing a single unit with a larger one.

• Improved Portability and Storage: Sometimes, it's easier to transport and store two smaller, lighter generators than one very large and heavy unit.

Common Applications

Parallel generator systems are used in a wide variety of scenarios.

• Recreational Use: Camping, RV trips, and tailgating where you might need to power a small air conditioner or multiple appliances that exceed a single portable generator's capacity.

• Construction Sites: Powering an array of high-wattage tools and equipment without needing to invest in a massive, industrial-sized generator from the outset.

• Emergency Backup Power: Providing reliable, scalable backup power for homes or small businesses. You can start with a system that covers essential loads and expand it to power more of your property.

• Events and Disaster Relief: Offering a flexible and reliable power source for outdoor events, food trucks, or emergency response efforts where power demands can be high and variable.

Technical Requirements

To successfully parallel generators, specific technical conditions must be met.

• Voltage and Frequency: The voltage effective value and frequency (Hz) of the generators must be equal or very close before they are connected .

• Phase and Waveform: The generators must have the same number of phases (e.g., both single-phase or both three-phase), and their voltage waveforms should match .

• Phase Sequence: The phase sequence (the order in which the voltage waveforms reach their peak) must be identical .

• Parallel-Compatible Design: Crucially, the generators must be specifically designed for parallel operation. Not all generators are, and attempting to parallel incompatible units can cause severe damage.

Limitations and Considerations

While powerful, parallel systems also have important limitations to keep in mind.

• Not All Generators Can Be Paralleled: You cannot arbitrarily connect any two generators. They must be parallel capable generator models, and often they need to be the same brand and model for the control systems to communicate properly.

• Uneven Load Sharing: If the system is not properly set up, there is a risk that one generator will carry more of the load than the other, leading to inefficiency and potential overload of one unit .

• Increased Complexity: Operating a parallel system adds a layer of complexity compared to running a single generator. Users must understand the synchronization process and safety procedures.

• Initial Investment: While scalable, the initial cost of purchasing two generators and the required paralleling kit can be higher than buying a single generator of equivalent total power.

Choosing the Right System

Selecting the right components is key to a successful parallel setup.

• Match Your Models: For the most reliable performance, use identical generator models. This ensures their electrical characteristics and control systems are compatible.

• Invest in the Proper Kit: Always use the manufacturer-approved paralleling kit designed specifically for your generator models. This is not an area for makeshift solutions.

• Assess Your Power Needs: Calculate both your starting and running wattage requirements to determine if a single generator will suffice or if a parallel system is necessary.

• Consult an Expert: If you are unsure about any aspect of the process, consult with a generator dealer or a qualified electrician to ensure a safe and code-compliant installation.

Conclusion

A parallel capable generator is a smart, forward-thinking investment that provides the flexibility to grow your power supply alongside your needs. It offers a powerful alternative to purchasing a single, larger unit, granting you the benefits of scalability, redundancy, and often, improved portability. By understanding the principles, advantages, and requirements of a parallel connection, you can make an informed decision on whether this system is the right solution for your power generation needs.
