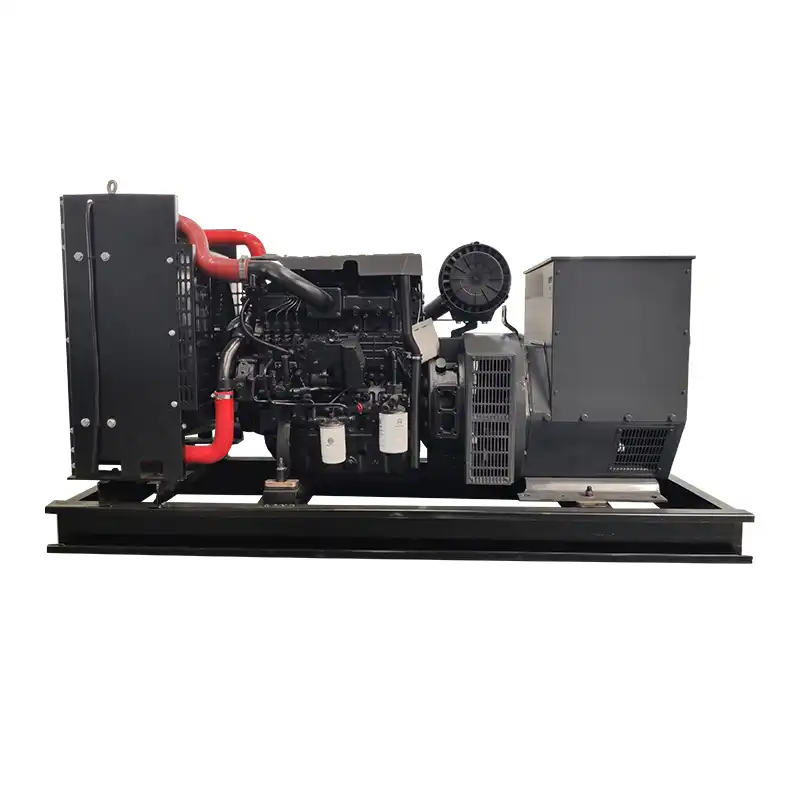

Emergency generator unit
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted Mute Diesel Generator Manufacturer & Supplier
As a direct manufacturer of power generation equipment, we specialize in producing high-reliability Emergency generator unit solutions. Our factory-direct approach ensures stringent quality control, cost efficiency, and full customization capability—enabling us to deliver emergency power systems that precisely match the demands of global clients across industries.
Mute Diesel Generator Description
Our Emergency generator unit is engineered to provide fail-safe power backup with an emphasis on reliability, seamless operation, and critical load protection:
Instant Response: Integrated automatic transfer switch (ATS) ensures uninterrupted transition from grid to generator power within seconds.
Exceptional Reliability: Features industrial-grade diesel engines and Class H insulation alternators for sustained operation under full load.
Critical Load Protection: Advanced voltage regulation (±0.5%) and harmonic distortion control (<3% THD) safeguard sensitive equipment such as medical devices, servers, and control systems.
All-Environment Durability: Corrosion-resistant canopies, heavy-duty chassis, and IP-rated protection ensure performance in harsh conditions.
Intelligent Control System: Real-time monitoring, self-diagnostics, cloud connectivity, and remote management via LCD interface.
Specifications
| Model | Power （KW） | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke(mm) | Displacement(L) | Lube oil(L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 89*92 | 2.289 | 8 | 224 | 1800*900*1270 | 755 |
| JL-30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 89*92 | 2.289 | 8 | 212 | 1800*900*1300 | 800 |
| JL-60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1950*920*1340 | 1100 |
| JL-70GF | 70 | 87.5 | 126 | WP4.1D80E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1850*700*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | WP4.1D100E200 | 4 | 105*130 | 4.5 | 10 | 203 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D100E200 | 4 | 105*118 | 4.5 | 13 | 201 | 2200*800*1340 | 1250 |
| JL-120GF | 120 | 150 | 216 | WP60132E200 | 6 | 105*130 | 6.75 | 18 | 205 | 2470*830*1450 | 1350 |
| JL-132GF | 132 | 165 | 238 | WP6D152E200 | 6 | 105*130 | 6.75 | 18 | 205 | 2470*930*1450 | 1400 |
| JL-150GF | 150 | 87.5 | 270 | WP60167E200 | 6 | 105*130 | 6.75 | 18 | 201 | 2550*950*1300 | 1430 |
| JL-180GF | 180 | 225 | 324 | WP10D200E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1400 | 1880 |
| JL-200GF | 200 | 250 | 360 | WP10D238E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1500 | 2100 |
| JL-220GF | 220 | 275 | 396 | WP10D264E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2900*1100*1550 | 2200 |
| JL-280GF | 280 | 350 | 504 | WP10D320E200 | 6 | 126*130 | 9.726 | 24 | 210 | 2900*1100*1800 | 2200 |
| JL-280GF | 280 | 350 | 504 | WP12D317E200 | 6 | 125*155 | 11.596 | 24 | 210 | 2900*1200*1800 | 2300 |
| JL-350GF | 350 | 437.5 | 630 | WP13D385E200 | 6 | 127*165 | 12.54 | 36 | 210 | 3000*1000*1850 | 2500 |
| JL-350GF | 350 | 437.5 | 630 | WP13D405E200 | 6 | 127*165 | 12.54 | 36 | 200 | 3000*1000*1850 | 2600 |
| JL-400GF | 400 | 500 | 720 | 6M26D447E200 | 6 | 150*150 | 15.9 | 52 | 197 | 3500*1500*1800 | 4000 |
| JL-440GF | 440 | 550 | 792 | 6M26D484E200 | 6 | 150*150 | 15.9 | 52 | 210 | 3500*1500*1800 | 4100 |
| JL-500GF | 500 | 625 | 900 | 6M33D572E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3600*1500*1850 | 5000 |
| JL-550GF | 550 | 687.5 | 990 | 6M33D633E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3600*1500*1900 | 5500 |
| JL-600GF | 600 | 750 | 1080 | 6M33D670E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3650*1500*1900 | 6000 |
The rotational speed in the above Weichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 27 senior engineers refine designs for reduced noise and emissions.
- Global Compliance: Meet EU, African, and Asian regulatory standards effortlessly.
- Hybrid Readiness: Integrate solar/battery systems for hybrid energy cost savings.
- OEM-Grade Quality: Components from Cummins, Stamford, and Leroy-Somer ensure longevity.
- 2-Year Warranty: Full coverage for mechanical and electrical parts.
Packaging and Delivery
Every Emergency generator unit is crated in anti-rust treated wood, with shock-absorbent padding and waterproof wrapping. We ship via DDP incoterms to Africa, Southeast Asia, and Europe within 15–30 days.
Company Profile
With 11 branches in China and 26 overseas offices, Wuhan Jlmech serves clients in 40+ countries. Our 126 technical staff and automated assembly lines guarantee precision in every mute diesel generator.
Factory After-Sales Service
Enjoy free remote troubleshooting, on-site repairs in 48 hours (Asia/Africa), and genuine spare parts access.
Certification
ISO9001, ISO14001, CE, and EPA-compliant manufacturing processes.
Exhibitions
Showcased at PowerGen Asia, Middle East Energy, and Bauma China.
FAQ
Q: Can your generators withstand extreme temperatures?
A: Yes! Units are tested from -20°C to 55°C for desert or Arctic use.
Q: Do you offer leasing options?
A: Flexible CAPEX/OPEX models available for phased deployments.
Q: How do I verify noise levels?
A: We provide third-party test reports with every shipment.
Q: Can I customize the canopy color?
A: Choose from RAL codes or corporate branding.
Ready to Upgrade to Silent Power?
Join 500+ enterprises relying on Wuhan Jlmech's Emergency generator unit for noiseless, dependable energy. Contact us at skala@whjlmech.com for bulk quotes or hybrid solutions.
