Warehouse diesel generator

AC Output(KW):20KW-2000KW
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4/6/12 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Standby Generator 20kVA Partner

As a specialized manufacturer of industrial power solutions, we provide robust warehouse diesel generator systems engineered to maintain continuous operation of critical logistics infrastructure. Our technical team designs each warehouse diesel generator to meet the specific power requirements of modern warehouse facilities, ensuring protection against operational disruptions and financial losses due to power outages.

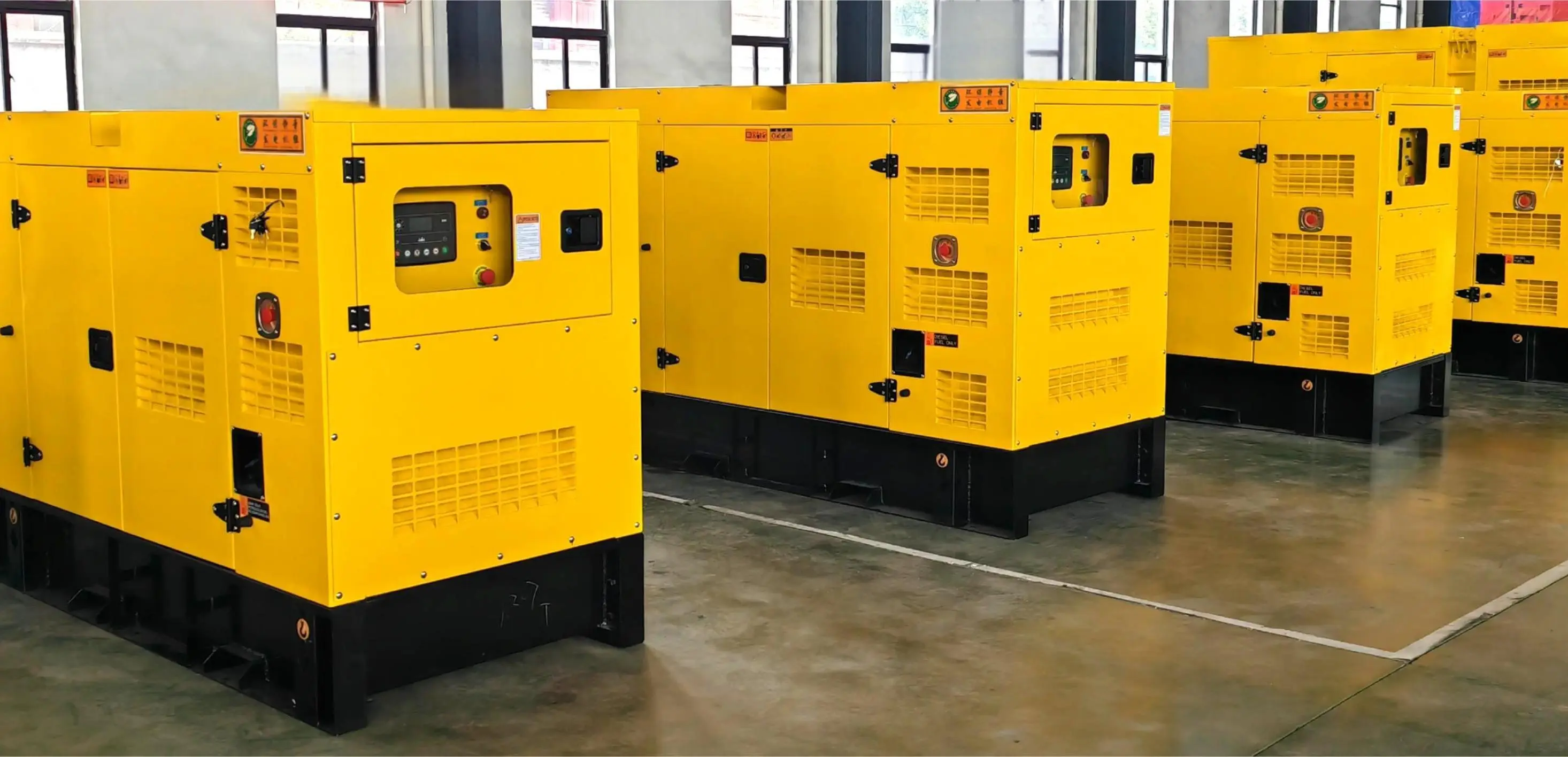

Warehouse diesel generator

Critical Power Requirements for Warehouse Operations

Modern warehouse facilities demand power solutions that address several essential operational needs:

Uninterrupted Climate Control: Consistent power for refrigeration units and temperature management systems to preserve inventory integrity
Continuous Material Handling: Reliable operation for automated sorting systems, conveyor belts, and robotic handling equipment
Data System Protection: Seamless power transition for warehouse management systems, servers, and inventory tracking technology
Safety & Security Assurance: Non-stop operation of emergency lighting, surveillance systems, and access control mechanisms

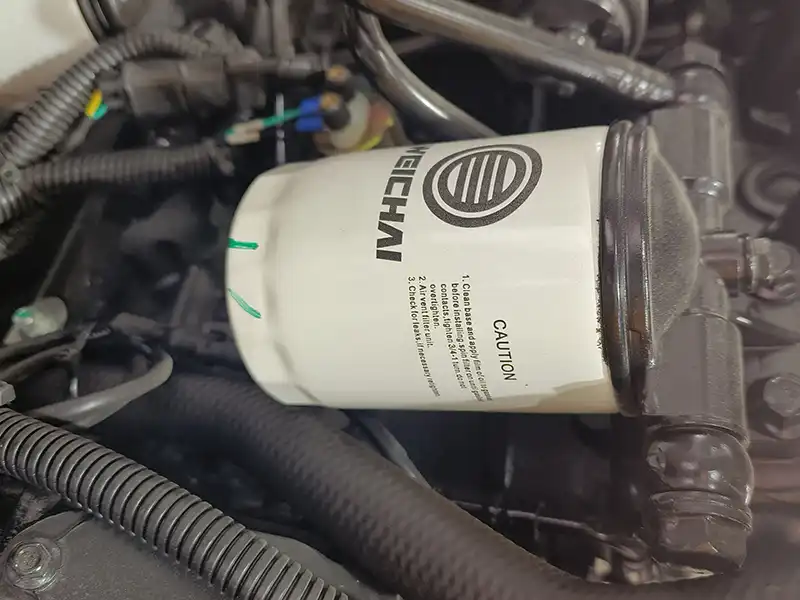

Standby generator 20kVA

Specifications

Model	Power	Power	Current	Engine model	Cylinder	Bore*Stroke	Displacement	Lube oil	Consumption	Size	Weight
Model	KW	KVA	A	Engine model	Cylinder	mm	L	L	g/kw.h	mm	KG
JL-20GF	20	25	36	WP2.3D25E200	4	89*92	2.289	8	224	18009001270	755
JL-30GF	30	37.5	54	WP2.3D33E200	4	89*92	2.289	8	212	18009001300	800
JL-36GF	36	45	65	WP2.3D40E200	4	89*92	2.289	8	216	18009001300	800
JL-40GF	40	50	72	WP2.3D48E200	4	89*92	2.3	8	220	18009001300	800
JL-60GF	60	75	108	WP4D66E200	4	105*130	4.5	10	208	19509201340	1100
JL-60GF	60	75	108	WP4.1D66E200	4	105*118	4.087	13	235	19509201340	1100
JL-70GF	70	87.5	126	WP4.1D80E200	4	105*118	4.087	13	235	18507001200	1000
JL-80GF	80	100	144	WP4.1D100E200	4	105*130	4.5	10	203	22008001340	1250
JL-90GF	90	112.5	162	WP4D100E200	4	105*118	4.5	13	201	22008001340	1250
JL-90GF	90	112.5	162	WP4D108E200	4	105*130	4.5	10	205	22008201340	1250
JL-120GF	120	150	216	WP60132E200	6	105*130	6.75	18	205	24708301450	1350
JL-132GF	132	165	238	WP6D152E200	6	105*130	6.75	18	205	24709301450	1400
JL-150GF	150	87.5	270	WP60167E200	6	105*130	6.75	18	201	25509501300	1430

The Weichai series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.

The Weichai diesel generator set has passed the "Three Highs" test and can operate stably in an environment ranging from -40°C to 50°C. The turbocharged intake system ensures that the power will not decay in high-altitude areas. It is equipped with a low-temperature starting device as standard and can start normally at -30°C.

Why Choose US?

Scalable Power: Use single units for small sites or combine multiple generators for larger demands.
Proven Durability: Built with heavy-duty components tested in African and Southeast Asian climates.
OEM Expertise: We supply engines for Cummins, Perkins, and MTU, ensuring premium quality.
2-Year Warranty: Full coverage for mechanical and electrical parts.

Bulk Purchase Advantages

Cost Savings: Volume discounts and flexible payment terms (LC, TT).
Customization: Modify voltage, fuel tanks, or control panels to meet project needs.
Fast Logistics: Sea/air shipping with door-to-door delivery via our overseas offices.

About Wuhan Jlmech Co., Ltd.

Generator factory

With 126 technical experts and 11 branches across China, we're leaders in power generation solutions. Our automated production lines and strict quality control (ISO9001) guarantee every Warehouse diesel generator meets global performance benchmarks.

Packaging & Delivery

Generator packaging

Wooden crates with anti-rust treatment; global shipping in 7–20 days.

After-Sales Service

24/7 support, spare parts supply, and maintenance training.

Certifications

Certificate

CE, CSA, UL, ISO9001, and ISO14001 certified.

Exhibitions

Exhibition

Featured at PowerGen Africa and ASEAN Energy Summit.

FAQ

Q: What's the lead time for 50 units?
A: 30–45 days with bulk order prioritization.

Q: Do you provide onsite installation?
A: Yes, through our technicians in Africa and Southeast Asia.

Need a Quote?

Email skala@whjlmech.com for Warehouse diesel generator pricing, technical specs, or OEM partnerships. Let's power your projects with reliability!
