Overload Protection Diesel Generator Set
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase

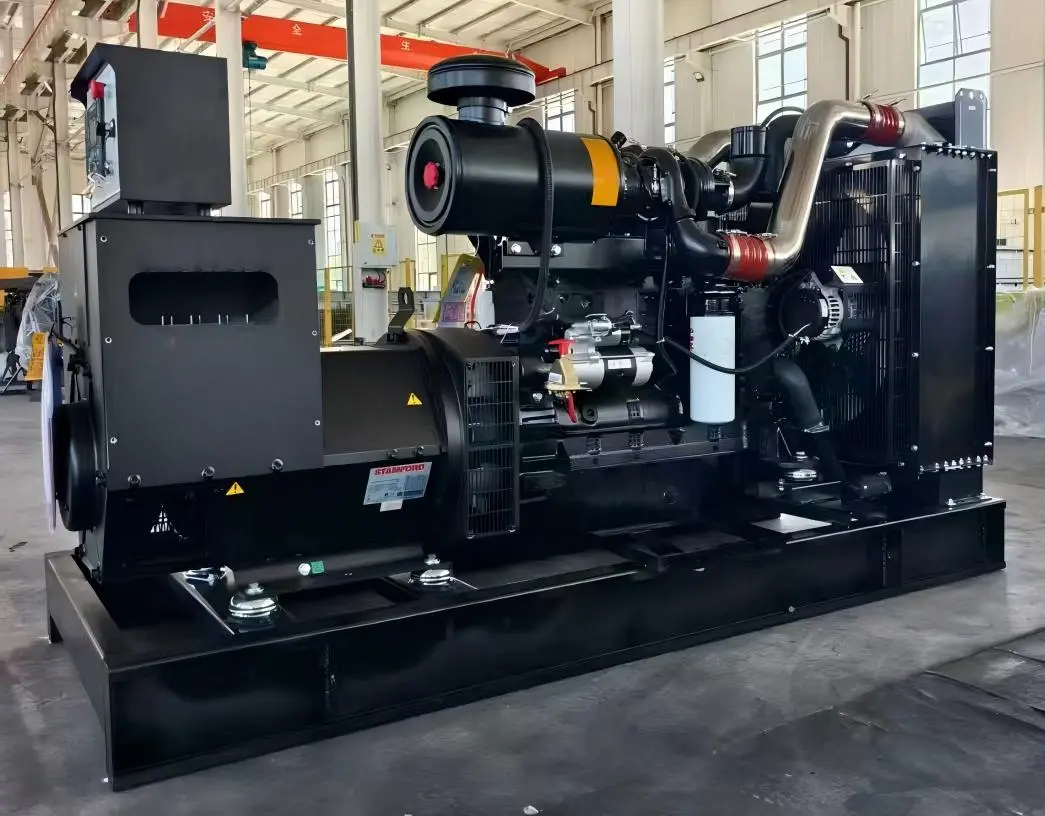

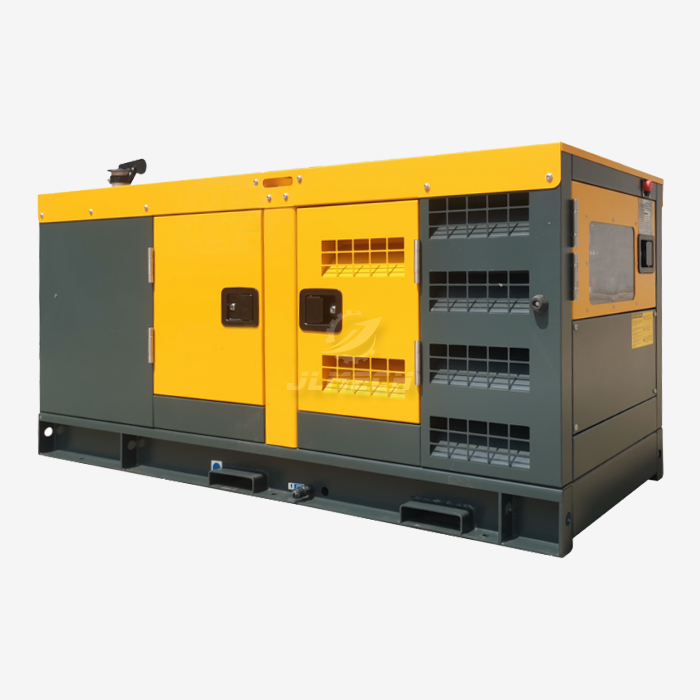

Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted Overload Protection Diesel Generator Set Partner
When a sudden load spike threatens to crash your operations, the Overload Protection Diesel Generator Set acts as your silent guardian. Designed for mission-critical environments, this diesel-powered solution doesn’t just supply backup power – it intelligently defends your equipment from destructive overloads, protecting hospitals, data centers, and factories from six-figure downtime losses.
Beyond Basic Safety: How Our Overload Protection Works
Standard generators often fail catastrophically during load surges. Our technology responds with surgical precision:
Three-Stage Defense System：
Instant Detection (0-150% load spike)
- 200x/sec current monitoring (10x industry standard)
- Response: Maintains stable output for 60 seconds – enough to handle large motor startups
Sustained Protection (110-125% overload)
- Active voltage correction via industrial-grade AVR
- Response: Continuous operation for 1 hour without derating
Critical Intervention (>125% overload)
- Gradual ramp-down with multi-channel alerts (sound/SMS/cloud)
- Response: Prevents thermal damage to windings and engine
Specifications
| Genset model | Power(kw) | current | Engine model | Cylinders | Bore*stroke | Displacement | Oil capacity | Fuel consumption rate | Dimensionsmm | Gross weight | |
| KW | KVA | A | mm | L | L | g/kw.h | L×W×H | KG | |||
| JL-8GF | 8 | 10 | 14.4 | 403D-11G | 3 | 77*81 | 1.13 | 4.9 | 252 | 1200×700×1100 | 300 |
| JL-11GF | 11 | 13.75 | 19.8 | 403D-15G | 3 | 84*90 | 1.49 | 6.5 | 247 | 1250×700×1100 | 350 |
| JL-16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 2.2 | 11.2 | 245 | 1500×730×1300 | 500 |
| JL-22GF | 22 | 27.5 | 39.6 | 404D-22TG | 4 | 84*100 | 2.2 | 11.2 | 245 | 1600×730×1300 | 550 |
| JL-24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 3.3 | 8.3 | 211 | 1770×750×1600 | 800 |
| JL-36GF | 36 | 45 | 64.8 | 1103A-33TG1 | 3 | 105*127 | 3.3 | 8.3 | 211 | 2050×750×1600 | 920 |
| JL-48GF | 48 | 60 | 86.4 | 1103A-33TG2 | 3 | 105*127 | 3.3 | 8.3 | 215 | 2200×750×1600 | 1050 |
| JL-52GF | 52 | 65 | 93.6 | 1104A-44TG1 | 4 | 105*127 | 4.4 | 8.3 | 208 | 2250×750×1600 | 1100 |
| JL-64GF | 64 | 80 | 115.2 | 1104A-44TG2 | 4 | 105*127 | 4.4 | 8.3 | 208 | 2300×750×1600 | 1150 |
| JL-80GF | 80 | 100 | 144 | 1104C-44TAG2 | 4 | 100*127 | 4.4 | 8.3 | 208 | 2480×760×1600 | 1250 |
| JL-110GF | 110 | 137.5 | 198 | 1006TAG | 6 | 100*127 | 6 | 19 | 208 | 2600×760×1600 | 1400 |
| JL-120GF | 120 | 150 | 216 | 1006TAG2 | 6 | 100*127 | 6 | 19 | 208 | 2650×760×1600 | 1450 |
| JL-140GF | 140 | 175 | 252 | 1106C-E66TAG4 | 6 | 105*127 | 6.6 | 19 | 205 | 2700×900×1600 | 1700 |
| JL-160GF | 160 | 200 | 288 | 1306C-E87TAG3 | 6 | 116*136 | 8.7 | 26.4 | 201 | 3000×1000×1700 | 2100 |
| JL-180GF | 180 | 225 | 324 | 1306C-E87 TAG4 | 6 | 116*136 | 8.7 | 26.4 | 201 | 3000×1000×1700 | 2100 |
| JL-200GF | 200 | 250 | 360 | 1306C-E87 TAG6 | 6 | 116*136 | 8.7 | 26.4 | 201 | 3100×1000×1700 | 2150 |
| JL-280GF | 280 | 350 | 504 | 2206C-E13TAG2 | 6 | 130*157 | 12.5 | 40 | 209 | 3600×1200×2000 | 3200 |
| JL-320GF | 320 | 400 | 576 | 2206C- E13TAG3 | 6 | 130*157 | 12.5 | 40 | 206 | 3650×1200×2000 | 3300 |
| JL-360GF | 360 | 450 | 648 | 2506C-E15TAG1 | 6 | 137*171 | 15.2 | 53 | 211 | 4000×1200×2100 | 3700 |
| JL-400GF | 400 | 500 | 720 | 2506C-E15TAG2 | 6 | 137*171 | 15.2 | 53 | 211 | 4050×1200×2100 | 3760 |
| JL-480GF | 480 | 600 | 864 | 2806A-E18TAG1A | 6 | 145*183 | 18.1 | 55 | 203 | 4100×1600×2200 | 4600 |
| JL-500GF | 500 | 625 | 900 | 2806A-E18TAG2 | 6 | 145*183 | 18.1 | 55 | 202 | 4200×1600×2200 | 4800 |
| JL-580GF | 580 | 725 | 1044 | 4006-23TAG2A | 6 | 160*190 | 22.9 | 113 | 209 | 4500×1800×2300 | 5500 |
| JL-640GF | 640 | 800 | 1152 | 4006-23TAG3A | 6 | 160*190 | 22.9 | 113 | 209 | 4600×1800×2300 | 6000 |
| JL-720GF | 720 | 900 | 1296 | 4008TAG2A | 8 | 160*190 | 30.5 | 153 | 206 | 4800×2100×2500 | 7700 |
| JL-800GF | 800 | 1000 | 1440 | 4008TAG2A | 8 | 160*190 | 30.5 | 153 | 206 | 4900×2100×2500 | 8000 |
| JL-1000GF | 1000 | 1250 | 1800 | 4012-46TWG2A | 12 | 160*190 | 45.8 | 159 | 212 | 5300×2200×2600 | 10000 |
| JL-1200GF | 1200 | 1500 | 2160 | 4012-46TAG2A | 12 | 160*190 | 45.8 | 159 | 212 | 5400×2200×2600 | 11000 |
| JL-1400GF | 1400 | 1750 | 2520 | 4016TAG | 16 | 160*190 | 61.1 | 214 | 205 | 5700×2800×3100 | 13500 |
| JL-1600GF | 1600 | 2000 | 2880 | 4016TAG2A | 16 | 160*190 | 61.1 | 214 | 208 | 5800×2800×3100 | 14000 |
| JL-1800GF | 1800 | 2250 | 3240 | 4016-61TRG3 | 16 | 160*190 | 61.1 | 214 | 205 | 5900×2800×3100 | 15700 |
The generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the relevant parameters separately.
The Perkins diesel generator set performs outstandingly in terms of emission control. It adopts advanced exhaust gas treatment technologies, such as turbocharging, intercooling technology, and an efficient exhaust gas post-treatment system, which can effectively reduce the emission of harmful substances in the exhaust gas, such as nitrogen oxides (NOx), particulate matter (PM), etc.
Why Choose US?
- Global OEM Expertise: We manufacture for Cummins, MTU, and Perkins, ensuring top-tier quality.
- 2-Year Warranty: Covers mechanical and electrical components.
- Customizable Solutions: Tailor voltage, control panels, or soundproofing to your needs.
- 26 Overseas Offices: Swift technical support in Africa and Southeast Asia.
Packaging and Delivery
Overload Protection Diesel Generator Set are crated in anti-corrosion wooden frames and shipped globally via air, sea, or land.
Company Profile
With 11 branches in China and ISO9001/14001 certifications, Wuhan Jlmech specializes in heavy-duty power solutions trusted by brands like Liebherr and Doosan.
Factory After-Sales Service
Our 24/7 support team provides spare parts, maintenance guides, and on-site troubleshooting.
Certification
CE, ISO8528, and GB/T 2820-97 certified for safety and performance.
Exhibitions
We showcase innovations at global trade shows like Bauma China and PowerGen Africa.
FAQ
Q: Can this generator integrate with solar/hybrid systems?
A: Yes! We offer hybrid-ready control panels.
Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.
Q: Do you provide installation training?
A: Absolutely—free manuals and virtual/physical training sessions.
Trusted by Global Industries
From powering Nigerian hospitals to Indonesian data centers, our Overload Protection Diesel Generator Set are the backbone of reliable operations. Need a quote or technical details? Contact our team at skala@whjlmech.com — we're here to keep your business running!
