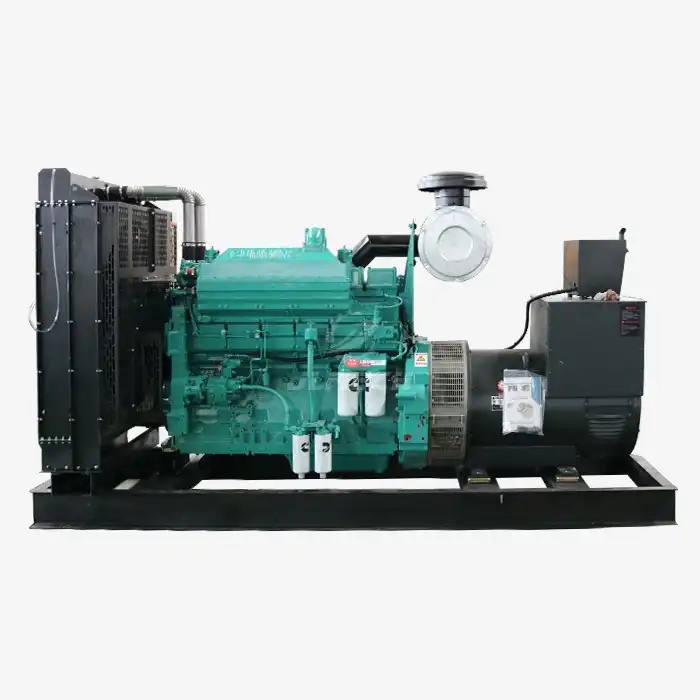

110kVA diesel set
Rated AC Voltage(V):400/380
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: E/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted 110kVA diesel set Manufacturer & Supplier
As a specialized manufacturer with extensive engineering expertise, we produce industrial-grade 110kVA diesel set solutions that deliver reliable performance across multiple applications. Our engineering team configures each 110kVA diesel set to meet specific operational requirements, ensuring optimal power delivery for construction sites, agricultural operations, industrial facilities, and commercial establishments where consistent performance is essential.
Advanced Technical Specifications & Performance Features
Power Generation System: Delivers stable 110kVA (88kW) output with voltage regulation within ±1% and harmonic distortion below 3%, ensuring compatibility with sensitive equipment and industrial machinery
Engine & Fuel Efficiency: Industrial-grade 4-cylinder turbocharged engine with advanced fuel injection system, achieving optimal fuel consumption rates while maintaining consistent performance under variable load conditions
Control & Protection: Comprehensive digital control panel with automatic voltage regulation, multiple protection functions, and remote monitoring capabilities for enhanced operational safety and management efficiency
Durability & Compliance: Robust construction with corrosion-resistant treatments, optional sound-attenuated enclosures (70-78 dBA), and compliance with international emissions standards for global deployment
Our 110kVA diesel set solutions include customized configurations for specific application needs, complete with professional installation guidance, preventive maintenance programs, and global technical support. Each unit undergoes rigorous testing to verify performance under simulated operational conditions, ensuring reliable power delivery when needed most. Backed by international certifications and comprehensive warranty coverage, we provide customers with complete confidence in their power investment.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G1 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-20GF | 20 | 25 | 36.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1620*710*1100 | 900 |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 26 overseas offices and 11 branches ensure localized support.
- OEM Experience: Trusted by Cummins, Doosan, and Liebherr for precision engineering.
- Advanced Facilities: Automated assembly lines and rigorous testing guarantee quality.
- Global Compliance: CE, ISO8528, and emission certifications simplify cross-border procurement.
Packaging and Delivery
All 110kVA diesel set units are securely packed in weatherproof crates with anti-corrosion treatments. Delivery timelines: 15–25 days (standard orders) or customized per bulk requirements.
Company Profile
With 3 R&D hubs and 52 engineers, Wuhan Jlmech combines innovation with practicality. Our 26 overseas offices in Africa and Southeast Asia ensure seamless logistics and after-sales service.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and readily available spare parts.
Certification
ISO9001, ISO14001, CE, and GB/T 2820-97 certified.
Exhibitions
Regular exhibitors at global trade shows like Bauma and PowerGen.
FAQ
Q: What's the lead time for 10+ units?
A: Bulk orders ship within 20 days with priority scheduling.
Q: Do you provide onsite installation support?
A: Our technicians offer global commissioning services.
Power Your Projects with Confidence
Whether you're powering a mining site or securing backup for a data center, our 110kVA diesel set combines rugged reliability with cost-efficiency. Backed by Wuhan Jlmech's 29-year legacy, we're ready to support your energy needs.Contact Us Today: Email skala@whjlmech.com for quotes or technical queries. Let's keep your operations running smoothly!
