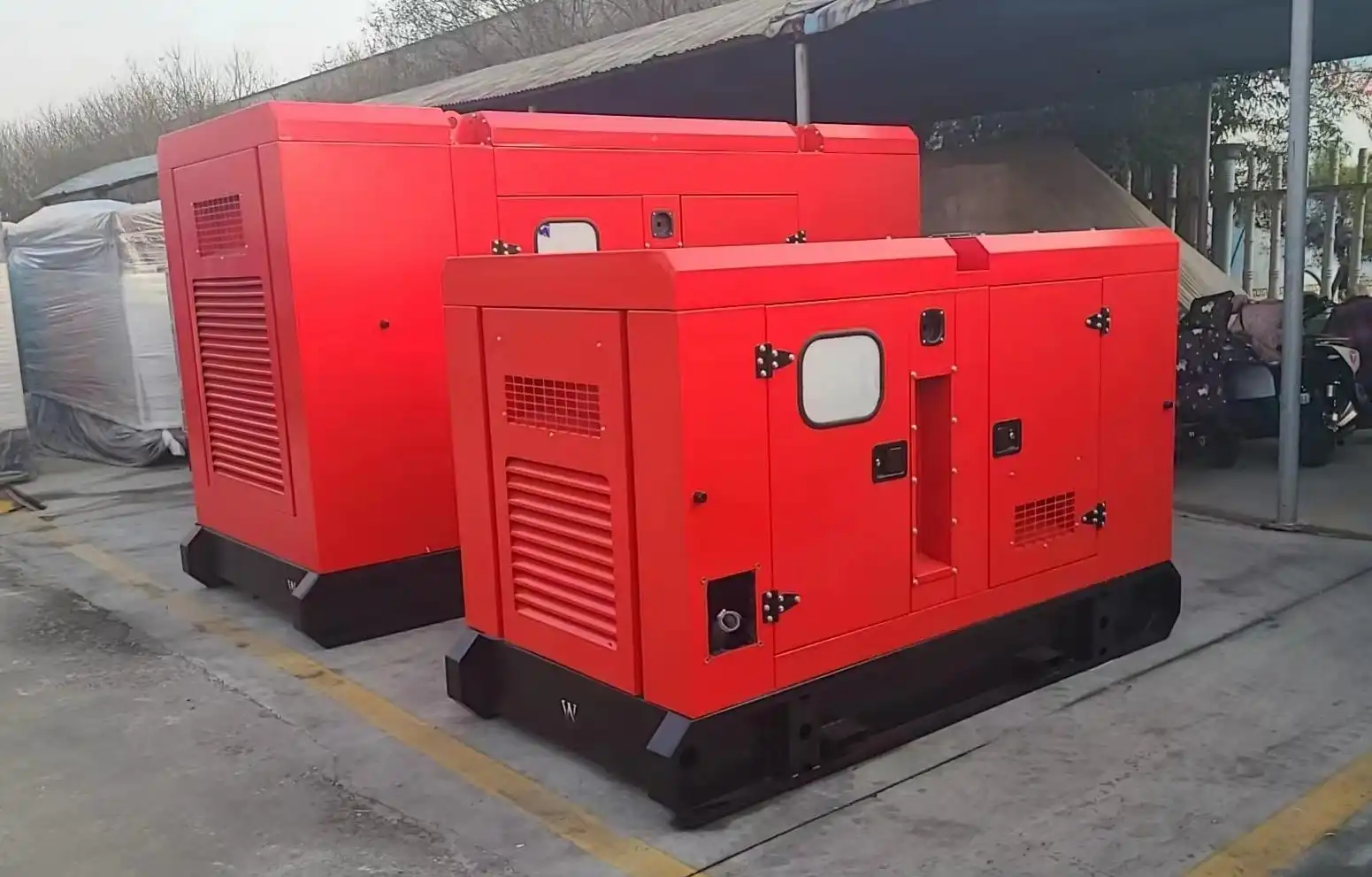

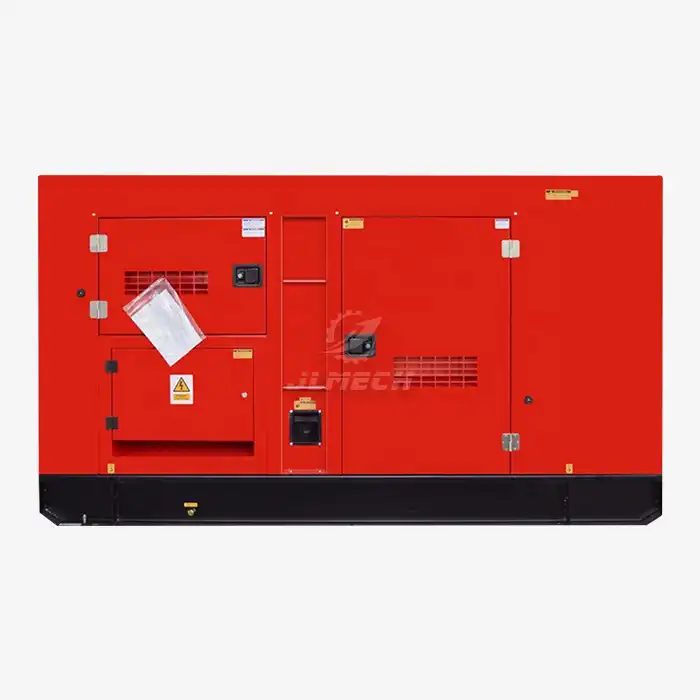

4 Cylinder genetator
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted 4 Cylinder genetator Partner
Wuhan Jlmech Co., Ltd. is a trusted 4 Cylinder genetator supplier with 3 R&D centers and 26 global offices. Our generators combine Weichai's renowned engine technology with ISO-certified manufacturing, ensuring durability, fuel efficiency, and compliance with global standards like CE and ISO8528.
Core Structure and Working Principle of 4 Cylinder genetator
Engine Configuration
- Four-Cylinder Inline Layout: 4 cylinders are arranged in a straight line. The crankshaft completes a full working cycle (intake → compression → power → exhaust) every 720° rotation, resulting in more stable power output.
- Common Displacement: 2.0L–5.0L (e.g., Cummins 4BTA3.9 has a displacement of 3.9L, and Perkins 404D-22 has a displacement of 2.2L).
Power Transmission
- Crankshaft Linkage: Directly connected to the generator rotor via a flywheel or driven by a belt, it converts the reciprocating motion of the piston into rotor rotation, cutting magnetic induction lines to generate electricity (based on the principle of electromagnetic induction).
- Speed Regulation System: Mechanical/electronic governors maintain stable rotational speed (1500/1800 RPM) to ensure the output frequency is 50/60Hz±1%.
Specifications
| Model | Power | Power | Current | Engine model | Cylinder | Bore*Stroke | Displacement | Lube oil | Consumption | Size | Weight |
| KW | KVA | A | mm | L | L | g/kw.h | mm | KG | |||
| JL-20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 89*92 | 2.289 | 8 | 224 | 1800*900*1270 | 755 |
| JL-30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 89*92 | 2.289 | 8 | 212 | 1800*900*1300 | 800 |
| JL-36GF | 36 | 45 | 65 | WP2.3D40E200 | 4 | 89*92 | 2.289 | 8 | 216 | 1800*900*1300 | 800 |
| JL-40GF | 40 | 50 | 72 | WP2.3D48E200 | 4 | 89*92 | 2.3 | 8 | 220 | 1800*900*1300 | 800 |
| JL-60GF | 60 | 75 | 108 | WP4D66E200 | 4 | 105*130 | 4.5 | 10 | 208 | 1950*920*1340 | 1100 |
| JL-60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1950*920*1340 | 1100 |
| JL-70GF | 70 | 87.5 | 126 | WP4.1D80E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1850*700*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | WP4.1D100E200 | 4 | 105*130 | 4.5 | 10 | 203 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D100E200 | 4 | 105*118 | 4.5 | 13 | 201 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D108E200 | 4 | 105*130 | 4.5 | 10 | 205 | 2200*820*1340 | 1250 |
The Weichai series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.
The Weichai diesel generator set has passed the "Three Highs" test and can operate stably in an environment ranging from -40°C to 50°C. The turbocharged intake system ensures that the power will not decay in high-altitude areas. It is equipped with a low-temperature starting device as standard and can start normally at -30°C.
Why Choose US?
- Scalable Power: Use single units for small sites or combine multiple generators for larger demands.
- Proven Durability: Built with heavy-duty components tested in African and Southeast Asian climates.
- OEM Expertise: We supply engines for Cummins, Perkins, and MTU, ensuring premium quality.
- 2-Year Warranty: Full coverage for mechanical and electrical parts.
Bulk Purchase Advantages
- Cost Savings: Volume discounts and flexible payment terms (LC, TT).
- Customization: Modify voltage, fuel tanks, or control panels to meet project needs.
- Fast Logistics: Sea/air shipping with door-to-door delivery via our overseas offices.
About Wuhan Jlmech Co., Ltd.
With 126 technical experts and 11 branches across China, we're leaders in power generation solutions. Our automated production lines and strict quality control (ISO9001) guarantee every 4 Cylinder genetator meets global performance benchmarks.
Packaging & Delivery
Wooden crates with anti-rust treatment; global shipping in 7–20 days.
After-Sales Service
24/7 support, spare parts supply, and maintenance training.
Certifications
CE, CSA, UL, ISO9001, and ISO14001 certified.
Exhibitions
Featured at PowerGen Africa and ASEAN Energy Summit.
FAQ
Q: Can this generator integrate with solar systems?
A: Yes, we offer hybrid control panels for renewable energy compatibility.
Q: What's the lead time for 50 units?
A: 30–45 days with bulk order prioritization.
Q: Do you provide onsite installation?
A: Yes, through our technicians in Africa and Southeast Asia.
Need a Quote?
Email skala@whjlmech.com for 4 Cylinder genetator pricing, technical specs, or OEM partnerships. Let's power your projects with reliability!
