160kW diesel generator
Rated AC Voltage(V):400/380
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: E/Euro 5/EPA/CARB
- Product Description

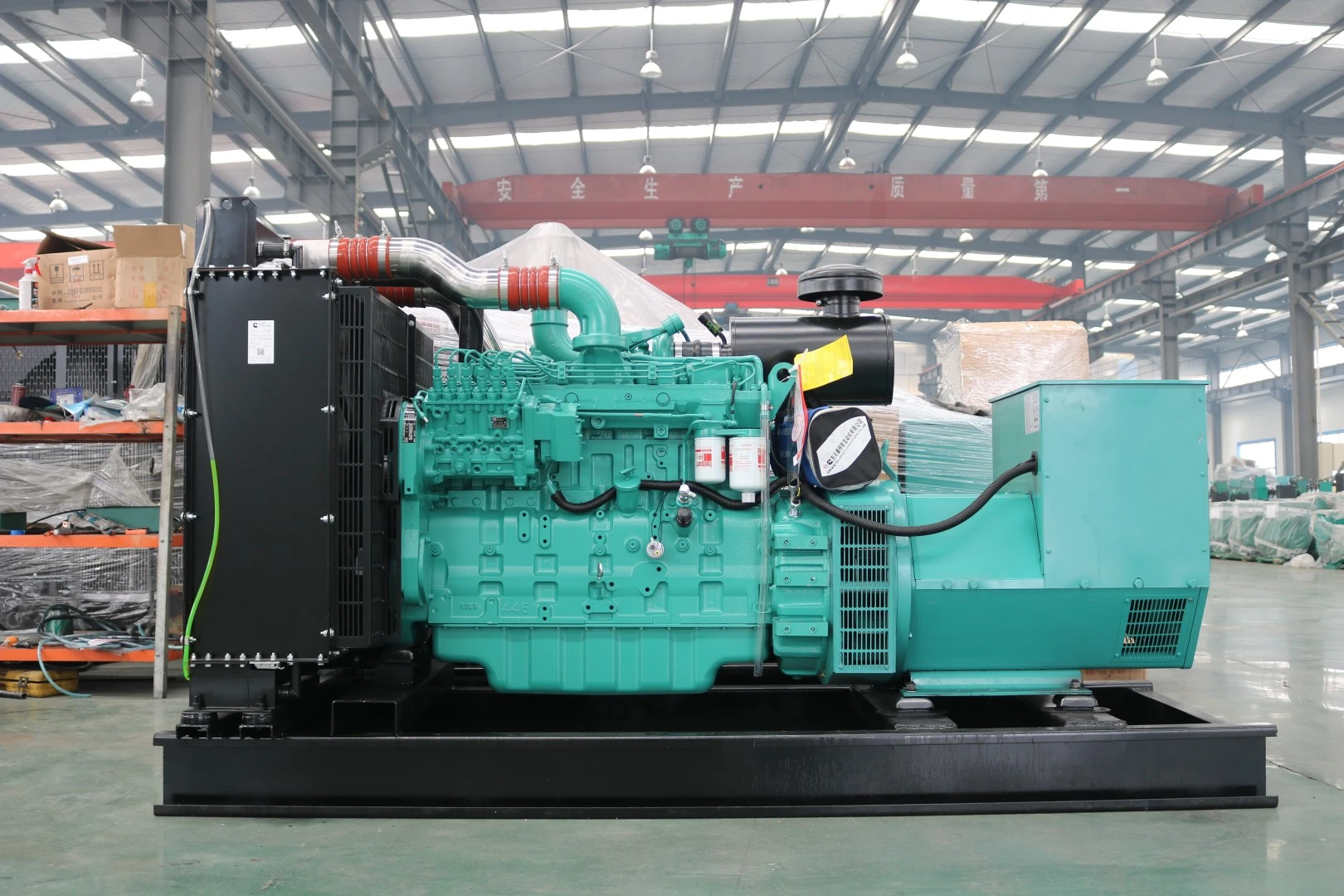

JLMECH:Your Trusted 160kW diesel generator Manufacturer & Supplier
As an established manufacturer with extensive engineering expertise, we specialize in producing 160kW diesel generator that deliver consistent performance under demanding conditions. Our 160kW diesel generator represents the optimal balance of power, efficiency, and durability for both prime power and standby applications, engineered to meet the rigorous demands of commercial and industrial operations.
Core Performance Capabilities
Our 160kW diesel generator is designed with several critical features that ensure uninterrupted operation:
Stable Power Output: Delivers consistent 160kW (200kVA) of three-phase power with voltage regulation within ±1% and harmonic distortion below 3%, ensuring compatibility with sensitive electronic equipment
Enhanced Fuel Efficiency: Advanced combustion technology and precision fuel injection system achieve optimal fuel consumption rates, significantly reducing operational costs over the generator's lifespan
Robust Engine Construction: Heavy-duty base engine design with forged steel crankshaft, precision-machined cylinders, and industrial-grade bearings provides exceptional durability for extended service intervals
Intelligent Control System: Integrated digital controller with automatic fault detection, real-time performance monitoring, and remote communication capabilities enables proactive maintenance and operational oversight
Comprehensive Support Package
We provide complete power solutions that include:
Custom configuration options to match specific application requirements
Sound-attenuated enclosures for noise-sensitive environments
Automatic transfer switch integration for seamless backup power transition
Global technical support network with 24/7 service availability
Genuine spare parts supply and preventive maintenance programs
Each 160kW diesel generator undergoes rigorous testing under simulated load conditions to verify performance specifications before delivery, ensuring reliable operation when called upon for critical power needs. Our solutions are backed by international certifications and comprehensive warranty coverage, providing customers with confidence in their power investment.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G1 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-15GF | 15 | 19 | 27.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1600*700*1100 | 900 |
| JL-20GF | 20 | 25 | 36.1 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 198 | 1620*710*1100 | 900 |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 26 overseas offices and 11 branches ensure localized support.
- OEM Experience: Trusted by Cummins, Doosan, and Liebherr for precision engineering.
- Advanced Facilities: Automated assembly lines and rigorous testing guarantee quality.
- Global Compliance: CE, ISO8528, and emission certifications simplify cross-border procurement.
Packaging and Delivery
All 160kW diesel generator units are securely packed in weatherproof crates with anti-corrosion treatments. Delivery timelines: 15–25 days (standard orders) or customized per bulk requirements.
Company Profile
With 3 R&D hubs and 52 engineers, Wuhan Jlmech combines innovation with practicality. Our 26 overseas offices in Africa and Southeast Asia ensure seamless logistics and after-sales service.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and readily available spare parts.
Certification
ISO9001, ISO14001, CE, and GB/T 2820-97 certified.
Exhibitions
Regular exhibitors at global trade shows like Bauma and PowerGen.
FAQ
Q: What's the lead time for 10+ units?
A: Bulk orders ship within 20 days with priority scheduling.
Q: Do you provide onsite installation support?
A: Our technicians offer global commissioning services.
Q: How does your pricing compare to solar hybrids?
A: We provide competitive upfront costs with lower lifetime maintenance expenses.
Power Your Projects with Confidence
Whether you're powering a mining site or securing backup for a data center, our 160kW diesel generator combines rugged reliability with cost-efficiency. Backed by Wuhan Jlmech's 29-year legacy, we're ready to support your energy needs.Contact Us Today: Email skala@whjlmech.com for quotes or technical queries. Let's keep your operations running smoothly!
