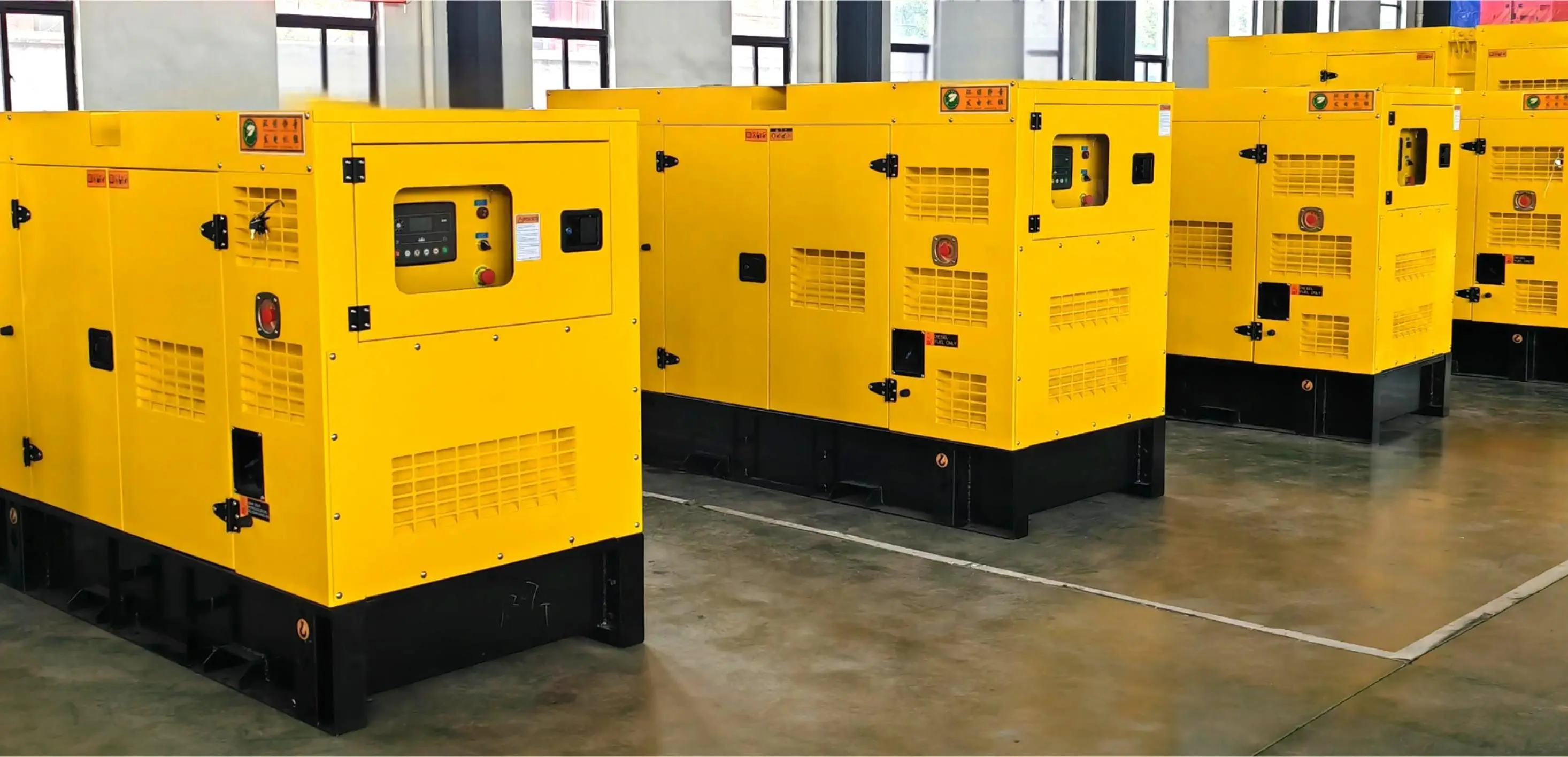

Closed frame diesel unit
Rated AC Voltage(V):380/400
Frequency(HZ):50
Phase:Three Phase
Type:Silent/Open FrameEngine
Type:Six cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Noise Level: ≤75 dB at 7 meters
Fuel Type: Diesel (compatible with biofuel blends)
Dimensions: 3250mm x 1200mm x 1800mm (trailer-mounted options available)
Certifications: CE, ISO8528, GB/T 2820-9
- Product Description
JLMECH：Your Trusted Closed Frame Diesel Unit Manufacturer & Supplier
As an established generator manufacturer with over 20 years of industrial experience, our factory specializes in developing enclosed power solutions that deliver reliability in challenging conditions. Our Closed frame diesel unit integrates a durable protective enclosure with high-performance power generation, creating an ideal solution for applications where equipment protection, safety, and longevity are essential considerations.
Closed Frame Diesel Unit Advantages
All-Weather Enclosure Design: Our Closed frame diesel unit features a robust steel frame with IP23 protection, effectively shielding internal components from rain, wind-blown debris, and accidental contact while ensuring adequate ventilation for optimal performance.
Noise Reduction Technology: The integrated acoustic panels and engineered airflow system reduce operational noise to approximately 70-75 dB(A) at 7 meters, making the unit suitable for use in noise-sensitive areas such as residential neighborhoods, hotels, and hospitals.
Security and Vandal Resistance: Lockable access doors and reinforced panels prevent unauthorized entry and protect critical components from tampering or theft, providing added peace of mind for unattended installations.
Corrosion-Resistant Finish: A multi-layer powder coating offers superior resistance to rust, UV exposure, and chemical agents, ensuring long-term durability in coastal, industrial, or high-humidity environments.
Simplified Maintenance Access: Strategically placed service panels and removable sections allow easy inspection, filter changes, and routine servicing without requiring full enclosure disassembly.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | 80 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-280GF | 280 | 350 | 504 | MTAA11-G3 | 6 | 125*147 | 11 | 38 | 210 | 3100*1050*1700 | 2700 |
| JL-350GF | 350 | 437.5 | 630 | NTAA855-G7A | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3500 |
The rotational speed in the above Cummins generator set generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Low Noise, High Efficiency: Advanced acoustic enclosures reduce sound pollution without compromising 20% fuel savings.
- Global Compliance: Meets EU Stage V and EPA Tier 4 emission standards for worldwide deployment.
- Scalable Solutions: Customize with parallel systems, hybrid fuel compatibility, or weatherproofing.
- Proven Reliability: Over 1,200 units operational across Africa and Southeast Asia.
Packaging and Delivery
All generators are crated in anti-corrosion steel frames and dispatched within 15 days.

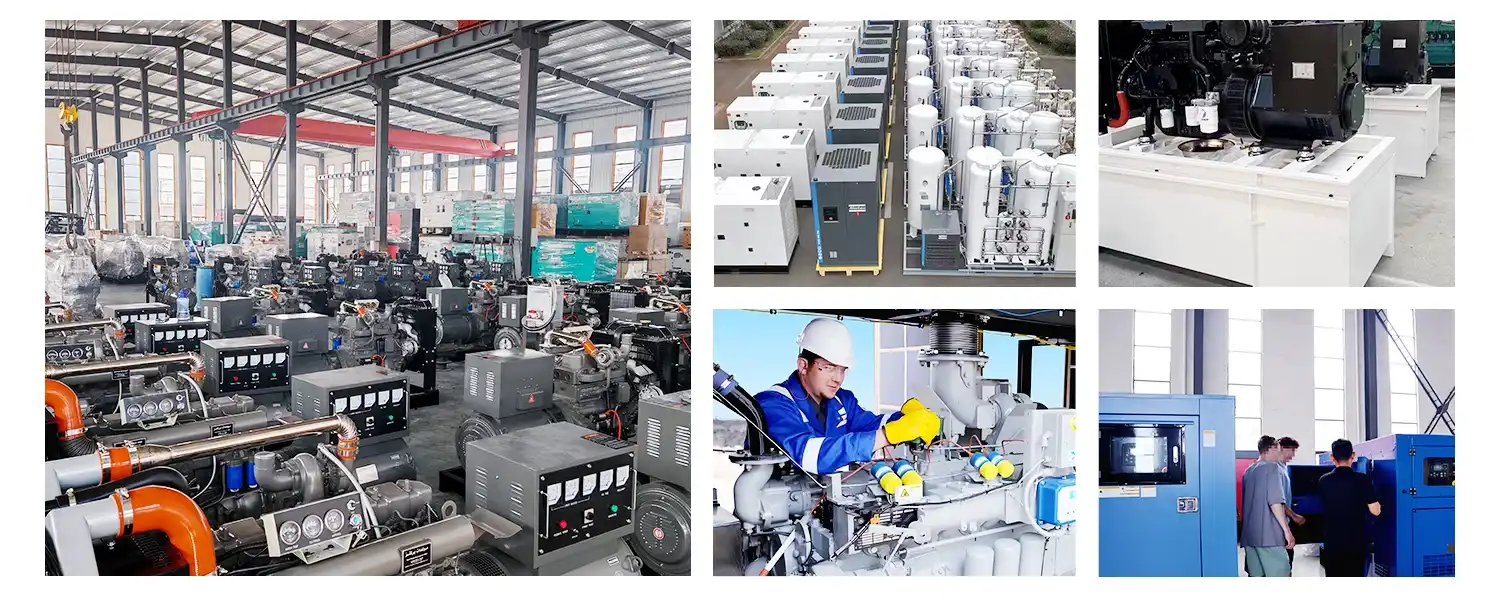

About Wuhan Jlmech Co., Ltd.
With 126 technical experts and 11 branches in China, we serve as an OEM partner for global brands like MTU and Liebherr. Our automated production lines ensure precision in every Closed frame diesel unit.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and access to 50+ service hubs in Africa and Asia.
Certification
Our generators and processes are certified to ISO9001, ISO14001, CE, and GS standards.
Exhibitions
We showcase innovations annually at POWER-GEN Asia and Bauma China.
FAQ
Q: What's the maintenance schedule?
A: Bi-annual servicing recommended; remote diagnostics available.
Q: How quickly can you respond to breakdowns?
A: 48-hour onsite support in most regions.
Power Your Projects with Confidence
Whether you're powering a telecom tower or a disaster recovery site, our Closed frame diesel unit offers the durability and quiet performance your operations deserve. Contact us at skala@whjlmech.com to discuss bulk orders or custom requirements.
