generator 1500 kva
Voltage: 220V–480V (customizable)
Speed(R.P.M):1500/1800
Frequency(HZ):50HZ/60HZ
Noise Level: 65–75 dB(A) at 7 meters
Dimensions: Compact to industrial-scale designs
Phase:Single/Three phaseType:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling System: Radiator-based or closed-loop
Starting Method:Electric starting
Customization: OEM/ODM
Certifications: CE, ISO8528, GB/T 2820-97
- Product Description
JLMECH：Your Trusted Generator 1500kva Set Partner
For industrial operations, large facilities, and critical infrastructure requiring substantial power support, a generator 1500 kva delivers the performance and reliability essential for uninterrupted operations. This high-capacity diesel generator set is engineered to serve as a primary or backup power source for sectors where scalability, efficiency, and durability are non-negotiable.

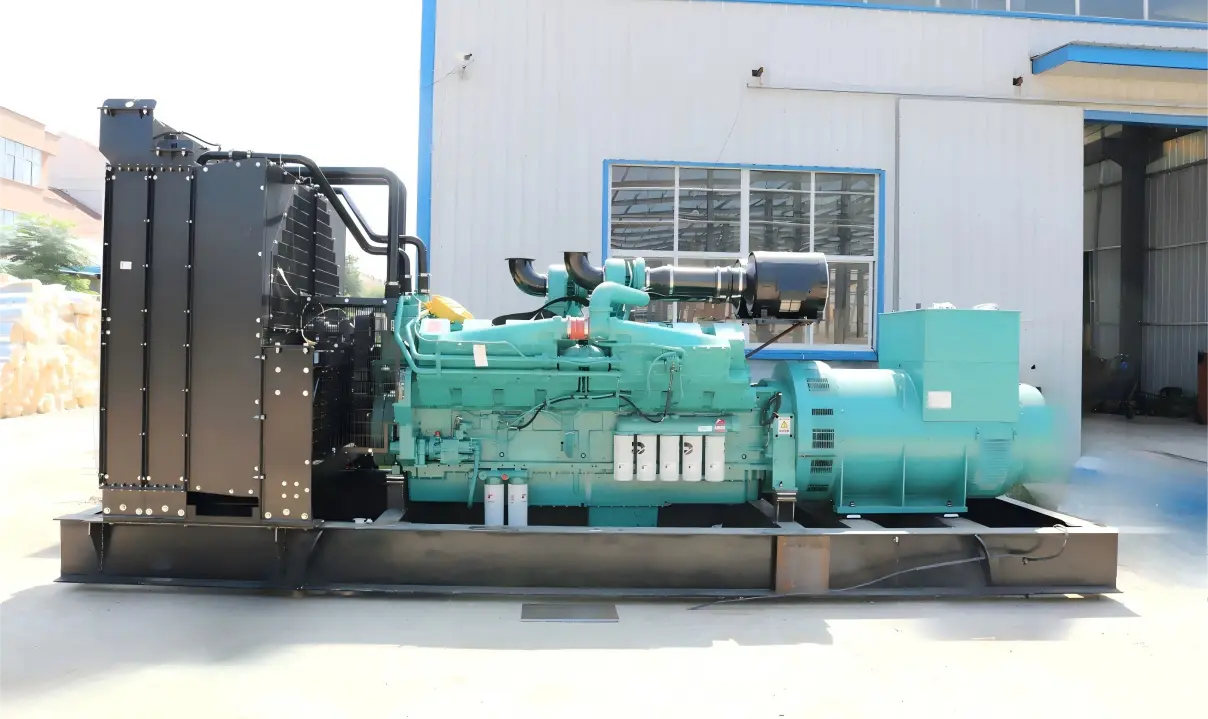

Description of Generator 1500 kVA
Robust Power Output: Designed to deliver 1500 kVA of stable, continuous power, capable of supporting heavy machinery, data centers, manufacturing plants, and large commercial complexes.
Advanced Engine Technology: Equipped with a high-performance 6-cylinder or V-configuration diesel engine (e.g., Cummins, MTU, or Perkins) optimized for fuel efficiency and low emissions.
Precision Voltage Regulation: Maintains voltage stability within ±0.5% and frequency deviation within ±1%, ensuring compatibility with sensitive equipment.
Intelligent Control Systems: Integrated digital control panels (e.g., Deep Sea, ComAp) enable real-time monitoring, remote management, and automated fault diagnostics.
Durability and Adaptability: Built with reinforced steel bases, weather-resistant canopies (IP23-IP55), and advanced cooling systems for operation in harsh environments.
An generator 1500 kva is more than just a power source—it is the foundation of modern off-grid living and operations. It provides the reliability, adaptability, and independence necessary to thrive in locations where traditional electricity is unavailable.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-18DGF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
| JL-500GF | 500 | 625 | 900 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 206 | 3500*1380*1800 | 4000 |
| JL-600GF | 600 | 750 | 1080 | KT38-GA | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7000 |
| JL-700GF | 700 | 875 | 1260 | KTA38-G2B | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-800GF | 800 | 1000 | 1440 | KTA38-G2A | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-900GF | 9D0 | 1125 | 1620 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1800*2350 | 8200 |
| JL-1000GF | 1000 | 1250 | 1800 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1850*2350 | 8200 |
| JL-1100GF | 1100 | 1375 | 1980 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 205 | 5000*2040*2430 | 9500 |
| JL-1200GF | 1200 | 1500 | 2160 | KTA50-G8 | 16 | 159*159 | 50 | 204 | 205 | 5350*2110*2500 | 10000 |
The rotational speed in the above generator 1500 kva technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- OEM Expertise: As an authorized partner for Cummins, we adhere to strict quality protocols.
- Custom Solutions: Tailor voltage, fuel efficiency, and control systems to your project.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid technical assistance.
- Cost Efficiency: Optimized TCO (total cost of ownership) through energy-saving designs and extended service intervals.
Packaging and Delivery
Units are securely packaged in weatherproof crates with anti-corrosion treatments. Global shipping via sea/air freight available.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches across China and employs 126 technical experts, including 27 senior engineers. Our 35,000m² facility features automated assembly lines and rigorous testing systems, ensuring every generator 1500 kva meets international standards.
Factory After-Sales Service
Enjoy 24/7 technical support, a 2-year warranty, and guaranteed 48-hour spare parts delivery worldwide.
Certification
ISO9001, ISO14001, CE, and GS-certified manufacturing processes.
Exhibitions
We showcase innovations at PowerGen International, Middle East Energy, and regional trade shows.
FAQ
Q: Can I request a generator customized for high-altitude operations?
A: Yes! Our engineers adjust air-fuel ratios and cooling systems for performance at elevations up to 4,500 meters.
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on specifications. Urgent orders prioritized.
Q: Do you offer financing options?
A: Flexible payment terms and leasing plans are available for large-scale procurement.
Q: Are your generators compatible with hybrid solar-diesel setups?
A: Absolutely. We design units to integrate with renewable energy systems.
Q: How do you ensure compliance with local emissions laws?
A: Each generator 1500 kva is pre-tested for regional regulatory alignment.
Power Your Projects with Confidence
Whether you're managing a mining operation in Africa or a data center in Southeast Asia, our generator 1500 kva guarantees reliability. Contact us at skala@whjlmech.com to discuss your requirements or request a free quote.
