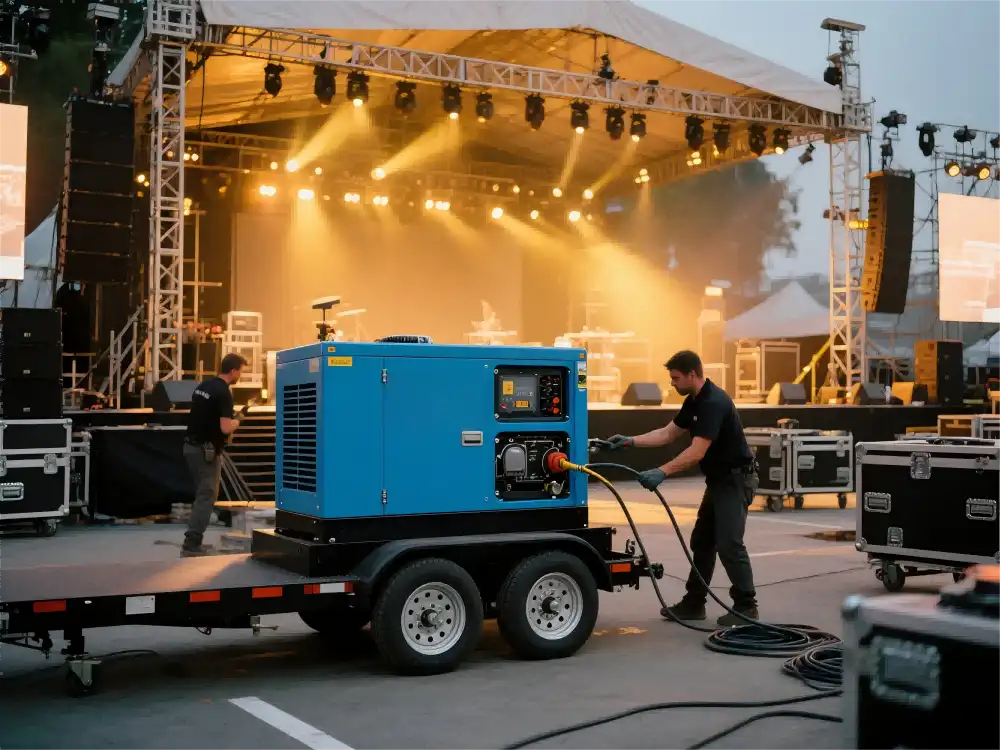

Quick-connect systems are designed to streamline the installation process of movable diesel generators, allowing for rapid setup and teardown in various locations. These systems typically consist of pre-wired components that can be easily connected and disconnected, eliminating the need for complex wiring each time the generator is moved. By reducing installation time and simplifying the process, quick-connect systems enhance the mobility and versatility of diesel generators, making them even more valuable for temporary power needs and emergency situations.
How to Install a Plug-and-Play Quick-Connect System for Movable Generators?
Installing a plug-and-play quick-connect system for your movable diesel generator can significantly reduce setup time and improve overall efficiency. Here's a general guide to help you through the process:
Preparation and Planning
Before beginning the installation, it's crucial to assess your power requirements and select a quick-connect system that's compatible with your generator's specifications. Ensure you have all necessary components and tools on hand, including the quick-connect box, transfer switch, and appropriate cables.
Mounting the Quick-Connect Box
Choose a suitable location for the quick-connect box, ideally close to your main electrical panel but in a spot that's easily accessible for generator connection. Secure the box firmly to the wall or a sturdy support structure, making sure it's level and properly aligned.
Wiring the System
Connect the quick-connect box to your transfer switch following the manufacturer's instructions. This typically involves running appropriately sized cables between the two components. Ensure all connections are tight and properly insulated to prevent electrical hazards.
Testing and Verification
Once the system is installed, conduct thorough testing to verify proper functionality. This should include a dry run without power to check connections and a live test with the generator to ensure seamless power transfer. Always prioritize safety and consider hiring a professional electrician for complex installations.
Top Quick-Connect Adapters for Fast Movable Diesel Generator Setup
Selecting the right quick-connect adapter is crucial for ensuring a smooth and efficient setup process for your movable diesel generator. Here are some top options to consider:
Cam-Lock Connectors
Cam-lock connectors are widely used in the industry due to their reliability and ease of use. They feature a locking mechanism that ensures a secure connection, making them ideal for applications where vibration or movement might be a concern. Cam-locks are available in various sizes and amperage ratings to accommodate different generator capacities.
Twist-Lock Connectors
Twist-lock connectors offer a simple yet effective solution for quick generator connections. They use a twisting motion to lock the plug into place, providing a secure connection that resists accidental disconnection. These connectors are particularly useful in outdoor environments where weather conditions might pose challenges.
Pin and Sleeve Connectors
Pin and sleeve connectors are known for their durability and ability to handle high-amperage loads. They feature a unique design that prevents mismatching of voltage or amperage ratings, enhancing safety during connections. These connectors are often used in industrial settings where robust and reliable connections are paramount.
Safety Standards for Quick-Connect Electrical Systems in Movable Generators
Ensuring the safety of quick-connect electrical systems in movable diesel generators is paramount to prevent accidents and maintain operational integrity. Adherence to established safety standards is not just a legal requirement but a crucial aspect of responsible generator management.
Compliance with Electrical Codes
All quick-connect systems must comply with relevant electrical codes, such as the National Electrical Code (NEC) in the United States or equivalent standards in other countries. These codes provide guidelines on proper installation, grounding, and protection measures to ensure electrical safety.
Proper Grounding and Bonding
Adequate grounding is essential for preventing electrical shocks and equipment damage. Quick-connect systems should incorporate proper grounding mechanisms, ensuring that all metal components are bonded to a common ground point. This helps dissipate any stray currents and maintains a safe operating environment.
Overcurrent Protection
Implementing appropriate overcurrent protection devices, such as circuit breakers or fuses, is crucial in quick-connect systems. These devices safeguard against electrical overloads and short circuits, preventing damage to the generator and connected equipment.
Jlmech, a leading manufacturer of movable diesel generators, understands the importance of these safety standards and incorporates them into their product designs. Their generators are engineered to meet and exceed industry safety requirements, providing peace of mind to users across various sectors.
Speaking of Jlmech, their range of movable diesel generators offers impressive specifications tailored to meet diverse power needs. With AC outputs ranging from 20 to 3000 KW and rated AC voltages of 110V, 220V, or 380V, these generators can accommodate a wide array of applications. Operating at frequencies of 50Hz or 60Hz and engine speeds between 1500-3000 RPM, Jlmech generators provide flexibility for different regional requirements.
Jlmech's movable diesel generators are available in both single and three-phase configurations, with options for silent or open frame designs to suit various environmental constraints. The generators feature water-cooled engines with 2, 4, 6 or 8 cylinders, ensuring optimal performance and efficiency. Electric starting mechanisms enhance ease of use, while OEM/ODM customization options allow for tailored solutions to meet specific customer needs.
These generators are built with reinforced frames and all-terrain wheels, making them ideal for construction sites, remote mines, farms, and event venues. Jlmech's commitment to quality is evident in their certifications, including CE, Euro 5, EPA, and CARB, ensuring compliance with international standards for emissions and performance.
In conclusion, quick-connect systems have transformed the landscape of movable diesel generator installations, offering unprecedented flexibility and efficiency. By understanding the installation process, selecting appropriate adapters, and adhering to safety standards, businesses can maximize the benefits of these systems. As the demand for portable power solutions continues to grow, the importance of quick-connect technology in facilitating rapid deployment and reliable operation cannot be overstated.
For those in industries requiring robust, mobile power solutions, Jlmech offers a range of movable diesel generators designed to meet diverse needs. With their extensive experience in power solutions and commitment to innovation, Jlmech stands ready to provide tailored generator solutions for any application. Whether you're in construction, event management, or emergency services, Jlmech's generators, equipped with quick-connect capabilities, can ensure you have reliable power wherever and whenever you need it.
To learn more about Jlmech's movable diesel generators and how they can benefit your operations, don't hesitate to reach out. Contact us at skala@whjlmech.com for personalized assistance and to discuss how we can meet your specific power requirements. With Jlmech, you're not just getting a generator; you're investing in a power solution backed by years of expertise and a commitment to customer satisfaction.
