generator mitsubishi 1500 kva

Brand:Mitsubishi
AC Output(KW):1200KW/1500KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:6/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Generator Mitsubishi 1500 kVA Partner

Wuhan Jlmech Co., Ltd. specializes in providing high-performance generator mitsubishi 1500 kva designed for industries demanding uninterrupted power. With 3 R&D centers, 126 technical experts, and partnerships with global brands like Cummins and Perkins, our generators combine Mitsubishi's engineering excellence with ISO-certified quality.

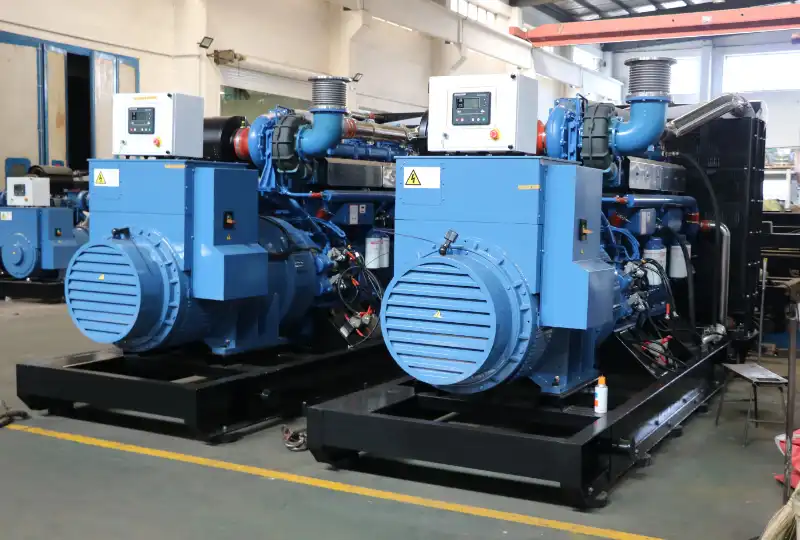

generator mitsubishi 1500 kva

Generator Mitsubishi 1500 kVA Description

Built for heavy-duty applications, this generator mitsubishi 1500 kva delivers robust power output for factories, hospitals, and data centers. Key features:

Engine: Mitsubishi S16R-PTA diesel engine for high torque and fuel efficiency.
Voltage Range: 400/230V, 50Hz (customizable for global standards).
Noise Level: ≤75 dB(A) at 7 meters, ideal for urban environments.
Fuel Consumption: Optimized design reduces operational costs (230L/hr at 75% load).
Compliance: Meets CE, ISO8528, and EPA Tier 3 emissions standards.

generator mitsubishi

Specifications

Genset model	Power（KVA）		Engine model	Cylinders	Bore	stroke	Displacement	Oil capacity	Fuel consumption rate	Gross weight	Dimensions(mm)
Genset model	Prime power	Standby power	Engine model	L	mm	mm	L	L	lir/hr	KG	L×W×H
JL0250B	270	300	S6B-PTA-S	6	135	150	12.88	50	56	2700	3062×1178×1377
JL0300B	315	350	S6B-PTA2-S	6	135	150	12.88	50	66	2810	3062×1178×1502
JL0400B	390	425	S6B3-PTA-S	6	135	170	14.6	70	82	3420	3200×1200×1770
JL0450B	480	515	S6A3-PTA-S	6	150	175	18.6	80	105	3900	3433×1412×1717
JL0500B	530	580	S6A3-PTAA-S	6	150	175	18.6	80	115	4300	3683×1542×1880
JL0500B	625	690	S6R-PTA-S	6	170	180	24.5	92	127	5000	3598×1614×2226
JL0650B	700	780	S6R2-PTA-S	6	170	220	30	92	139	5100	3576×1614×2226
JL0700B	800	880	S6R2-PTAA-S	6	170	220	30	92	170	5750	4023×1810×1953
JL0900B	885	1000	S12A2-PTA2-S	12	150	160	33.9	120	175	6100	3996×1575×1959
JL1000B	1125	1250	S12H-PTA-S	12	150	175	37.1	200	200	7800	4222×1756×2456
JL1200B	1362	1500	S12R-PTA-S	12	170	180	49	180	266	9100	4650×2100×2600
JL1400B	1450	1600	S12R-PTA2-S	12	170	180	49	180	281	9600	4595×2156×2700
JL1500B	1800	2000	S16R-PTA-S	16	170	180	49	180	300	10000	4595×2156×2700
JL2000B	2030	2235	S16R-PTA2-S	16	170	180	65.4	230	310	11100	5040×2486×2931
JL2500B	2035	2290	S16-PTAA2-S	16	170	180	65.4	230	330	11750	5382×2486×2931

The Mitsubishi series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need generator sets with other special requirements, please contact us and we will provide the parameters separately.

Mitsubishi diesel generator sets use advanced combustion technologies, such as direct injection combustion mode and high-efficiency turbocharging technology. Coupled with an optimized cooling system, it makes the fuel burn more fully, improves fuel utilization, and reduces energy waste and environmental pollution.

Why Choose US?

Proven Reliability: Engineered for extreme conditions (heat, dust, humidity) with a 2-year warranty.
Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid technical assistance.
OEM Expertise: Trusted by Cummins, Perkins, and MTU for precision manufacturing.
Energy Efficiency: Advanced cooling systems and smart load management extend engine life.

Packaging and Delivery

product-1-1

Generators are shipped in weatherproof, shock-resistant crates with anti-corrosion coatings. Standard delivery: 15–25 days (FOB/CIF terms available).

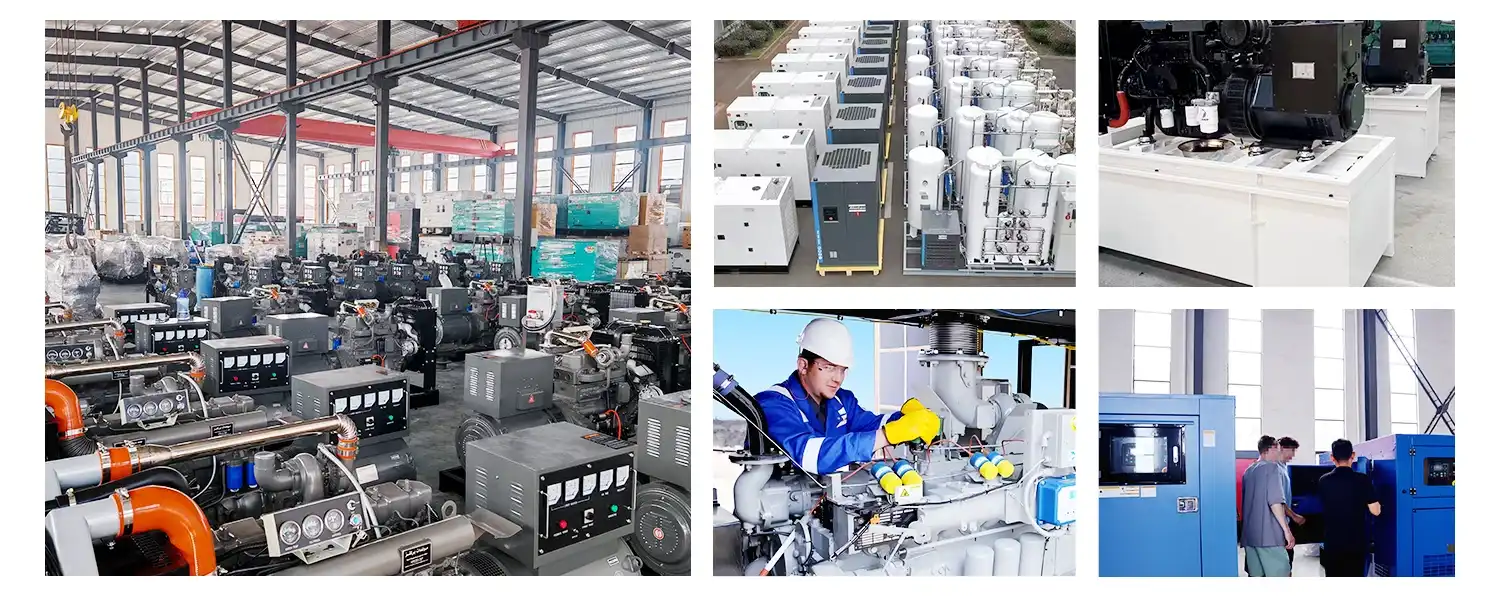

Company Profile

product-1-1

With 11 branches in China and 52 engineers, Wuhan Jlmech has 20+ years of expertise in power solutions. Our automated assembly lines and ISO14001-certified processes guarantee consistency.

Factory After-Sales Service

Enjoy 24/7 troubleshooting, on-site maintenance, and genuine spare parts. Our service teams average a 48-hour response time globally.

Certification

Certificate

Exhibitions

Exhibition

Featured at PowerGen Asia, Middle East Energy, and Canton Fair.

FAQ

Q: Can this generator integrate with existing power systems?
A: Yes! Our team provides seamless synchronization solutions for grid-tie or hybrid setups.

Q: What's the lead time for bulk orders?
A: 30–45 days for 10+ units, with priority production scheduling.

Q: Do you offer customized voltage configurations?
A: Absolutely. Share your requirements, and we'll adapt the design.

Power Your Operations with Confidence

When downtime isn't an option, trust Wuhan Jlmech's generator mitsubishi 1500 kva to keep your business running. Contact us at skala@whjlmech.com for a tailored quote today!
