generator mitsubishi 800kva
AC Output(KW):640KW/800KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:6/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted Generator Mitsubishi 800kVA Partner
Wuhan Jlmech Co., Ltd. specializes in providing premium generator Mitsubishi 800kVA units tailored for industries requiring robust, reliable power solutions. With 3 R&D centers, 26 global offices, and partnerships with top brands like Cummins and Perkins, we deliver unmatched engineering expertise, ISO-certified quality, and a 2-year warranty for worry-free operations.
Generator Mitsubishi 800kVA Description

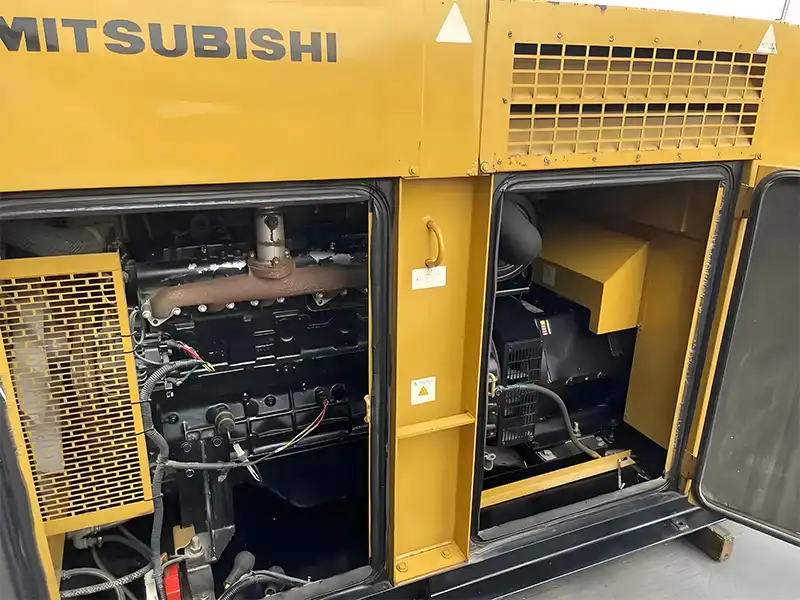

The generator Mitsubishi 800kVA is engineered for heavy-duty performance in demanding environments like data centers, mining sites, and large-scale manufacturing. Built with Mitsubishi's renowned S12R-PTA engine, it ensures fuel efficiency, low emissions, and seamless integration with hybrid power systems. Ideal for prime or standby power, this unit features remote monitoring capabilities and noise-reducing enclosures for urban compliance.
Specifications
| Genset model | Power（KVA） | Engine model | Cylinders | Bore | stroke | Displacement | Oil capacity | Fuel consumption rate | Gross weight | Dimensions(mm) | |
| Prime power | Standby power | L | mm | mm | L | L | lir/hr | KG | L×W×H | ||
| JL0250B | 270 | 300 | S6B-PTA-S | 6 | 135 | 150 | 12.88 | 50 | 56 | 2700 | 3062×1178×1377 |
| JL0300B | 315 | 350 | S6B-PTA2-S | 6 | 135 | 150 | 12.88 | 50 | 66 | 2810 | 3062×1178×1502 |
| JL0400B | 390 | 425 | S6B3-PTA-S | 6 | 135 | 170 | 14.6 | 70 | 82 | 3420 | 3200×1200×1770 |
| JL0450B | 480 | 515 | S6A3-PTA-S | 6 | 150 | 175 | 18.6 | 80 | 105 | 3900 | 3433×1412×1717 |
| JL0500B | 530 | 580 | S6A3-PTAA-S | 6 | 150 | 175 | 18.6 | 80 | 115 | 4300 | 3683×1542×1880 |
| JL0500B | 625 | 690 | S6R-PTA-S | 6 | 170 | 180 | 24.5 | 92 | 127 | 5000 | 3598×1614×2226 |
| JL0650B | 700 | 780 | S6R2-PTA-S | 6 | 170 | 220 | 30 | 92 | 139 | 5100 | 3576×1614×2226 |
| JL0700B | 800 | 880 | S6R2-PTAA-S | 6 | 170 | 220 | 30 | 92 | 170 | 5750 | 4023×1810×1953 |
| JL0900B | 885 | 1000 | S12A2-PTA2-S | 12 | 150 | 160 | 33.9 | 120 | 175 | 6100 | 3996×1575×1959 |
| JL1000B | 1125 | 1250 | S12H-PTA-S | 12 | 150 | 175 | 37.1 | 200 | 200 | 7800 | 4222×1756×2456 |
| JL1200B | 1362 | 1500 | S12R-PTA-S | 12 | 170 | 180 | 49 | 180 | 266 | 9100 | 4650×2100×2600 |
| JL1400B | 1450 | 1600 | S12R-PTA2-S | 12 | 170 | 180 | 49 | 180 | 281 | 9600 | 4595×2156×2700 |
| JL1500B | 1800 | 2000 | S16R-PTA-S | 16 | 170 | 180 | 49 | 180 | 300 | 10000 | 4595×2156×2700 |
| JL2000B | 2030 | 2235 | S16R-PTA2-S | 16 | 170 | 180 | 65.4 | 230 | 310 | 11100 | 5040×2486×2931 |
| JL2500B | 2035 | 2290 | S16-PTAA2-S | 16 | 170 | 180 | 65.4 | 230 | 330 | 11750 | 5382×2486×2931 |
The Mitsubishi series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need generator sets with other special requirements, please contact us and we will provide the parameters separately.
Mitsubishi diesel generator sets have a strong starting ability and can provide a strong starting torque in a short time. They adopt a 24V DC starting method, and the starting process is simple and fast. This is crucial for emergency backup power supplies or outdoor work scenarios, enabling them to start quickly and supply power at critical moments.
Why Choose US?
- Proven Reliability: Backed by Mitsubishi's 100+ years of engineering excellence.
- Custom Solutions: Modify voltage, enclosure type, or control panels to match your infrastructure.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure fast technical assistance.
- Cost Efficiency: Optimized fuel use reduces operational expenses by up to 15%.
Packaging and Delivery
Generator Mitsubishi 800kVA is shipped in weatherproof, shock-absorbent crates with anti-corrosion coatings. We offer EXW, FOB, or CIF terms and handle customs clearance for hassle-free global delivery.
Company Profile

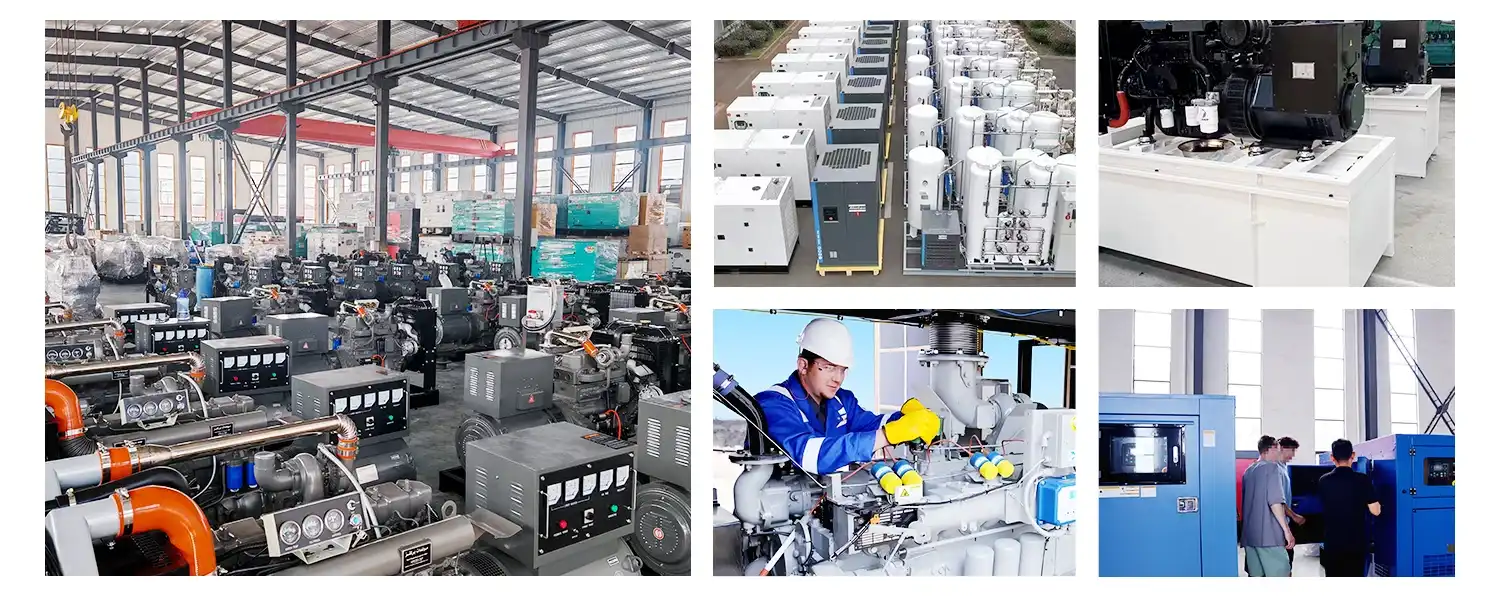

Wuhan Jlmech Co., Ltd. operates 11 branches across China and employs 126 technical experts, including 27 senior engineers. Our 52,000m² factory features automated assembly lines and rigorous testing systems to meet ISO 9001 and ISO 14001 standards.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 remote diagnostics, and on-site maintenance via our global partners. Spare parts are stocked in regional hubs for rapid dispatch.
Certification
Our generator Mitsubishi 800kVA comply with CE, GS, ISO 8528, and GB/T 2820-97 standards. Management systems are ISO 9001 and ISO 14001 certified.
Exhibitions
We showcase innovations at global trade shows like POWERGEN Asia and Middle East Electricity.
FAQ
Q: Can this generator integrate with solar systems?
A: Yes! Our team designs hybrid setups for renewable energy compatibility.
Q: Do you provide OEM services?
A: Absolutely. We're an OEM partner for Cummins, MTU, and other leading brands.
Q: How do I request a customized quote?
A: Email skala@whjlmech.com with your load requirements and site details.
Ready to Secure Uninterrupted Power?
Trust Wuhan Jlmech's generator Mitsubishi 800kVA for critical operations. Contact us today at skala@whjlmech.com to discuss bulk orders, financing options, or site-specific adaptations. Let's power your success—reliably.
