shangchai diesel generator 20KW
AC Output(KW):20KW/25KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4/6/12 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted Shangchai Diesel Generator 20KW Partner
Wuhan Jlmech Co., Ltd. is a trusted Shangchai diesel generator 20KW Partner, combining advanced engineering with global certifications like CE, ISO9001, and ISO14001. Our generators deliver unmatched durability, fuel efficiency, and 24/7 technical support, backed by a 2-year warranty and OEM expertise for brands like Cummins and Perkins.

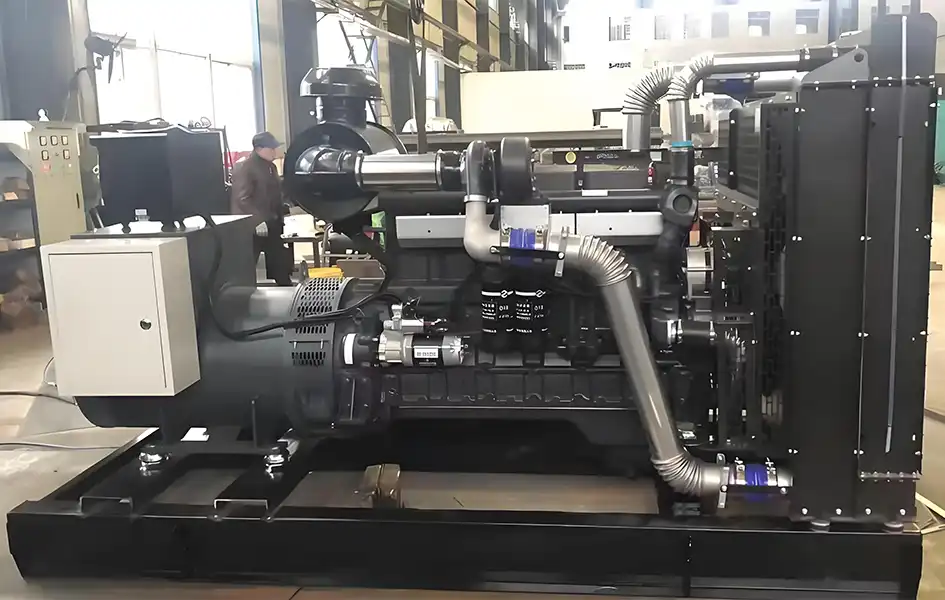

Shangchai Diesel Generator 20KW Description
Ideal for construction sites, farms, hospitals, and telecom towers, our Shangchai diesel generator 20KW ensures uninterrupted power in harsh environments. Built with a robust Shangchai engine, it offers:
- 20KW output for primary or backup power needs.
- Low fuel consumption and reduced emissions (complies with ISO8528 and GB/T 2820-97).
- Automatic voltage regulation for sensitive equipment protection.
- Compact, noise-reduced design for flexible installation.
Specifications
| Model | Power | Power | Curren | Engine model | Cylinder | Bore*Stroke | Displacement | Lube oil | Consumption | Size | Weight |
| KW | KVA | A | mm | L | L | g/kw.h | mm | KG | |||
| JL-50GF | 50 | 62.5 | 90 | SC4H95D2 | 4 | 105*124 | 4.3 | 13 | 195 | 1900*800*1200 | 950 |
| JL-75GF | 75 | 93.75 | 135 | SC4H115D2 | 4 | 105*124 | 4.3 | 13 | 195 | 1900*860*1200 | 1000 |
| JL-100GF | 100 | 125 | 180 | SC4H160D2 | 4 | 105*124 | 4.3 | 13 | 195 | 2060*900*1200 | 1100 |
| JL-120GF | 120 | 150 | 216 | SC4H180D2 | 4 | 105*124 | 4.3 | 13 | 195 | 2100*900*1200 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | SC7H230D2 | 6 | 105*124 | 6.5 | 17.5 | 195 | 2400*950*1450 | 1700 |
| JL-170GF | 170 | 212.5 | 306 | SC7H250D2 | 6 | 105*124 | 6.5 | 17.5 | 195 | 2600*950*1500 | 1800 |
| JL-180GF | 180 | 225 | 324 | SC8D280D2 | 6 | 114*135 | 8.3 | 19 | 200 | 2600*1050*1500 | 1800 |
| JL-200GF | 200 | 250 | 360 | SC9D310D2 | 6 | 114*144 | 8.9 | 19 | 200 | 2600*1050*1500 | 1850 |
| JL-220GF | 220 | 275 | 396 | SC9D340D2 | 6 | 114*144 | 8.9 | 25 | 198 | 3000*1150*1650 | 2500 |
| JL-250GF | 250 | 312.5 | 450 | SC13G355D2 | 6 | 135*150 | 12.88 | 41 | 205 | 3000*1150*1650 | 2550 |
| JL-280GF | 250 | 312.5 | 450 | SC13G420D2 | 6 | 135*150 | 12.88 | 41 | 225 | 3000*1150*1650 | 2550 |
| JL-300GF | 300 | 375 | 540 | SC12E460D2 | 6 | 128*153 | 11.8 | 41 | 192 | 3100*1150*1650 | 2650 |
| JL-320GF | 320 | 400 | 576 | SC15G500D2 | 6 | 135*165 | 142 | 41 | 205 | 3100*1250*1650 | 2700 |
| JL-350GF | 350 | 437.5 | 630 | sC15G500D2 | 6 | 135*165 | 142 | 41 | 205 | 3150*1250*1650 | 2800 |
| JL-400GF | 400 | 500 | 720 | SC25G610D2 | 12 | 135*150 | 25.8 | 65 | 205 | 3500*1500*1950 | 3900 |
| JL-450GF | 450 | 562.5 | 810 | SC25G690D2 | 12 | 135*150 | 25.8 | 65 | 205 | 3500*1500*1950 | 4000 |
| JL-500GF | 500 | 625 | 900 | SC27G755D2 | 12 | 135*155 | 26.6 | 65 | 205 | 3500*1500*2000 | 4200 |
| JL-550GF | 550 | 687.5 | 990 | SC27G830D2 | 12 | 135*155 | 26.6 | 65 | 205 | 3650*1500*2000 | 4300 |
| JL-600GF | 600 | 750 | 1080 | SC27G900D2 | 12 | 135*155 | 26.6 | 65 | 205 | 3700*1500*2150 | 4400 |
| JL-660GF | 660 | 825 | 1188 | SC33W99002 | 6 | 180*215 | 32.8 | 75 | 205 | 4400*1700*2150 | 6500 |
| JL-B00GF | 800 | 1000 | 1440 | SC33W1150D2 | 6 | 180*215 | 32.8 | 75 | 205 | 4500*1800*2350 | 6500 |
| JL-1000GF | 1000 | 1250 | 1800 | 6WTAA35-G311 | 6 | 186*215 | 35.1 | 75 | 195 | 4650*2100*2600 | 9100 |
| JL-1100GF | 1100 | 1375 | 1980 | 12KTA58-G37 | 12 | 170*210 | 57.2 | 280 | 188 | 4595*2156*2700 | 9600 |
| JL-1200GF | 1200 | 1500 | 2160 | 12KTA58-G36 | 12 | 170*210 | 57.2 | 280 | 188 | 4595*2156*2700 | 10000 |
| JL-1400GF | 1400 | 1750 | 2520 | 12kTA58-G35 | 12 | 170*210 | 57.2 | 300 | 188 | 5040*2486*2931 | 11100 |
| JL-1500GF | 1500 | 1875 | 2700 | 12KTA58-G34 | 12 | 170*210 | 57.2 | 300 | 188 | 5382*2486*2931 | 11600 |
| JL-1600GF | 1600 | 2000 | 2880 | 12KTA58-G33 | 12 | 170*210 | 57.2 | 320 | 188 | 5875*2392*3453 | 14300 |
| JL-1800GF | 1800 | 2250 | 3240 | 12KTA58-G32 | 12 | 170*210 | 57.2 | 320 | 188 | 5875*2392*3453 | 14600 |
| JL-2000GF | 2000 | 2500 | 3600 | 12KTA58-G31 | 12 | 170*210 | 57.2 | 320 | 188 | 5900*2400*3453 | 15200 |
The Shangchai series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.
The Shangchai diesel generator sets have undergone strict quality control and production processes. The key components are made of high-quality materials, and through precision machining and strict assembly, it is ensured that each generator can operate stably in various harsh environments.
Why Choose US?
- Proven Durability: Shangchai engines are renowned for 10,000+ operational hours with minimal maintenance.
- Cost Efficiency: Optimized fuel use lowers long-term expenses.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure rapid spare parts delivery and on-site assistance.
- Custom Solutions: Adjustable configurations for voltage, control panels, and fuel systems.
Packaging and Delivery
Generators are securely packed in weatherproof wooden crates and shipped globally via air, sea, or land. Most orders dispatch within 7–10 days.
Company Profile
With 3 R&D centers, 11 Chinese branches, and 126 technical experts, Wuhan Jlmech specializes in power solutions trusted by industries worldwide since 2005.
Factory After-Sales Service
Enjoy a 2-year warranty, emergency troubleshooting, and lifetime maintenance support.
Certification
Our products meet CE, GS, ISO8528, and GB/T 2820-97 standards.
Exhibitions
We showcase innovations annually at industry events like Canton Fair and Bauma China.
FAQ
Q: What's the lead time for bulk orders?
A: 15–20 days with priority production scheduling.
Q: Can the generator integrate with solar systems?
A: Yes—hybrid setups are available.
Q: Do you offer onsite training?
A: Free training is provided with bulk purchases.
Need a Reliable 20KW Power Solution?
Contact us at skala@whjlmech.com for quotes, technical specs, or customized service plans. Wuhan Jlmech's Shangchai diesel generator 20KW guarantees power where you need it, when you need it.
