shangchai diesel generator 100KW

Brand:ShangchaiAC Output(KW)：100KW/125KVA
Rated AC Voltage(V)：400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4/6/12 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
Send Inquiry Download
  • Product Description

JLMECH：Your Trusted Shangchai Diesel Generator 100KW Partner

Wuhan Jlmech Co., Ltd. is a trusted Shangchai diesel generator 100KW manufacturer and supplier, specializing in high-performance power solutions for industrial and commercial needs. With 26 overseas offices and partnerships with global brands like Cummins and Perkins, we deliver unmatched reliability, ISO/CE-certified engineering, and a 2-year warranty.

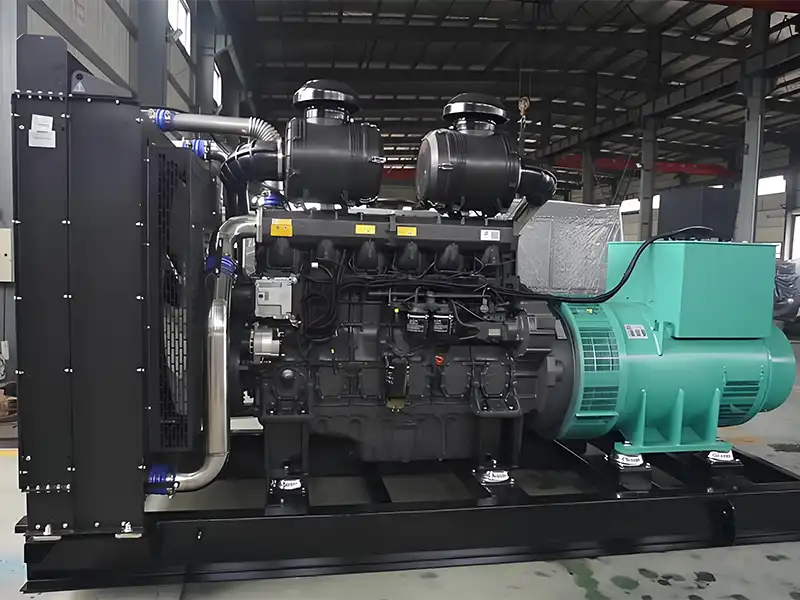

Shangchai Diesel Generator 100KW Description

Engineered for durability, our Shangchai diesel generator 100KW combines a robust Shangchai engine with advanced alternator technology. Ideal for backup power, remote operations, or industrial projects, it ensures stable output (50/60Hz) in extreme conditions. Features include low fuel consumption, noise levels under 75 dB(A), and compliance with China III/IV and Euro III emissions standards.

shangchai diesel generator 100KW

Specifications

ModelPowerPowerCurrenEngine modelCylinderBore*StrokeDisplacementLube oilConsumptionSizeWeight
KWKVAAmmLLg/kw.hmmKG
JL-50GF5062.590SC4H95D24105*1244.3131951900*800*1200950
JL-75GF7593.75135SC4H115D24105*1244.3131951900*860*12001000
JL-100GF100125180SC4H160D24105*1244.3131952060*900*12001100
JL-120GF120150216SC4H180D24105*1244.3131952100*900*12001350
JL-150GF150187.5270SC7H230D26105*1246.517.51952400*950*14501700
JL-170GF170212.5306SC7H250D26105*1246.517.51952600*950*15001800
JL-180GF180225324SC8D280D26114*1358.3192002600*1050*15001800
JL-200GF200250360SC9D310D26114*1448.9192002600*1050*15001850
JL-220GF220275396SC9D340D26114*1448.9251983000*1150*16502500
JL-250GF250312.5450SC13G355D26135*15012.88412053000*1150*16502550
JL-280GF250312.5450SC13G420D26135*15012.88412253000*1150*16502550
JL-300GF300375540SC12E460D26128*15311.8411923100*1150*16502650
JL-320GF320400576SC15G500D26135*165142412053100*1250*16502700
JL-350GF350437.5630sC15G500D26135*165142412053150*1250*16502800
JL-400GF400500720SC25G610D212135*15025.8652053500*1500*19503900
JL-450GF450562.5810SC25G690D212135*15025.8652053500*1500*19504000
JL-500GF500625900SC27G755D212135*15526.6652053500*1500*20004200
JL-550GF550687.5990SC27G830D212135*15526.6652053650*1500*20004300
JL-600GF6007501080SC27G900D212135*15526.6652053700*1500*21504400
JL-660GF6608251188SC33W990026180*21532.8752054400*1700*21506500
JL-B00GF80010001440SC33W1150D26180*21532.8752054500*1800*23506500
JL-1000GF1000125018006WTAA35-G3116186*21535.1751954650*2100*26009100
JL-1100GF11001375198012KTA58-G3712170*21057.22801884595*2156*27009600
JL-1200GF12001500216012KTA58-G3612170*21057.22801884595*2156*270010000
JL-1400GF14001750252012kTA58-G3512170*21057.23001885040*2486*293111100
JL-1500GF15001875270012KTA58-G3412170*21057.23001885382*2486*293111600
JL-1600GF16002000288012KTA58-G3312170*21057.23201885875*2392*345314300
JL-1800GF18002250324012KTA58-G3212170*21057.23201885875*2392*345314600
JL-2000GF20002500360012KTA58-G3112170*21057.23201885900*2400*345315200

The Shangchai series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.

The Shangchai diesel generator sets adopt advanced engine technology, characterized by high power and high torque. They can start instantly and output stable electricity, which can meet various high-load electricity demands.​​​​​​

Why Choose US?

  1. Proven Expertise: Over 52 engineers and 27 senior technicians ensure cutting-edge design and rigorous testing.
  2. Global Compliance: CE, ISO9001, and ISO14001 certifications guarantee quality and environmental responsibility.
  3. OEM Partnerships: As an OEM for Cummins, Perkins, and MTU, we adhere to international manufacturing standards.
  4. Lifecycle Support: 2-year warranty, 24/7 technical assistance, and spare parts availability across 26 countries.

Packaging and Delivery

Generator packaging

Generators are crated in weatherproof wooden frames with anti-corrosion coatings. We offer FOB, CIF, or EXW terms with 15–25-day lead times.

Company Profile

Generator factory

Wuhan Jlmech operates 3 R&D centers, 11 China branches, and 26 overseas offices. Our 126 technical staff and automated production lines ensure precision and scalability.

Factory After-Sales Service

Comprehensive support includes installation guidance, maintenance training, and emergency troubleshooting.

Certification

Certificate

Our products meet CE, ISO8528, and GB/T 2820-97 standards, while our systems are ISO9001/14001 certified.

Exhibitions

Exhibition

We showcase innovations at global trade shows like PowerGen Asia and Bauma China.

FAQ

Q: Can this generator run in high-temperature environments?
A: Yes, it operates efficiently in -15°C to 50°C conditions.

Q: What payment terms do you accept?
A: We support T/T, L/C, and flexible options for bulk orders.

Q: Are custom voltage configurations available?
A: Absolutely—contact us for tailored solutions.
