cultivators mini tiller rotary
Power Type:Gasoline/Diesel
Transmission:Gear
Handlebar System:UP Down Left Right
Warranty:2 Years
Usage:Gardern or Farm Culticator
Sustomized Support: OEM, ODM, OBM
Certificates: CE/ROHS
- Product Description
JLMECH：Your Trusted Cultivators Mini Tiller Rotary Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. is a trusted cultivators mini tiller rotary manufacturer and supplier, combining 20+ years of engineering expertise with globally recognized certifications (CE, ISO, GB/T). Our compact, durable equipment is designed for efficiency, backed by advanced production facilities and partnerships with brands like Cummins and Perkins.

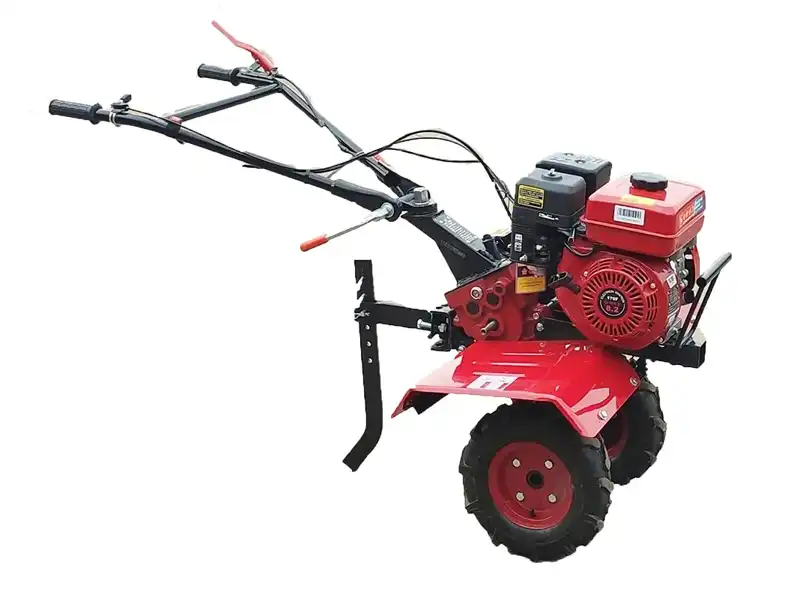

Cultivators Mini Tiller Rotary Description
Our cultivators mini tiller rotary range simplifies soil preparation, weeding, and land management for small to mid-sized farms. Ideal for rice paddies, orchards, and greenhouses, these machines balance power (6.5–15 HP) with lightweight portability (45–95 kg).
Specifications
| Product name | JLBL900G | JLBL950G | JLBL1000D | JLBL1050G | JLBL1050D | JLBL1350G | JLBL1350D |
| Operation Method | Handheld | Handheld | Handheld | Handheld | Handheld | Handheld | Handheld |
| Transmission | Gear | Gear | Gear | Gear | Gear | Gear | Gear |
| Clutch Type | Belt &Chain | Friction plate | Friction plate | Friction plate | Friction plate | Friction plate | Friction plate |
| Gear Shifting | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 |
| Gross Weight | 70kg | 65kg | 75kg | 110kg | 115kg | 115kg | 135kg |
| Net Machine Weight | 65kg | 52kg | 70kg | 105kg | 110kg | 110kg | 130kg |
| Handlebar left-right range | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ |
| Handlebar up-down range | 160℃ | 130℃ | 80℃ | 80℃ | 120℃ | 120℃ | 120℃ |
| Number of Blades | 24 | 24 | 24 | 32 | 32 | 40 | 40 |
| Tilling Depth | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm |
| Tilling Width | 900mm | 950mm | 1000mm | 1050mm | 1050mm | 1350mm | 1350mm |
| Tire Size | 350-6 inch | 350-6 inch | 350-6 inch | 400-8 inch | 400-8 inch | 400-8 inch | 400-8 inch |
| Blade Type | Dry Land Blade and Wet Land Blade & Plough Optional | ||||||
| Engine Model | 170F | 170F | 173F | 177F | 178F | 190F | 186FA |
| Fuel type | Gasoline | Gasoline | Diesel | Gasoline | Diesel | Gasoline | Diesel |
| Bore*Stroke | 70*55mm | 70*55mm | 73*59mm | 77*58mm | 78*62mm | 90*66mm | 86*72mm |
| Fuel Tank Capacity | 3.6L | 3.6L | 2.5L | 6L | 3.5L | 6L | 5.5L |
| Displacement | 212cc | 212cc | 247cc | 240cc | 296cc | 420cc | 418cc |
| Max. Power | 7.5HP | 7.5HP | 5.5HP | 9HP | 7HP | 12HP | 10HP |
| Starting Method | Recoil Start; Electric Start Optional | ||||||
| Package Size | 860*380*780mm | 1555*950*980mm | 850*460*765mm | 980*570*800mm | 980*570*800mm | 980*570*800mm | 980*570*800mm |
| Notes | During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly. Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request. | ||||||
In addition to the above parameters, we can also customize parameters and functions tailored to your needs.
cultivators mini tiller rotary use electricity as power and will not produce exhaust emissions, causing no pollution to the environment. Compared with fuel-powered tillers, they do not consume fossil fuels during use, reducing energy consumption and carbon emissions, which is in line with the requirements of modern society for environmental protection and sustainable development.
Features Designed for Tough Conditions
- Adjustable Handles: Ergonomically crafted for 8+ hours of comfortable use.
- Steel Rotary Blades: Heat-treated for wear resistance in rocky or clay-heavy soils.
- Quick-Release Attachments: Switch between tilling, ploughing, or hilling in minutes.
- Low Vibration Design: Reduces operator fatigue during extended tasks.
Advanced Production & Testing
Our cultivators mini tiller rotary units are crafted in a 15,000㎡ facility featuring:
- Automated Assembly Lines: Precision welding and component fitting.
- Powder Coating Workshop: Anti-corrosion finishes for tropical climates.
- Rigorous Testing: 48-hour performance simulations under load.
Why Partner With Wuhan Jlmech?
- OEM/ODM Services: Custom branding and performance tweaks.
- Global Logistics: 26 overseas offices streamline Africa/SE Asia deliveries.
- Competitive Pricing: Volume discounts for 50+ unit orders.
Certifications & Compliance
All equipment meets CE, ISO8528, and GB/T 2820-97 standards. Our ISO9001/14001-certified processes ensure eco-friendly manufacturing.
Exhibitions & Industry Presence
We regularly showcase innovations at AgriTech Expo, Canton Fair, and ASEAN Agriculture Summit.
Packaging & Delivery
Machines are crated in moisture-proof wood with shock-absorbent foam. Sea/air freight options available.
Factory After-Sales Service
Dedicated technical support in 8 languages. Spare parts stocked in regional warehouses for 48-hour dispatch.
FAQ
Q: Can I request a customized horsepower configuration?
A: Yes! Share your soil type and terrain; we'll optimize engine output.
Q: Do you assist with import documentation?
A: Absolutely. Our Africa/SE Asia offices handle customs clearance.
Q: What's the lead time for 300 units?
A: 25–30 days post-deposit, depending on customization.
Ready to Elevate Your Farming Operations?
Email skala@whjlmech.com for a cultivators mini tiller rotary quote tailored to your needs. Let's grow productivity together!
