cultivators mini tiller
Power Type:Gasoline/Diesel
Transmission:Gear
Handlebar System:UP Down Left Right
Warranty:2 Years
Usage:Gardern or Farm Culticator
Tilling Depth:≥100mm
Sustomized Support: OEM, ODM, OBM
Certificates: CE/ROHS
- Product Description
JLMECH:Your Trusted Cultivators Mini Tiller Manufacturer & Supplier
As a leading cultivators mini tiller manufacturer and supplier, Wuhan Jlmech Co., Ltd. combines 20+ years of engineering expertise with cutting-edge technology. With 3 R&D centers, 11 domestic branches, and 26 global offices, we deliver compact, high-performance tillers trusted by brands like Cummins and Perkins. Our ISO-certified processes, 2-year warranty, and OEM partnerships ensure unmatched reliability for agricultural, landscaping, and rental businesses.

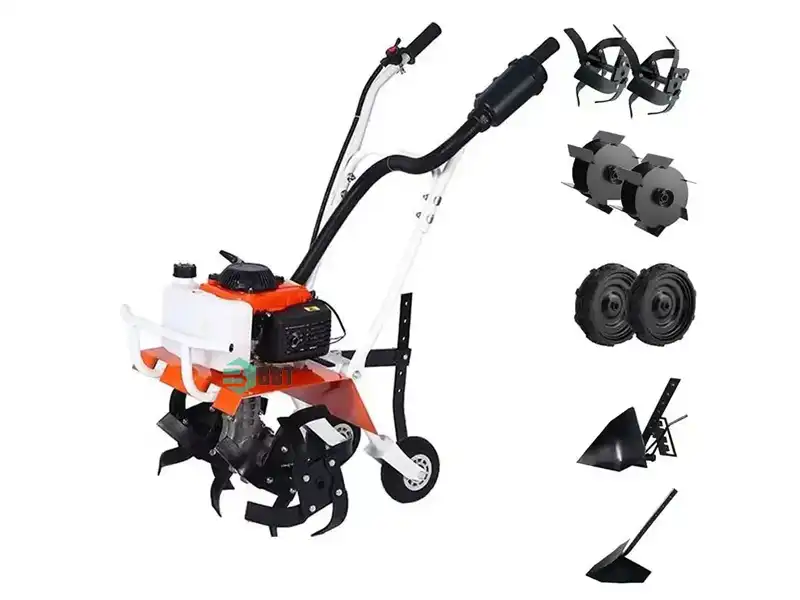

Product Cultivators Mini Tiller Description
Our cultivators mini tillers are designed for small-scale farming, urban landscaping, and horticulture. Ideal for tight spaces, they feature adjustable tilling depths, ergonomic handles, and lightweight frames. Whether prepping soil for crops or maintaining gardens, these machines balance power with ease of use.
Specifications
Product name | JLBL900G | JLBL950G | JLBL1000D | JLBL1050G | JLBL1050D | JLBL1350G | JLBL1350D |
Operation Method | Handheld | Handheld | Handheld | Handheld | Handheld | Handheld | Handheld |
Transmission | Gear | Gear | Gear | Gear | Gear | Gear | Gear |
Clutch Type | Belt &Chain | Friction plate | Friction plate | Friction plate | Friction plate | Friction plate | Friction plate |
Gear Shifting | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 | 2 , 0 , 1 , -1 |
Gross Weight | 70kg | 65kg | 75kg | 110kg | 115kg | 115kg | 135kg |
Net Machine Weight | 65kg | 52kg | 70kg | 105kg | 110kg | 110kg | 130kg |
Handlebar left-right range | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ | 360℃ |
Handlebar up-down range | 160℃ | 130℃ | 80℃ | 80℃ | 120℃ | 120℃ | 120℃ |
Number of Blades | 24 | 24 | 24 | 32 | 32 | 40 | 40 |
Tilling Depth | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm | ≥100mm |
Tilling Width | 900mm | 950mm | 1000mm | 1050mm | 1050mm | 1350mm | 1350mm |
Tire Size | 350-6 inch | 350-6 inch | 350-6 inch | 400-8 inch | 400-8 inch | 400-8 inch | 400-8 inch |
Blade Type | Dry Land Blade and Wet Land Blade & Plough Optional | ||||||
Engine Model | 170F | 170F | 173F | 177F | 178F | 190F | 186FA |
Fuel type | Gasoline | Gasoline | Diesel | Gasoline | Diesel | Gasoline | Diesel |
Bore*Stroke | 70*55mm | 70*55mm | 73*59mm | 77*58mm | 78*62mm | 90*66mm | 86*72mm |
Fuel Tank Capacity | 3.6L | 3.6L | 2.5L | 6L | 3.5L | 6L | 5.5L |
Displacement | 212cc | 212cc | 247cc | 240cc | 296cc | 420cc | 418cc |
Max. Power | 7.5HP | 7.5HP | 5.5HP | 9HP | 7HP | 12HP | 10HP |
Starting Method | Recoil Start; Electric Start Optional | ||||||
Package Size | 860*380*780mm | 1555*950*980mm | 850*460*765mm | 980*570*800mm | 980*570*800mm | 980*570*800mm | 980*570*800mm |
Notes | During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly. Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request. |
In addition to the above parameters, we can also customize parameters and functions tailored to your needs.
cultivators mini tiller is small in size and light in weight. Compared with traditional fuel-powered tillers, they are easier to operate and carry. This enables users to move the equipment more easily during use and switch between different operation areas. They are especially suitable for use in small areas such as gardens and vegetable plots, and will not cause excessive physical burden on users.
Features
- Robust Performance: Tackle rocky, clay, or loamy soil effortlessly with reinforced steel tines.
- Eco-Friendly Options: Battery-powered models reduce noise and emissions for urban projects.
- Easy Maintenance: Quick-access oil reservoirs and tool-free blade replacements.
- Safety First: Emergency stop buttons and vibration-dampening handles.

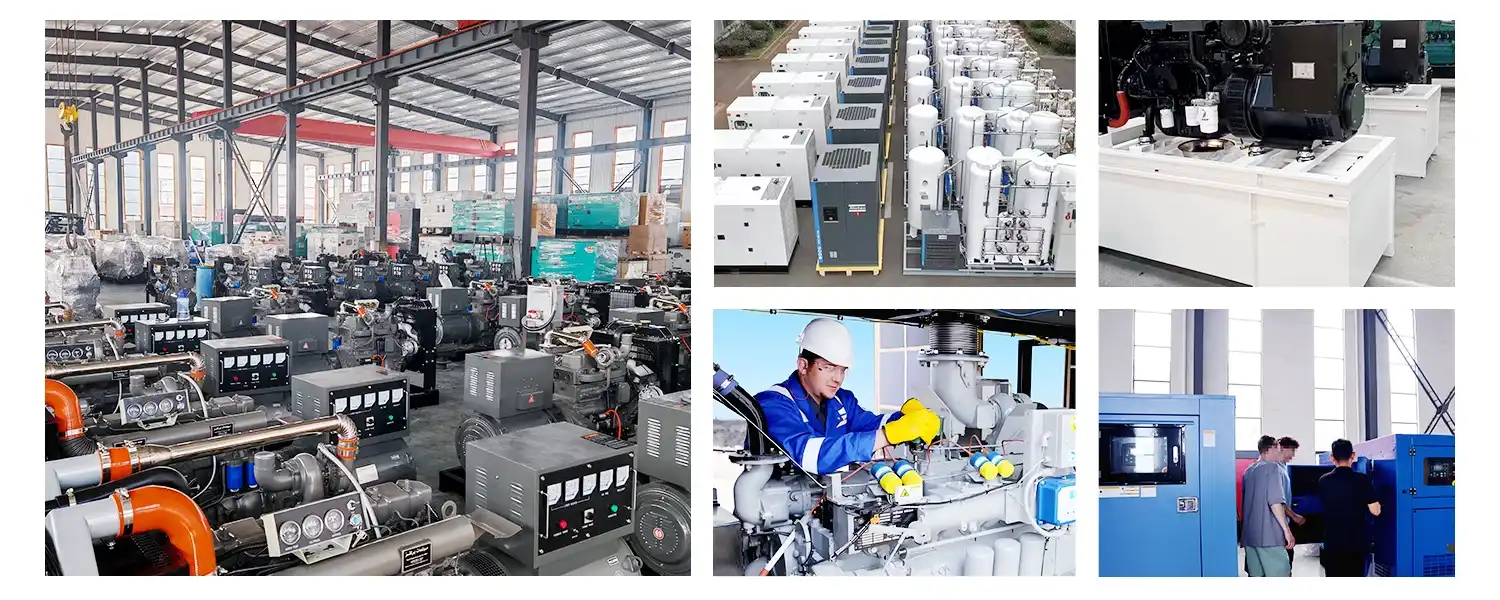

Advanced Production Equipment
Our 50,000 sqm factory houses automated powder coating lines, CNC machining centers, and precision welding robots. This ensures every mini tiller meets strict durability and safety standards.
Rigorous Machine Testing
Each unit undergoes 15+ quality checks, including load testing, vibration analysis, and moisture resistance trials. We simulate real-world conditions to guarantee longevity.
Why Choose US?
- Global Expertise: Serving clients in Africa, Southeast Asia, and Europe via 26 overseas offices.
- Tailored Solutions: Custom branding, bulk pricing, and hybrid engine configurations.
- Fast Turnaround: 10,000+ units/month production capacity with 7-day express shipping.
Certifications & Compliance
Our cultivators mini tiller comply with CE, ISO9001, and EPA standards. Regular audits ensure ethical labor practices and eco-friendly manufacturing.
Exhibition
Packaging & Delivery
Machines are disassembled, crated in shock-resistant packaging, and shipped via air/sea freight. Tracking updates provided at every stage.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and a global network of spare parts distributors.
FAQ
Q: Can these tillers handle steep terrain?
A: Yes! Our models include anti-slip wheels and adjustable handles for slopes up to 25°.
Q: Are electric models suitable for commercial use?
A: Absolutely. Lithium-ion batteries recharge in 2 hours and last 4–6 hours per cycle.
Q: Do you offer financing for bulk orders?
A: Custom payment terms and leasing options are available.
Join 500+ Satisfied Clients Worldwide
From municipal agencies to commercial nurseries, businesses trust our cultivators mini tiller for efficiency and durability. Contact us at skala@whjlmech.com to discuss your project needs. Let's grow together!
