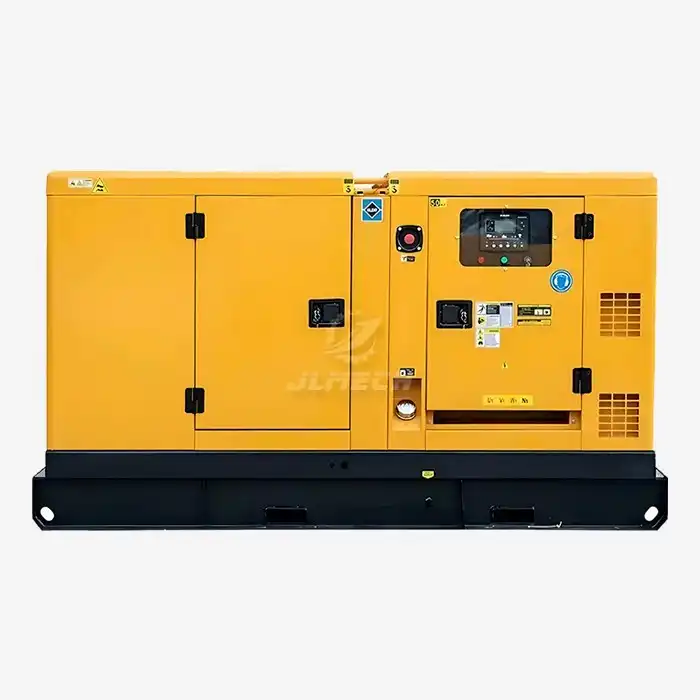

Data center generator
Rated AC Voltage(V):230V/400V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Six cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH: Your Trusted Data Center Generator Manufacturer & Supplier
As a leading Data center generator manufacturer, Wuhan Jlmech Co., Ltd. combines innovation, reliability, and global expertise. With 3 R&D centers, 126 technical experts, and ISO-certified management, we deliver robust backup power solutions trusted by clients across Africa, Southeast Asia, and beyond. Our generators prioritize fuel efficiency, durability, and compliance—ensuring seamless operations for industries worldwide.
Data Center Generator Description
Data center generator serve as the backbone for maintaining uninterrupted power in data centers, combining critical functionalities that address operational demands:
- Within 10-15 seconds of a grid failure, these generators kick into action, swiftly powering up to keep servers and infrastructure running without downtime. Their precise voltage and frequency regulation maintains a stable power flow, essential for sensitive equipment.
- Multiple units operate in parallel to enable seamless failover—if one generator malfunctions, others immediately assume the load. Large fuel tanks or external supply systems support extended runtime, ensuring continuity during prolonged outages.
- Remote monitoring capabilities allow technicians to track performance in real-time via network interfaces. Built-in diagnostic tools perform regular self-checks and trigger maintenance alerts based on operational data, streamlining upkeep while reducing manual oversight.
- Advanced engineering optimizes fuel efficiency to cut operational costs, while noise-dampening and exhaust treatment systems ensure quiet operation and environmental compliance. Emissions are kept within regulatory standards, minimizing ecological impact.
- Designed for scalability, these generators adapt to varying data center sizes and power requirements. They maintain reliable performance in challenging environments—from high-temperature, humid zones to dusty industrial settings—making them versatile across different deployments.
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-250GF | 250 | 312.5 | 450 | NTA855-G1A | 6 | 140*152 | 14 | 38 | 207 | 3100*1050*1700 | 2600 |
| JL-280GF | 280 | 350 | 504 | MTAA11-G3 | 6 | 125*147 | 11 | 38 | 210 | 3100*1050*1700 | 2700 |
| JL-280GF | 280 | 350 | 504 | NTA855-G1B | 6 | 140*152 | 14 | 38 | 206 | 3100*1050*1700 | 2950 |
| JL-300GF | 300 | 375 | 540 | NTA855-G2A | 6 | 140*152 | 14 | 38 | 206 | 3100*1100*1750 | 3000 |
| JL-320GF | 320 | 400 | 576 | NTA855-G4 | 6 | 140*152 | 14 | 38 | 205 | 3100*1150*1800 | 3100 |
| JL-320GF | 320 | 400 | 576 | QSNT-G3 | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3100 |
| JL-350GF | 350 | 437.5 | 630 | NTAA855-G7A | 6 | 140*152 | 14 | 38 | 205 | 3250*1200*1800 | 3500 |
The rotational speed in the above Cummins generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose Us?
- Proven Expertise: Over 27 senior engineers ensure cutting-edge design and performance.
- Global Compliance: Meets EU Stage V and Tier 4 emission standards for eco-friendly operations.
- Durability: Reinforced steel frame and corrosion-resistant coating for harsh environments.
- OEM Partnerships: Trusted by Cummins, Perkins, and other global brands.
- 2-Year Warranty: Full coverage for mechanical and electrical components.
Packaging and Delivery
Every Data center generator is securely packaged in weatherproof crates and shipped globally via sea or air freight.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches in China and 26 overseas offices. Equipped with automated assembly lines and a dedicated R&D team, we've powered industries in 50+ countries since 1996.
Factory After-Sales Service
Enjoy 24/7 technical support, on-site maintenance, and genuine spare parts delivery within 72 hours.
Certification
Our products hold CE, ISO9001, and ISO14001 certifications, validated through rigorous in-house testing.
Exhibitions
We showcase innovations annually at global trade fairs like PowerGen Asia and Middle East Electricity.
FAQ
Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.
Q: Can I request a customized voltage configuration?
A: Yes! Our engineers tailor solutions to your grid requirements.
Q: Do you offer financing options?
A: Flexible terms, including leasing and deferred payments, are available.
Power Your Operations with Confidence
When you choose Wuhan Jlmech's Data center generator, you invest in reliability, compliance, and long-term value. Join global clients who trust us to keep their businesses running—rain or shine.
Ready to discuss your project? Email skala@whjlmech.com today!
