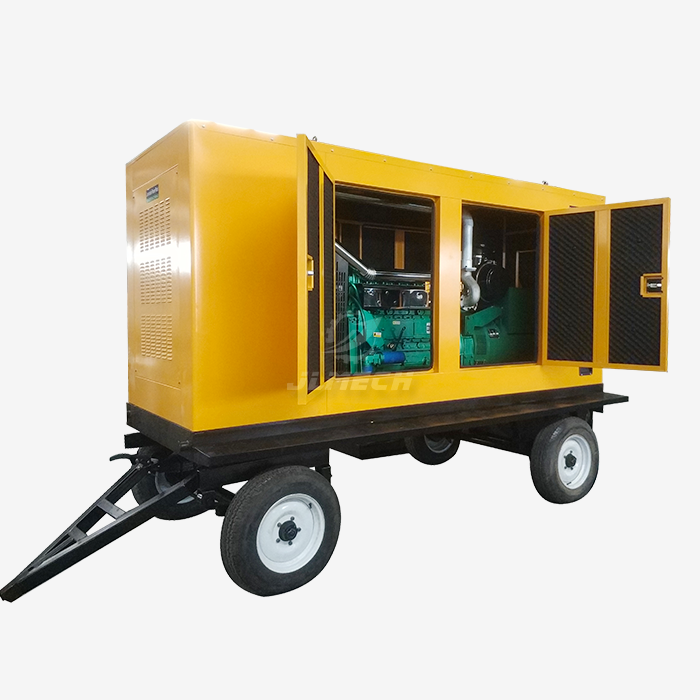

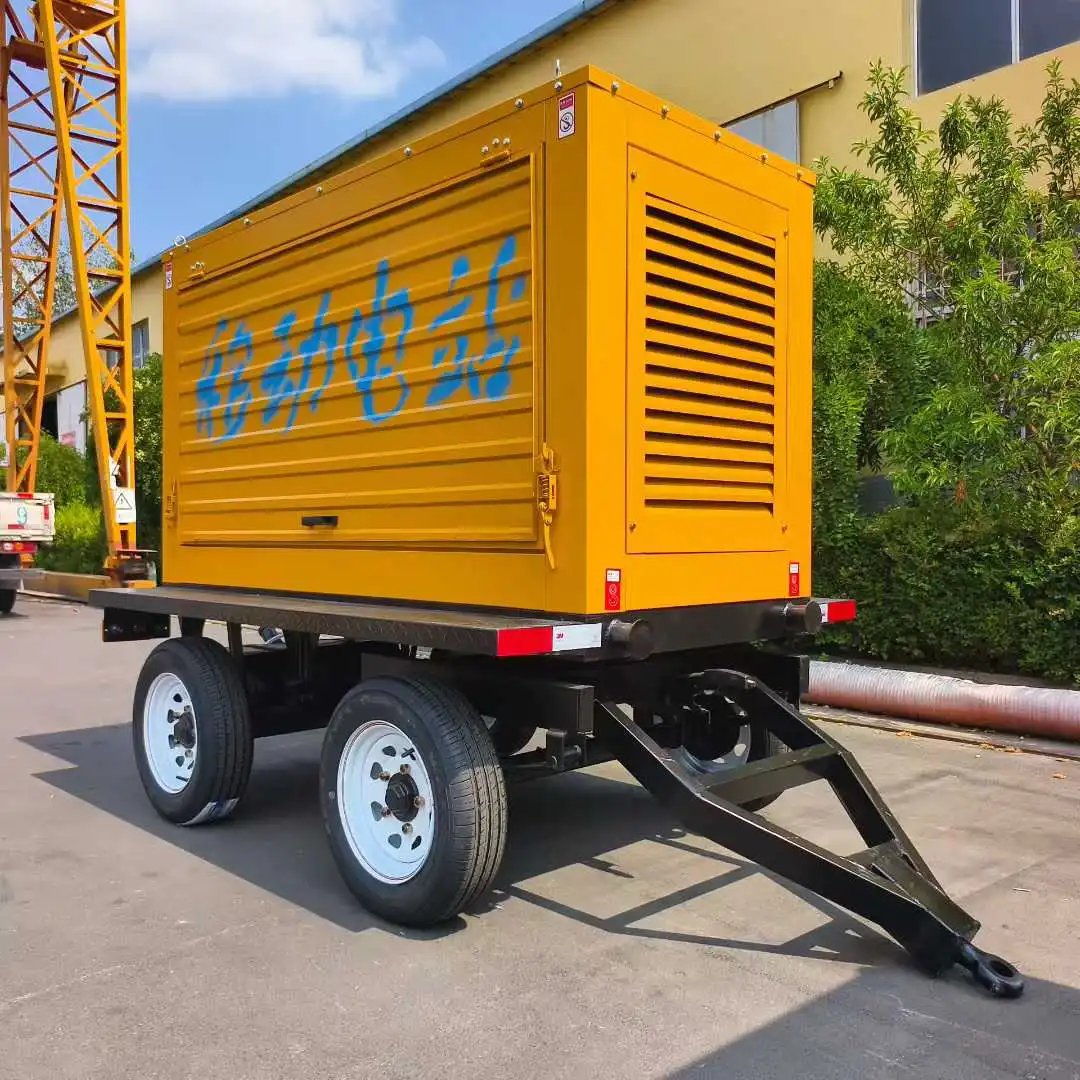

Trailer Type diesel generator
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Engine Type:Turbocharged diesel, water-cooled
Dimensions:Compact designs for easy transport
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Trailer Type diesel generator Manufacturer & Supplier
JLMECH builds rugged Trailer Type diesel generator designed for quick deployment, extreme durability, and smooth operation anywhere. Backed by ISO-certified manufacturing and over 20 years of industry know-how, our turnkey mobile power stations have earned trust across global sectors—from construction and mining to event management, disaster relief, and utilities. By combining industrial-grade generators with road-ready chassis, our trailer units deliver reliable primary or backup power even where grid access is limited or nonexistent.
Trailer Type diesel generator Description
JLMECH's Trailer Type diesel generator integrate high-performance diesel generator sets (20kW to 500kW) onto reinforced, road-legal trailer chassis. Built tough for harsh environments, they come with these key features:
- Heavy-duty undercarriage: Galvanized steel frames, mechanical/air brake systems, and rugged axles (single or tandem) rated for highway towing.
- Integrated power system: Pre-wired with weatherproof outlets, optional automatic transfer switches, and advanced Deep Sea/SmartGen controllers.
- Fuel autonomy: Large onboard tanks (200-1,000L) with external refueling ports for extended runtimes.
Specifications
Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore * Stroke(mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The Ricardo series diesel generator sets are of four-stroke, water-cooled and in-line types, and they have good power performance, economic efficiency, environmental friendliness and starting performance.
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: Backed by 52 engineers and 27 senior technicians, we optimize performance for your industry.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure quick spare parts delivery and technical assistance.
- Quality Assurance: Automated assembly lines and a 2-year warranty on all mechanical/electrical components.
- Custom Solutions: Tailor output, fuel efficiency, or noise levels to meet project-specific needs.
Packaging and Delivery
Trailer Type diesel generator are crated in weatherproof, shock-resistant packaging. We handle global logistics, including customs clearance, for timely delivery.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches across China and serves clients in 30+ countries. Our facilities include sheet metal workshop, automated coating lines, and rigorous testing labs to meet ISO9001/ISO14001 standards.
Factory After-Sales Service
We offer 24/7 technical support, on-site maintenance, and a 48-hour response guarantee for critical issues.
Certification
Our products comply with CE, CSA, UL, ISO9001, and ISO1400 standards.
Exhibitions
We showcase innovations annually at industry events like PowerGen Asia and Middle East Energy.
FAQ
Q: Can the generator integrate with solar/hybrid systems?
A: Yes! Our team designs hybrid solutions for energy diversification.
Q: What's the lead time for bulk orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.
Q: Do you provide load bank testing reports?
A: Absolutely—each unit includes a performance certificate.
Ready to Power Your Projects?
Whether you need a single Trailer Type diesel generator or a fleet, Wuhan Jlmech Co., Ltd. delivers quality you can trust. Contact us at skala@whjlmech.com for a quote tailored to your needs.
