portable mobile power station

Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4/6 cylinder
Cooling Method:Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Portable Mobile Power Station Manufacturer & Supplier

Wuhan Jlmech Co., Ltd. is a trusted portable mobile power station manufacturer and supplier with 3 R&D centers and 26 global offices. Our stations combine advanced engineering, ISO-certified quality, and a 2-year warranty. Partnering with brands like Cummins and Perkins, we deliver durable, scalable power solutions for industries worldwide.

Portable Mobile Power Station Description

Ideal for outdoor, construction, and emergency operations, our portable mobile power station offers unmatched versatility. Built with LiFePO4 batteries, it provides 2000Wh capacity and 3000W output to run heavy-duty tools, medical devices, or appliances. Solar-compatible and weather-resistant, it ensures uninterrupted power in extreme conditions.

portable mobile power station

Specifications

Power	Voltage	Electric power factor	Bore*stroke	Engine Displacement	cylinder	Oil capacity	Generator current	Starting system	Number of phases	size	Weight
KW	V	Electric power factor	mm	cc	cylinder	L	A	Starting system	Number of phases	mm	KG
30	400	C0Sϕ=0.8	100*115	3.76	4	7	54	24V DC Electric Start	Three phase four wire	20009001200	1150
50	400	C0Sϕ=0.8	105*125	5.68	4	9	90	24V DC Electric Start	Three phase four wire	21509001200	1280
80	400	C0Sϕ=0.8	105*125	6.5	6	15	144	24V DC Electric Start	Three phase four wire	260011301550	1620
100	400	C0Sϕ=0.8	105:125	6.75	6	20	180	24V DC Electric Start	Three phase four wire	290010501450	1750
150	400	C0Sϕ=0.8	105:125	7.53	6	25	270	24V DC Electric Start	Three phase four wire	295011001650	2200
200	400	C0Sϕ=0.8	126*155	11.59	6	30	360	24V DC Electric Start	Three phase four wire	340012001850	2900
250	400	C0Sϕ=0.8	126*155	11.59	6	30	451	24V DC Electric Start	Three phase four wire	360013001900	3200
300	400	C0Sϕ=0.8	126*155	11.59	6	30	541	24V DC Electric Start	Three phase four wire	37001300200	3600
400	400	C0Sϕ=0.8	129*165	16.35	6	40	721	24V DC Electric Start	Three phase four wire	395016002320	4600
500	400	C0Sϕ=0.8	152*180	19.6	6	55	902	24V DC Electric Start	Three phase four wire	490022002650	6250
800	400	C0Sϕ=0.8	200*210	39.58	6	150~180	1443	24V DC Electric Start	Three phase four wire	560022002650	9260

The Portable Power Station series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.

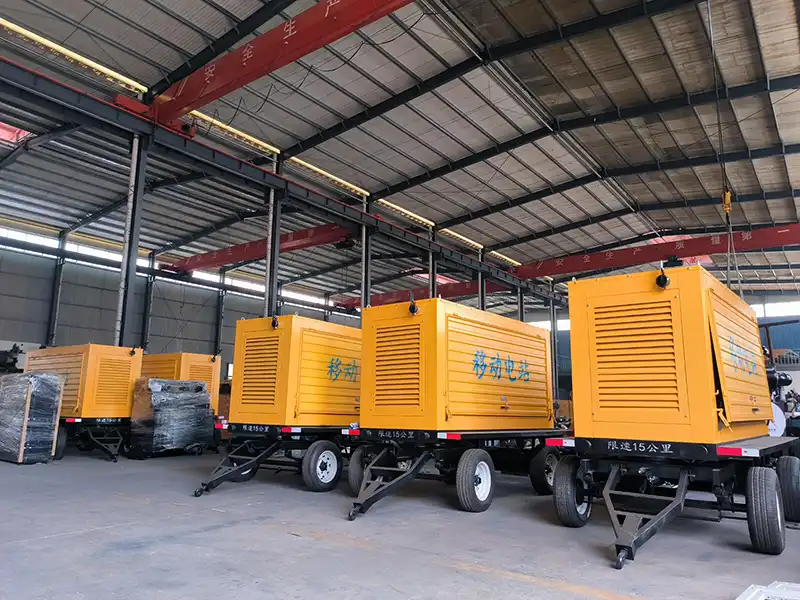

The mobile trailer diesel generator set is installed on a trailer and can be moved according to needs anytime and anywhere. It can quickly reach the designated location and be put into use, which is especially suitable for places that require temporary power supply, such as construction sites, field operations, emergency rescue and disaster relief sites, etc.

Why Choose US?

Proven Durability: Tested in harsh environments (dust, rain, -20°C to 60°C).
Scalable Power: Stack units for higher capacity or pair with solar panels.
Global Compliance: Meets CE, FCC, and ISO14001 standards for hassle-free import.
Bulk Order Flexibility: Custom branding, MOQ discounts, and LC payment terms.
24/7 Support: Engineers on standby for technical queries or troubleshooting.

Packaging and Delivery

Generator packaging

Units are shipped in shockproof, waterproof cases with foam inserts. Bulk orders dispatched in 7 days via air/sea freight.

Company Profile

Generator factory

With 126 technical experts and 11 China branches, Wuhan Jlmech specializes in industrial power solutions. Our automated production lines ensure precision and scalability.
