mobile power station 220v

Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:4/6 cylinder
Cooling Method:Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH: Your Trusted Mobile Power Station 220V Manufacturer & Supplier

 As a leading mobile power station 220V manufacturer, Wuhan Jlmech Co., Ltd. combines 15+ years of engineering expertise with advanced production facilities. Our units are built for durability, scalability, and compliance with global standards (CE, ISO8528). With 26 overseas offices and partnerships with top brands like Cummins and Perkins, we deliver trusted power solutions for construction, events, emergency services, and more.

Mobile Power Station 220V Description

Engineered for demanding environments, our mobile power station 220V provides reliable off-grid electricity to power tools, medical equipment, event stages, and critical systems. Key features include:

High Capacity: 2000–5000Wh options for extended runtime.
Solar-Ready: Integrate with solar panels for hybrid energy solutions.
Rugged Design: IP54-rated casing, shockproof, and weather-resistant.
Smart Display: Monitor battery levels, output, and charging status.
Multiple Ports: AC outlets, USB-C, DC ports, and wireless charging.

Ideal for contractors, disaster relief teams, and event planners needing silent, emission-free power.

mobile power station 220v

Specifications

Power	Voltage	Electric power factor	Bore*stroke	Engine Displacement	cylinder	Oil capacity	Generator current	Starting system	Number of phases	size	Weight
KW	V	Electric power factor	mm	cc	cylinder	L	A	Starting system	Number of phases	mm	KG
30	400	C0Sϕ=0.8	100*115	3.76	4	7	54	24V DC Electric Start	Three phase four wire	20009001200	1150
50	400	C0Sϕ=0.8	105*125	5.68	4	9	90	24V DC Electric Start	Three phase four wire	21509001200	1280
80	400	C0Sϕ=0.8	105*125	6.5	6	15	144	24V DC Electric Start	Three phase four wire	260011301550	1620
100	400	C0Sϕ=0.8	105:125	6.75	6	20	180	24V DC Electric Start	Three phase four wire	290010501450	1750
150	400	C0Sϕ=0.8	105:125	7.53	6	25	270	24V DC Electric Start	Three phase four wire	295011001650	2200
200	400	C0Sϕ=0.8	126*155	11.59	6	30	360	24V DC Electric Start	Three phase four wire	340012001850	2900
250	400	C0Sϕ=0.8	126*155	11.59	6	30	451	24V DC Electric Start	Three phase four wire	360013001900	3200
300	400	C0Sϕ=0.8	126*155	11.59	6	30	541	24V DC Electric Start	Three phase four wire	37001300200	3600
400	400	C0Sϕ=0.8	129*165	16.35	6	40	721	24V DC Electric Start	Three phase four wire	395016002320	4600
500	400	C0Sϕ=0.8	152*180	19.6	6	55	902	24V DC Electric Start	Three phase four wire	490022002650	6250
800	400	C0Sϕ=0.8	200*210	39.58	6	150~180	1443	24V DC Electric Start	Three phase four wire	560022002650	9260

The Portable Power Station series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, and a power factor of 0.8 (lagging). They adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the parameters separately.

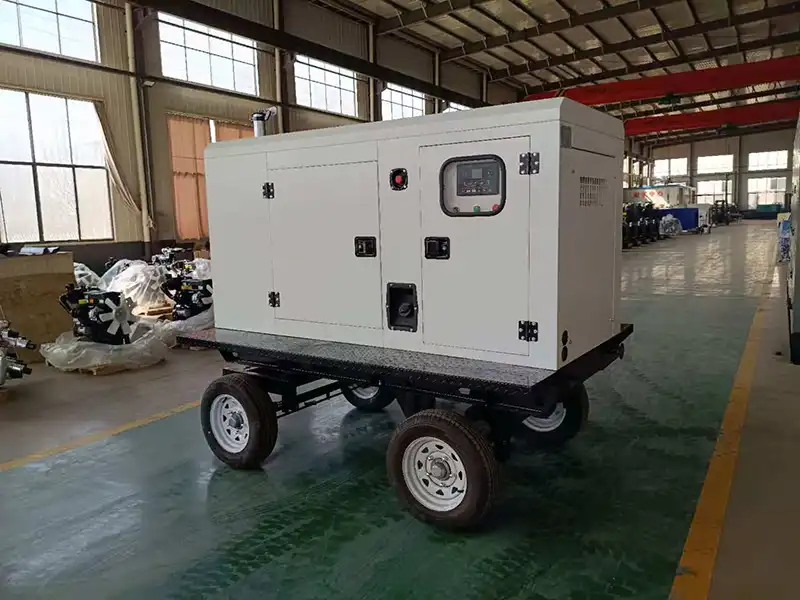

As a backup power source, the mobile trailer diesel generator set can start quickly and supply power when the utility power suddenly interrupts or the power supply is insufficient. It provides power guarantee for important equipment and places, ensures the normal progress of production, daily life and other activities, and effectively avoids losses caused by power outages.

Why Choose US?

Bulk Customization: OEM/ODM services for branded units or tailored specs.
Proven Durability: Tested in extreme temperatures (-20°C to 50°C).
Global Compliance: CE, GS, and ISO certifications ensure safety.
2-Year Warranty: Full coverage for mechanical/electrical components.
Fast Logistics: Sea/air shipping with real-time tracking.

Packaging & Delivery

Generator packaging

Each unit is securely packed in shock-absorbent, moisture-proof crates. Bulk orders prioritized with flexible Incoterms (FOB, CIF).

About Wuhan Jlmech Co., Ltd.

Generator factory

With 3 R&D centers, 11 domestic branches, and 126 technical experts, we innovate portable power solutions for 50+ countries. Our automated production lines and strict quality control guarantee consistency.

Factory After-Sales Service

24/7 technical support, spare parts availability, and onsite training for large orders.

Certifications

Certificate

CE, ISO9001, ISO14001, and GB/T 2820-97 certified.

Exhibitions

Exhibition

Regular participants at global trade shows like Canton Fair and Bauma China.

FAQ

Q: Can I customize the battery capacity?
A: Yes! We offer scalable configurations to match your project's energy demands.

Q: Do you provide bulk discounts?
A: Absolutely. Contact us for tiered pricing on 50+ units.

Q: How do I maintain the power station?
A: Minimal upkeep required. Avoid extreme discharges and store in dry conditions.

Power Your Operations with Confidence

Whether you're lighting up a remote job site or ensuring backup power for emergencies, our mobile power station 220V delivers unmatched reliability. Contact us at skala@whjlmech.com to discuss bulk orders or custom solutions.
