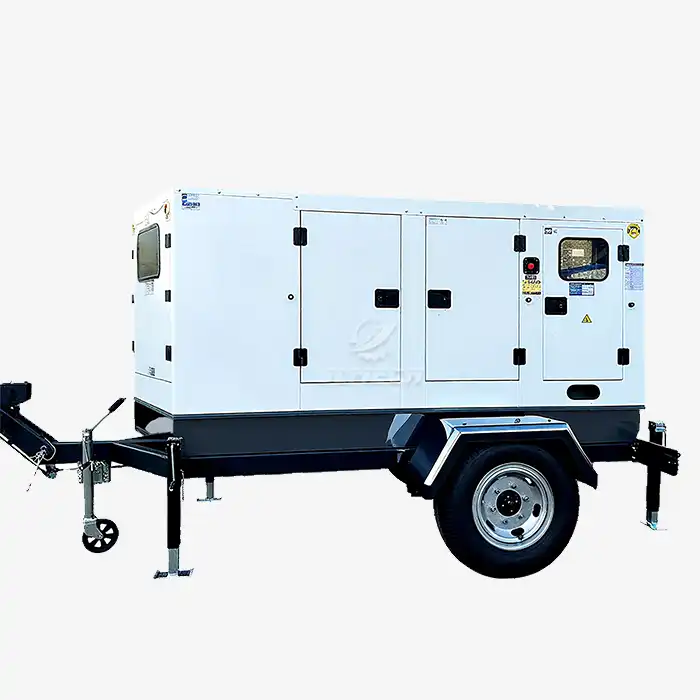

Mobile Type Diesel Generator
Rated AC Voltage(V):400/230
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Engine Type：Turbocharged diesel, water-cooled
Dimensions：Compact designs for easy transport
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH:Your Trusted Mobile Type Diesel Generator Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. has specialized in designing Mobile Type Diesel Generator systems for industries requiring reliable, low-noise power. With 3 R&D centers, 126 technical experts, and CE/ISO-certified manufacturing.With 8,000+ mobile units deployed across mining, construction, and disaster relief sectors globally, our ISO-certified manufacturing ensures every Mobile Type Diesel Generator withstands extreme transport and operating conditions.
Mobile Type Diesel Generator Description
Our Mobile Type Diesel Generator range features the following characteristics:

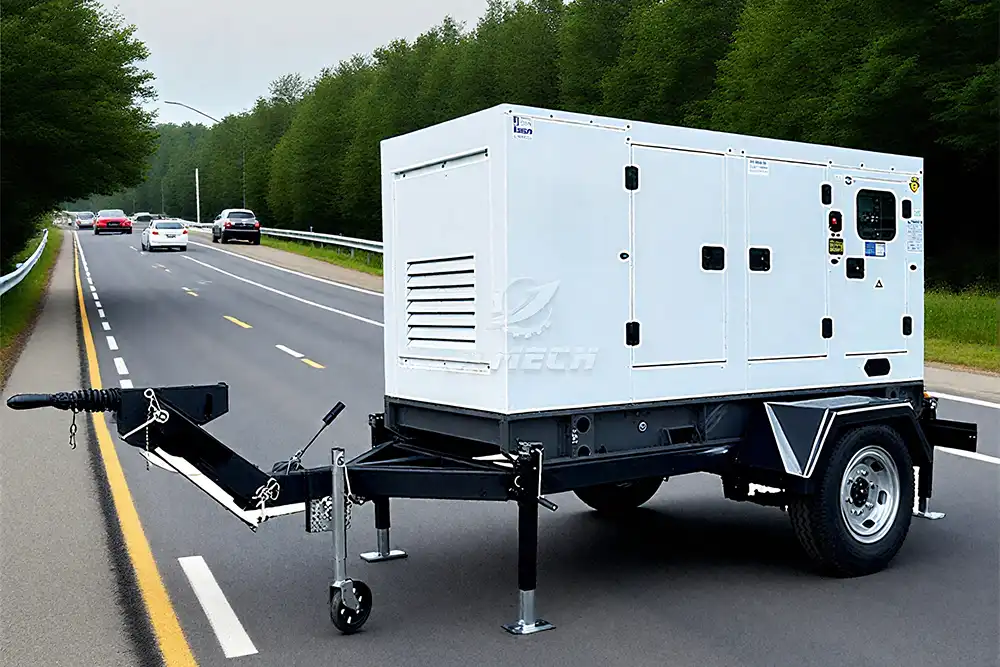

- Integrated Trailer System: Single-axle/dual-axle trailers, equipped with electric brakes, LED lights, and kingpin connectors
- All-Terrain Adaptability: Reinforced chassis, pneumatic tires, and anti-corrosion coating
- Rapid Deployment: Equipped with automatic landing legs and pre-wired quick connectors, with a setup time of less than 15 minutes
- Prime Power Capability: Equipped with Tier 3 (Stage III Emission Standards) engines (compatible with Perkins/Cummins), enabling 24/7 uninterrupted operation
- Smart Control: Anti-theft GPS tracking function + 4G remote start/stop
- Rainproof Design: Canopy with IP23 protection rating, integrated with ventilation and drainage systems
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore * Stroke(mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The Ricardo series diesel generator sets are of four-stroke, water-cooled and in-line types, and they have good power performance, economic efficiency, environmental friendliness and starting performance.
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: Backed by 52 engineers and 27 senior technicians, we optimize performance for your industry.
- Global Support: 26 overseas offices in Africa and Southeast Asia ensure quick spare parts delivery and technical assistance.
- Quality Assurance: Automated assembly lines and a 2-year warranty on all mechanical/electrical components.
- Custom Solutions: Tailor output, fuel efficiency, or noise levels to meet project-specific needs.
Packaging and Delivery
Mobile Type Diesel Generator are crated in weatherproof, shock-resistant packaging. We handle global logistics, including customs clearance, for timely delivery.
Company Profile
Wuhan Jlmech Co., Ltd. operates 11 branches across China and serves clients in 30+ countries. Our facilities include sheet metal workshop, automated coating lines, and rigorous testing labs to meet ISO9001/ISO14001 standards.
Factory After-Sales Service
We offer 24/7 technical support, on-site maintenance, and a 48-hour response guarantee for critical issues.
Certification
Our products comply with CE, CSA, UL, ISO9001, and ISO1400 standards.
Exhibitions
We showcase innovations annually at industry events like PowerGen Asia and Middle East Energy.
FAQ
Q: Can the generator integrate with solar/hybrid systems?
A: Yes! Our team designs hybrid solutions for energy diversification.
Q: What's the lead time for bulk orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.
Q: Do you provide load bank testing reports?
A: Absolutely—each unit includes a performance certificate.
Ready to Power Your Projects?
Whether you need a single Mobile Type Diesel Generator or a fleet, Wuhan Jlmech Co., Ltd. delivers quality you can trust. Contact us at skala@whjlmech.com for a quote tailored to your needs.
