generator 3 phase diesel
Rated AC Voltage(V)：400/230V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three Phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH: Your Trusted Generator 3 Phase Diesel Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. specializes in manufacturing high-performance generator 3 phase diesel for industries demanding reliable, scalable power. With 3 R&D centers, 126 technical experts, and 26 global offices, we deliver rugged, fuel-efficient generators certified to CE, ISO8528, and GB/T 2820-97 standards. As an OEM partner for Cummins, Perkins, and MTU, we combine innovation with proven engineering to keep your operations running smoothly.

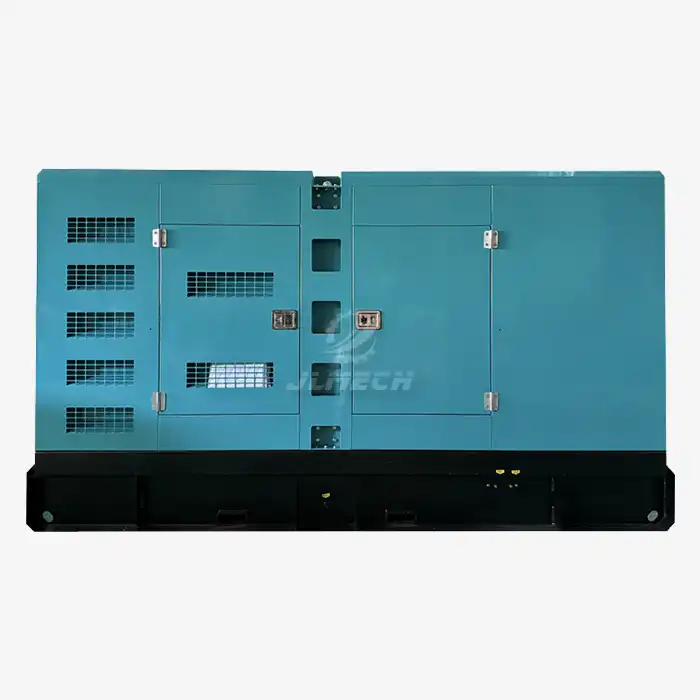

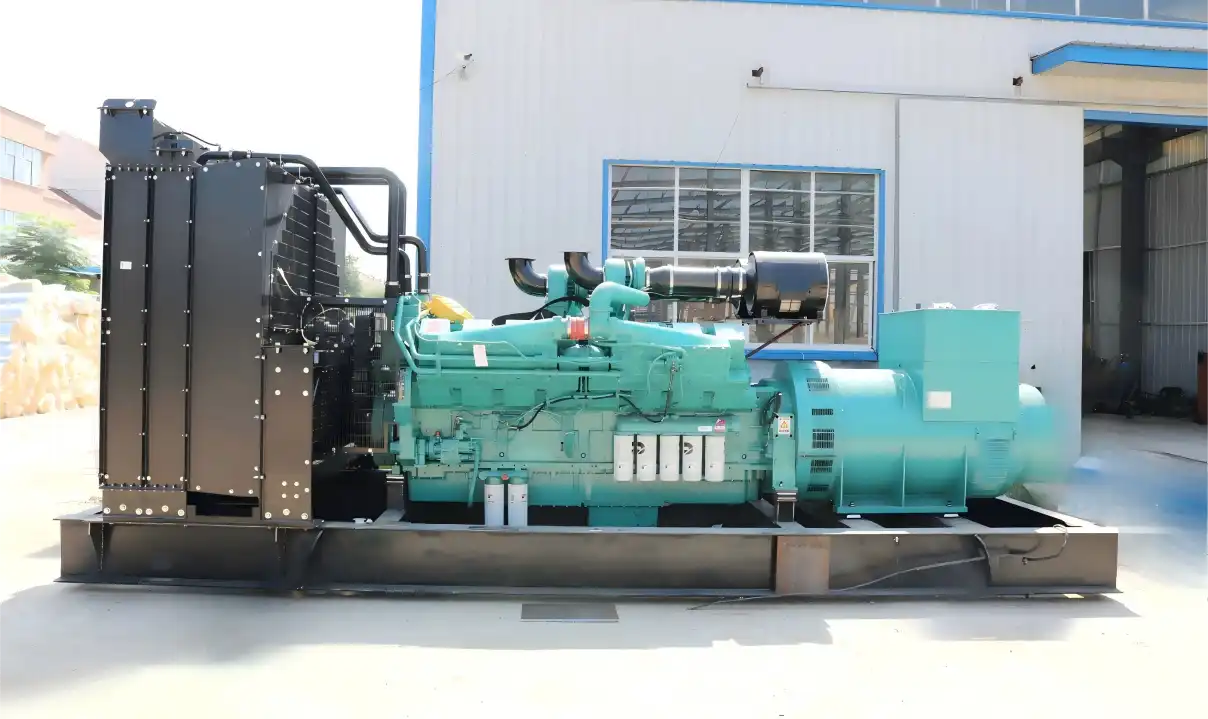

3 Phase Diesel Power Generator Description
Ideal for construction sites, hospitals, data centers, and remote facilities, our generator 3 phase diesel provide uninterrupted three-phase power. Engineered with advanced voltage regulation and noise-reduction technology (65-75 dB), they handle harsh environments while meeting EU Stage V emissions. Choose from 50kVA to 2000kVA models, with optional weatherproof or silent canopies for site-specific needs.
Specifications
| Model | Power （KW） | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke(mm) | Displacement(L) | Lube oil(L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-20GF | 20 | 25 | 36 | WP2.3D25E200 | 4 | 89*92 | 2.289 | 8 | 224 | 1800*900*1270 | 755 |
| JL-30GF | 30 | 37.5 | 54 | WP2.3D33E200 | 4 | 89*92 | 2.289 | 8 | 212 | 1800*900*1300 | 800 |
| JL-36GF | 36 | 45 | 65 | WP2.3D40E200 | 4 | 89*92 | 2.289 | 8 | 216 | 1800*900*1300 | 800 |
| JL-40GF | 40 | 50 | 72 | WP2.3D48E200 | 4 | 89*92 | 2.3 | 8 | 220 | 1800*900*1300 | 800 |
| JL-60GF | 60 | 75 | 108 | WP4.1D66E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1950*920*1340 | 1100 |
| JL-70GF | 70 | 87.5 | 126 | WP4.1D80E200 | 4 | 105*118 | 4.087 | 13 | 235 | 1850*700*1200 | 1000 |
| JL-90GF | 90 | 112.5 | 162 | WP4D100E200 | 4 | 105*118 | 4.5 | 13 | 201 | 2200*800*1340 | 1250 |
| JL-90GF | 90 | 112.5 | 162 | WP4D108E200 | 4 | 105*130 | 4.5 | 10 | 205 | 2200*820*1340 | 1250 |
| JL-150GF | 150 | 87.5 | 270 | WP60167E200 | 6 | 105*130 | 6.75 | 18 | 201 | 2550*950*1300 | 1430 |
| JL-180GF | 180 | 225 | 324 | WP10D200E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1400 | 1880 |
| JL-200GF | 200 | 250 | 360 | WP10D238E200 | 6 | 126*130 | 9.726 | 24 | 215 | 2750*1050*1500 | 2100 |
| JL-280GF | 280 | 350 | 504 | WP12D317E200 | 6 | 125*155 | 11.596 | 24 | 210 | 2900*1200*1800 | 2300 |
| JL-400GF | 400 | 500 | 720 | 6M26D447E200 | 6 | 150*150 | 15.9 | 52 | 197 | 3500*1500*1800 | 4000 |
| JL-500GF | 500 | 625 | 900 | 6M33D572E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3600*1500*1850 | 5000 |
| JL-600GF | 600 | 750 | 1080 | 6M33D670E200 | 6 | 150*185 | 19.6 | 61 | 210 | 3650*1500*1900 | 6000 |
| JL-800GF | 800 | 1000 | 1440 | 12M260902E200 | 12 | 150*150 | 31.8 | 109 | 210 | 4500*1850*2200 | 8000 |
| JL-1000GF | 1000 | 1250 | 1800 | 12M33D1108E200 | 12 | 150*185 | 39.2 | 155 | 210 | 4800*2000*2350 | 9200 |
| JL-1100GF | 1100 | 1375 | 1980 | 12M33D1210E200 | 12 | 150*185 | 39.2 | 155 | 210 | 4800*2000*2350 | 9300 |
| JL-1200GF | 1200 | 1500 | 2160 | 12M33D1320E200 | 12 | 150*185 | 39.2 | 155 | 210 | 4800*2050*2450 | 9800 |
| JL-1500GF | 1500 | 1875 | 2700 | 16M33D1680E310 | 16 | 150*185 | 52.3 | 171 | 216 | 5200*2500*2700 | 11900 |
| JL-1800GF | 1800 | 2250 | 3240 | 12M55D2020E310 | 12 | 180*215 | 65.65 | 480 | 199 | 6100*2350*2800 | 16900 |
| JL-2200GF | 2200 | 2750 | 3960 | 12M55D2450E310 | 12 | 180*215 | 65.65 | 480 | 203 | 6100*2350*2800 | 17500 |
The rotational speed in the aboveWeichai generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
- Power Output: 50kVA–2000kVA
- Voltage: 400V/415V (±2% stability)
- Fuel Consumption: 0.3L/kWh (optimized for cost efficiency)
- Noise Level: 65–75 dB(A) at 7m
- Compliance: CE, ISO8528, EPA Tier 4 Final
- Warranty: 2 years (mechanical + electrical)
Customizable features include extended fuel tanks, automatic transfer switches, and remote monitoring.
Why Choose US?
- Global Support: 26 overseas offices ensure spare parts and technicians are nearby.
- OEM Expertise: Trusted by Cummins, Perkins, and MTU for precision engineering.
- Rapid Delivery: Pre-tested units ship globally within 15–30 days.
- Lifetime Cost Savings: High fuel efficiency and low maintenance reduce downtime.
Packaging and Delivery
Generator 3 phase diesel are crated in anti-corrosion frames and shipped via air/sea freight with real-time tracking.
About Wuhan Jlmech Co., Ltd.
With 11 branches in China and ISO 9001-certified management, we've powered industries since 2005. Our 52-engineer team designs solutions for mining, agriculture, telecom, and disaster response.
Factory After-Sales Service
Enjoy a 2-year warranty, 24/7 technical support, and on-site maintenance contracts.
Certification
Compliant with CE, ISO8528, ISO9001, and ISO14001.
Exhibitions
Featured at PowerGen Asia, Bauma China, and Africa Energy Forum.
FAQ
Q: Can you customize generators for extreme climates?
A: Yes! We design units with tropical cooling or arctic-grade insulation.
Q: What's the lead time for bulk orders?
A: 15–30 days, depending on customization.
Q: Do your generators comply with EU emissions?
A: Absolutely. All units meet EU Stage V and EPA standards.
Q: Can you integrate solar hybrid systems?
A: We offer diesel-solar hybrids for eco-conscious markets.
Power Your Future with Wuhan Jlmech
Whether you're reinforcing grids in Africa or safeguarding a data center, our generator 3 phase diesel deliver unmatched reliability. Contact us at skala@whjlmech.com to discuss your project. Let's engineer continuity, together.
