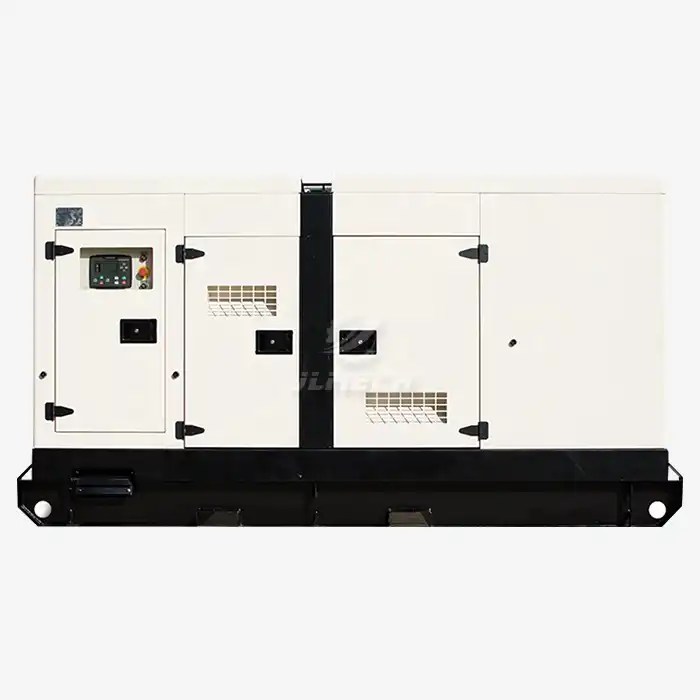

Diesel generators used in hospitals
Rated AC Voltage(V)：110V/220V/380V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
- Product Description
JLMECH：Your Trusted Diesel Generators Used In Hospitals Manufacturer & Supplier
Wuhan Jlmech Co., Ltd. is a leading Diesel generators used in hospitals manufacturer and supplier with 29+ years of expertise. We specialize in manufacturing diesel generators for hospitals that meet the stringent requirements of healthcare environments. Our ISO-certified production bases and rigorous testing processes ensure that every generator exceeds international standards for emergency power systems (such as ISO 8528 and NFPA 110 Level 1). When lives depend on uninterrupted power supply, medical institutions in more than 60 countries worldwide trust JLMECH's turnkey solutions – from advanced prime-rated generators to seamless system integration and 24/7 global support services.

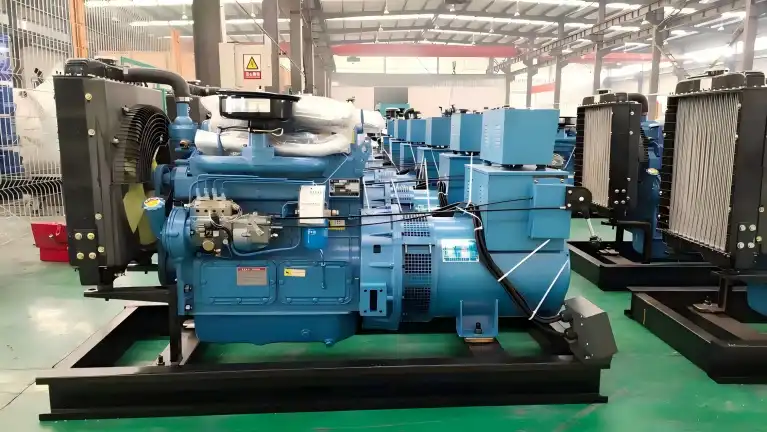

Diesel Generators Used In Hospitals Description
Hospital power systems demand more than backup electricity – they require intelligent, fail-safe infrastructure. JLMECH’s diesel generators used in hospitals are engineered as integrated life-support systems with these critical features:
Life-Safety Compliance
- Automatic Transfer Switches (ATS) with <10-second startup (per NFPA 110)
- Dual-fuel capability (diesel + natural gas) for extended runtime
- UL 2200 certification for healthcare facilities
- Seismic-rated enclosures (IBC Zone 4 compatibility)
Critical System Protection
- 0.8 PF rated for nonlinear medical loads (MRI, CT scanners, lab equipment)
- Harmonic dampening (<5% THD) to prevent equipment damage
- Integrated diesel generator breaker systems with selective coordination to isolate faults without cascading failures
Specifications
| Unit model | Power（KW） | Power（KVA） | current（A） | Engine model | Cylinder | Bore×Stroke | Displacement | Lube oil | fuel consumption ( g/kw.h) | Size（mm） | Weight（Kg） |
| JL-24GF | 24 | 30 | 43.2 | 4B3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 1620*710*1100 | 710 |
| JL-30GF | 30 | 37.5 | 54 | 4BT3.9-G2 | 4 | 102*120 | 3.9 | 11 | 208 | 700*710*1110 | 800 |
| JL-40GF | 40 | 50 | 72 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 1800*800*1200 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 210 | 800*800*1200 | 950 |
| JL-64GF | 64 | 80 | 115.2 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 210 | 1850*800*1200 | 1000 |
| JL-80GF | B0 | 100 | 144 | 6BT5.9-G2 | 6 | 102*120 | 5.9 | 16 | 210 | 2200*800*1200 | 1250 |
| JL-100GF | 100 | 125 | 180 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 20 | 207 | 2200*800*1200 | 1300 |
| JL-120GF | 120 | 150 | 216 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 24 | 207 | 2250*800*1200 | 1350 |
| JL-132GF | 132 | 165 | 237.6 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 24 | 207 | 2300*820*1300 | 1350 |
| JL-150GF | 150 | 187.5 | 270 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2300*820*1330 | 1600 |
| JL-180GF | 180 | 225 | 324 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 24 | 207 | 2550*1050*1480 | 1700 |
| JL-200GF | 200 | 250 | 360 | 6LTAA8.9-G2 | 6 | 114*145 | 8.9 | 28 | 207 | 2550*1050*1500 | 2000 |
| JL-220GF | 220 | 275 | 396 | 6LTAA8.9-G3 | 6 | 114*145 | 8.9 | 28 | 203 | 2550*1050*1500 | 2000 |
| JL-400GF | 400 | 500 | 720 | QSZ13-G2 | 6 | 130*163 | 13 | 28 | 201 | 3150*1360*1800 | 3200 |
| JL-450GF | 450 | 562.5 | 810 | QsZ13-G3 | 6 | 130*163 | 13 | 28 | 201 | 3160*1360*1800 | 3300 |
| JL-500GF | 500 | 625 | 900 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 206 | 3500*1380*1800 | 4000 |
| JL-600GF | 600 | 750 | 1080 | KT38-GA | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7000 |
| JL-700GF | 700 | 875 | 1260 | KTA38-G2B | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-800GF | 800 | 1000 | 1440 | KTA38-G2A | 12 | 159*159 | 38 | 100 | 206 | 4350*1800*2350 | 7500 |
| JL-900GF | 9D0 | 1125 | 1620 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1800*2350 | 8200 |
| JL-1000GF | 1000 | 1250 | 1800 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 208 | 4450*1850*2350 | 8200 |
| JL-1100GF | 1100 | 1375 | 1980 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 205 | 5000*2040*2430 | 9500 |
| JL-1200GF | 1200 | 1500 | 2160 | KTA50-G8 | 16 | 159*159 | 50 | 204 | 205 | 5350*2110*2500 | 10000 |
The rotational speed in the above technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230 V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose US?
- Proven Expertise: 52 engineers and 27 senior engineers drive innovation in energy solutions.
- Global Compliance: CE, ISO8528, and GB/T 2820-97 certifications ensure safety and performance.
- End-to-End Support: 2-year warranty, 24/7 technical assistance, and localized service hubs in Africa/Asia.
- OEM-Ready: Customizable designs for brands seeking private-label partnerships.
Diesel generators used in hospitals is crated in anti-corrosion steel frames and shipped via sea/air freight with real-time tracking.
Company Profile
Founded in 1996, Wuhan Jlmech operates 11 branches in China and 26 overseas offices, supported by automated production lines and 126 technical staff.
Factory After-Sales Service
Comprehensive 2-year warranty covering mechanical and electrical components, plus onsite maintenance contracts.
Certification
ISO9001, ISO14001, CE, GS, and ISO8528-certified manufacturing processes.
Regular participation in global trade shows like PowerGen Asia and Middle East Energy.
FAQ
Q: Can your diesel generators handle extreme temperatures?
A: Yes! Units are tested for -20°C to 55°C operation.
Q: Do you offer financing for bulk orders?
A: Flexible leasing and deferred payment options are available.
Q: What's the lead time for 50+ units?
A: 4–6 weeks, depending on customization.
Trusted by Global Brands, Built for Your Needs
Whether you're powering a remote mine or safeguarding a hospital, Wuhan Jlmech's Diesel generators used in hospitals solutions guarantee unmatched uptime and ROI. Contact us at skala@whjlmech.com to discuss your project – let's keep your operations running, rain or shine.
