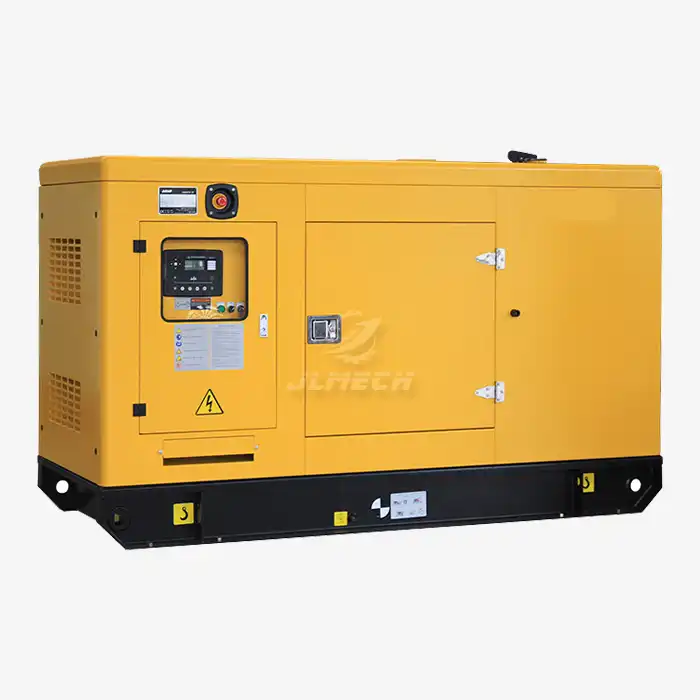

25kVA diesel set
Rated AC Voltage(V)：110V/220V/380V/400V
Frequency(HZ):50HZ/60HZ
Engine Speed(R.P.M):1500-3000
Phase:Single/Three phase
Type:Silent/Open Frame
Engine Type:Two/Four cylinder
Cooling Method: water Cooling
Starting Method:Electric starting
Fuel Efficiency: Up to 30% savings with smart load optimization.
Noise Levels: As low as 65 dB(A) with soundproof enclosures.
Compliance: CE, ISO8528, GB/T 2820-97
Optional Features: Remote monitoring, auto-start/stop, and trailer/container mounting.
- Product Description
JLMCH-Your Trusted Partner in 25kVA Diesel Set
As a specialized generator manufacturer with over 20 years of industrial experience, our factory is dedicated to developing robust and efficient power solutions tailored to diverse global needs. Our 25kVA diesel set embodies this commitment, delivering reliable performance, fuel efficiency, and adaptability for applications where space, budget, and operational flexibility are key considerations.
25kVA Diesel Set Description
Multi-Scenario Adaptability: This 25kVA diesel set is ideal for small farms, retail stores, remote telecom stations, and workshops, providing sufficient power for irrigation systems, refrigeration units, communication devices, and essential machinery. Its compact design allows easy integration into existing setups without requiring significant space or infrastructure modifications.
Intuitive Control and Monitoring: Equipped with a smart digital panel featuring clear display indicators, multilingual support, and one-touch auto-start/stop functionality, the set ensures effortless operation even for non-technical users.
Enhanced Portability and Rapid Deployment: Optional skid or trolley configurations enable quick relocation and setup, making it suitable for temporary sites, emergency backup, or mobile operations.
Low Noise and Eco-Friendly Performance: Engineered with noise-reduction technology (below 75 dB at 7 meters) and compliant emissions control, the set operates discreetly and responsibly in residential or environmentally sensitive areas.
Reliable Power Quality: Advanced AVR technology maintains voltage stability within ±1% and frequency regulation within ±0.5%, safeguarding sensitive electronics and ensuring consistent performance under varying loads.
Applications
- Emergency power for data centers, hospitals, and telecom towers.
- Primary energy for off-grid construction sites and agricultural operations.
- Hybrid systems integrating solar/wind energy for sustainable power.
Specifications
| Rated frequency | Diesel engine | Standard power | Rated current (A) | Rated voltage | Rated frequency | Bore × Stroke (mm) | Rated speed | Type | cylinder | Dimensions (cm) | Weight (kg) |
| JL-30GF | K4100D | 30.1kW | 54A | 400V/230V | 50Hz | 100*115 | 1500rpm | inline four-stroke water-cooled direct injection | 4 | 165*65*110 | 500kg |
| JL-40GF | K4100ZD | 41kW | 72A | 400V/230V | 50Hz | 100*115 | 1500rpm | 4 | 165*65*110 | 540kg | |
| JL-50GF | ZH4105ZD | 55kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*63*104 | 600kg | |
| JL-50GF | R4105ZD | 56kW | 90A | 400V/230V | 50Hz | 105*125 | 1500rpm | 4 | 175*73*110 | 750kg | |
| JL-75GF | R6105ZD | 85kW | 135A | 400V/230V | 50Hz | 105*130 | 1500rpm | 6 | 234*73*120 | 900kg | |
| JL-100GF | R6105AZLD | 121kW | 180A | 400V/230V | 50Hz | 105'130 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-120GF | R61051ZLD | 132kW | 216A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1050kg | |
| JL-150GF | R6105IZLD | 151kW | 270A | 400V/230V | 50Hz | 105*135 | 1500rpm | 6 | 234*73*120 | 1100kg | |
| JL-150GF | R6110ZLD | 155kW | 270A | 400V/230V | 50Hz | 110*135 | 1500rpm | 6 | 234*75*130 | 1120kg | |
| JL-200GF | 6126ZLD | 206kW | 360A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1800kg | |
| JL-250GF | 6126ZLD1 | 256kW | 450A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95'150 | 1800kg | |
| JL-300GF | 6126ZLD2 | 308kW | 540A | 400V/230V | 50Hz | 126*130 | 1500rpm | 6 | 290*95*150 | 1900kg | |
| JL-300GF | 618ZLD | 338kW | 540A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*100*180 | 2000kg | |
| JL-400GF | 6126ZLD3 | 408kW | 720A | 400V/230V | 50Hz | 126*155 | 1500rpm | 6 | 300*110"160 | 2000kg | |
| JL-500GF | 6126ZLD4 | 508kW | 900A | 400V/230V | 50Hz | 127*165 | 1500rpm | 6 | 340*110*180 | 2400kg |
The rotational speed in the above Ricard generator set technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose Us?
- Proven Expertise: 52 engineers ensure cutting-edge performance and customization.
- Global Support: 26 overseas offices in Africa/Asia provide rapid spare parts and maintenance.
- Warranty: 2-year coverage for mechanical/electrical components.
- OEM-Ready: Custom branding for bulk buyers and distributors.
Packaging and Delivery
All are securely crated with weather-resistant materials and shipped globally via trusted logistics partners.
Company Profile
With 11 branches in China and 3 R&D centers, we serve clients in 50+ countries, prioritizing innovation and sustainability.
Factory After-Sales Service
24/7 technical support, on-site maintenance, and extended warranty options.
Certification
ISO9001, ISO14001, CE, GS, and OEM approvals from Cummins, Perkins, and MTU.
Exhibitions
Meet us at POWERGEN Asia and Middle East Energy to explore live demos.
FAQ
Q: What's the lead time for bulk orders?
A: Standard orders ship in 15-30 days, with expedited options available.
Q: Do you provide financing?
A: Flexible payment terms and leasing plans are available for large projects.
Need a Reliable Power Partner?
Whether you're upgrading infrastructure or securing backup energy, our 25kVA diesel set offer unmatched durability and value. Contact us at skala@whjlmech.com to discuss your project.
