Diesel Installation Service: Process & Acceptance Criteria
For businesses relying on diesel generators for primary or backup power, the quality of installation directly determines system reliability, safety, and operational lifespan. A professional Diesel installation service is not merely about placing a generator on site; it's an integrated engineering process that ensures your power system performs optimally when needed most. From initial site assessment to final commissioning, following a structured installation protocol with clear acceptance criteria helps prevent common operational failures and ensures compliance with international standards. This comprehensive guide outlines the critical phases and validation benchmarks of a professional Diesel installation service.
Pre-Installation Assessment
The foundation of a successful installation lies in thorough preliminary planning and site evaluation. This phase determines all subsequent engineering decisions.
Site Survey: Technicians evaluate environmental conditions, ensuring the location provides adequate ventilation with ambient temperature ≤40°C, sufficient space for maintenance access, and protection from environmental elements.
Load Analysis: The electrical engineering team calculates your facility's power requirements to ensure proper generator sizing and prevent future overloading issues.

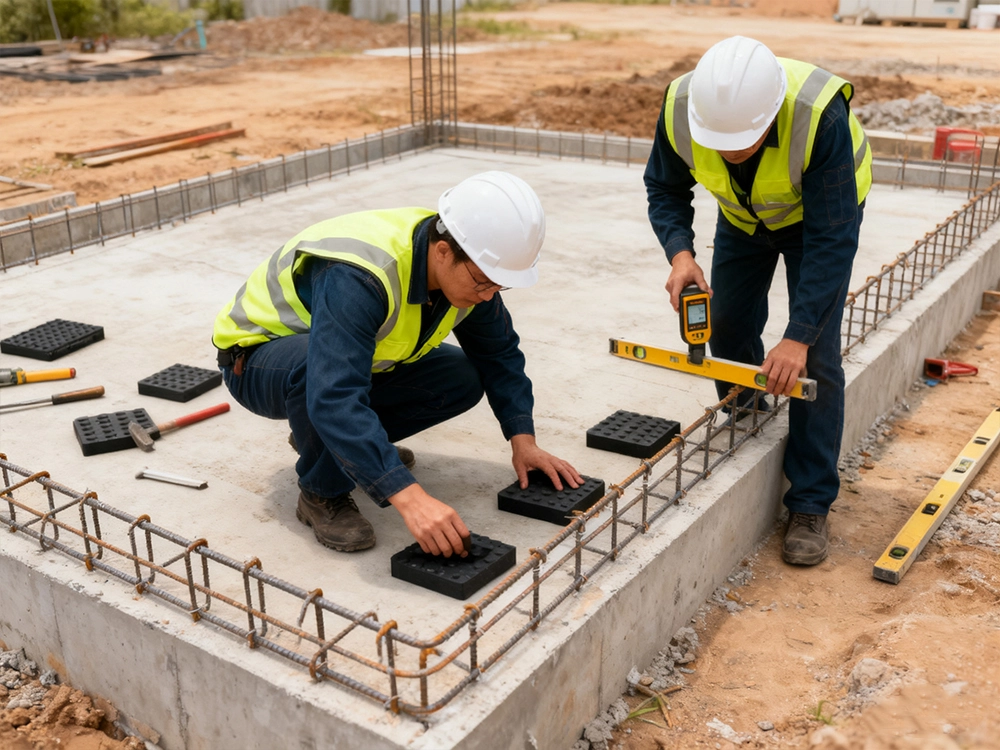

Foundation Inspection: The concrete foundation is verified for sufficient mass and dimensions (typically 200mm concrete with anti-vibration pads) and precise leveling before equipment placement.
Regulatory Compliance Check: Installation plans are reviewed against local codes and international standards, including fuel system specifications and emission requirements.
Installation Process
The physical installation follows a meticulous sequence where each step builds upon the previous one, ensuring mechanical integrity and system compatibility.

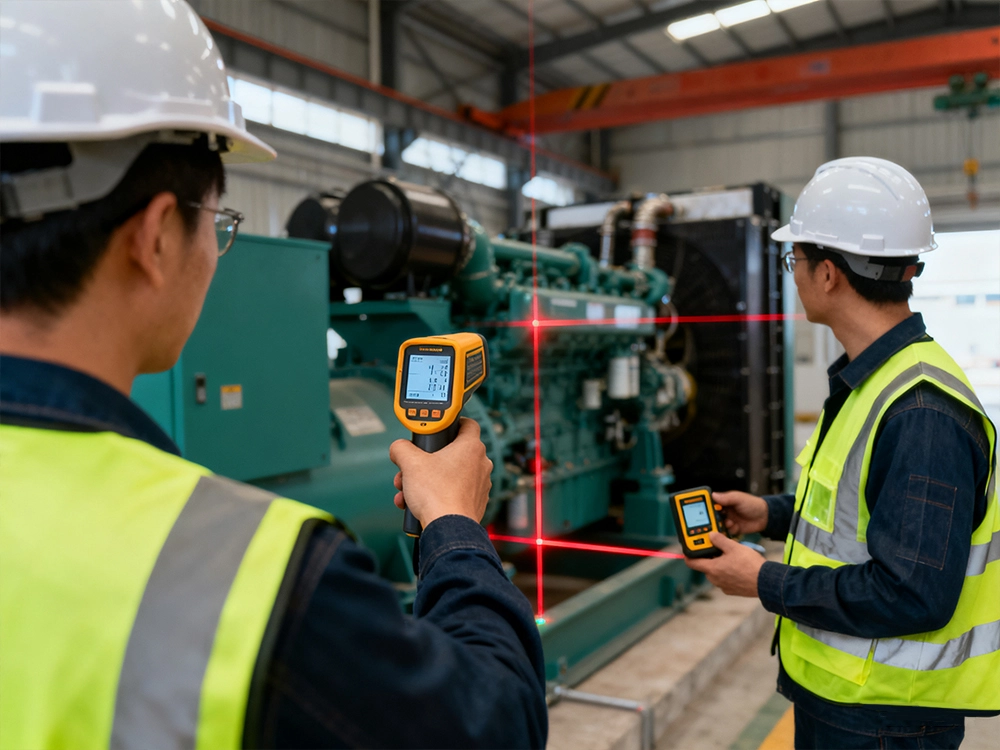

Equipment Positioning: The generator set is carefully positioned using appropriate lifting equipment, with anti-vibration dampers properly installed to minimize structural transmission of vibrations.
Mechanical Integration: This includes the installation of the exhaust system with proper piping diameter (not less than the silencer interface), and protection against rainwater ingress.

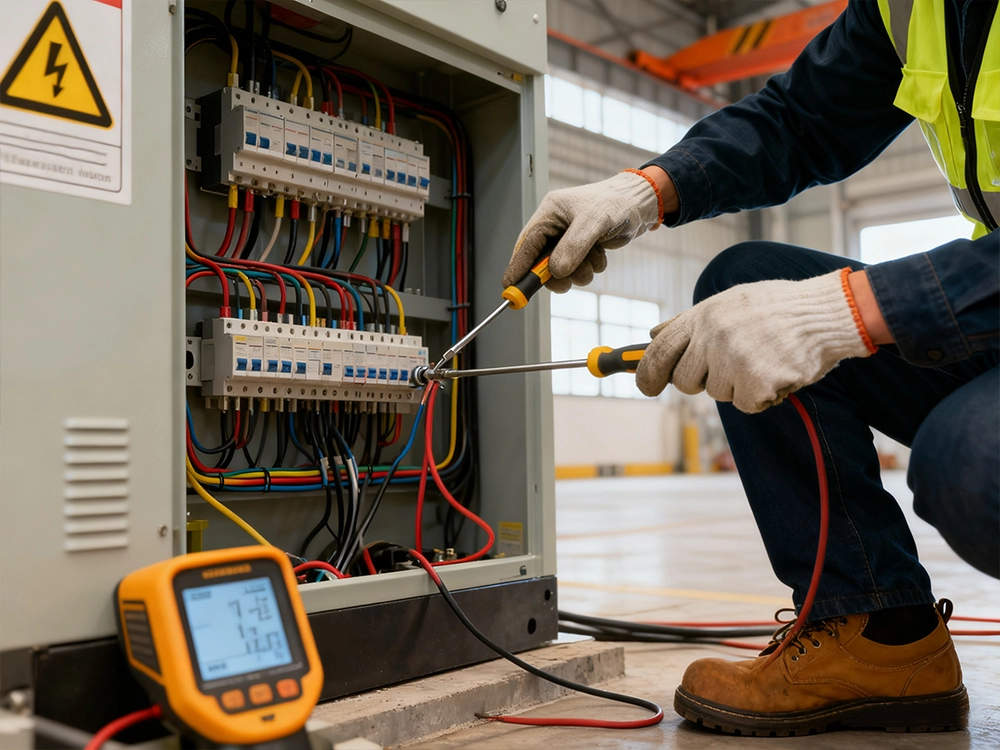

Electrical Connection: Qualified electricians implement the electrical system with neutral line dedicated grounding, phase sequence verification, and protection against back-feeding from the grid.
Fuel System Installation: The fuel system is installed according to recognized practices for stationary diesel engines, ensuring safe integration of tanks, piping, and auxiliary equipment.
Commissioning and Testing
Before the generator is declared operational, a rigorous validation process verifies all systems function according to design specifications.
Pre-Functional Tests: Individual components are checked for damage, deterioration, and proper installation, verifying that shipping braces have been removed and components are clean.
Safety System Verification: All safety interlocks, emergency shutdown mechanisms, and alarm systems are methodically tested to ensure they function under simulated fault conditions.
No-Load Operation: The generator runs without load to verify stable operation, proper engine parameters, and correct voltage and frequency output.

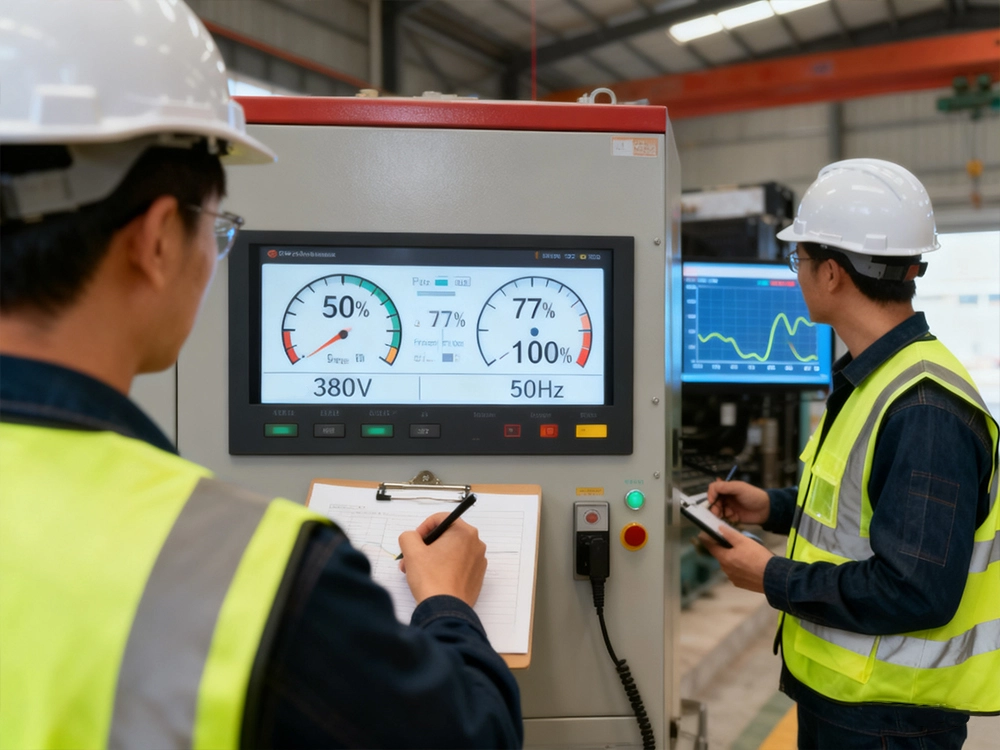

Load Testing: Gradually applied loads validate the generator's performance across its operating range, including tests at 50%, 75%, and 100% of rated capacity
Acceptance Criteria
Clear benchmarks determine when an installation is ready for handover to the client, with comprehensive documentation provided for future reference.
Performance Validation: The system must demonstrate stable operation with correct voltage and frequency regulation across the entire load range.
Safety Compliance: All safety systems must be fully functional with appropriate fire prevention equipment in place per design or regulatory requirements.
Documentation Review: Complete documentation is provided, including equipment manuals, as-built drawings, test reports, and compliance certificates.
Training and Handover
A professional Diesel installation service culminates with comprehensive knowledge transfer to ensure clients can operate and maintain their equipment confidently.
System Operation Overview: Facility personnel receive instruction on normal operating procedures, routine monitoring parameters, and basic troubleshooting techniques.
Maintenance Orientation: The maintenance team is trained on preventive maintenance schedules, including filter changes, fluid analysis, and component inspection frequencies.
Documentation Package: The client receives a complete operations and maintenance manual containing all warranty information, service contact details, and recommended spare parts.
Conclusion
A professionally executed diesel generator installation is a multifaceted engineering process that extends far beyond simple equipment placement. By adhering to a structured methodology with clear verification milestones, a quality Diesel installation service ensures your power system delivers reliable performance, complies with safety standards, and achieves its designed operational lifespan. The investment in professional installation pays dividends through enhanced system reliability, reduced maintenance costs, and operational peace of mind.
References
T/UNP 519-2025 Mechanical equipment installation management specification. (2025). China Standard Service Network.
PEI RP1400-21: Recommended practices for design and installation of fueling systems for diesel-powered generators. (2014). Standard Online.
Pre-functional test plan and functional performance test plan for diesel fuel and lube oil systems. (2020). Mypdh.engineer.
