perkins 100kva diesel generator

Brand:Perkins
AC Output(KW):80KW/100KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB
Send Inquiry Download
  • Product Description

JLMECH：Your Trusted Perkins 100kVA Diesel Generator Partner

Wuhan Jlmech Co., Ltd. is a trusted Perkins 100kVA diesel generator supplier, combining Perkins' global engineering excellence with our 20+ years of industrial expertise. With 3 R&D centers, 126 technical experts, and ISO-certified production systems, our generators deliver unmatched durability, fuel efficiency, and compliance for construction, healthcare, telecom, and industrial sectors.

perkins 100kva diesel generator

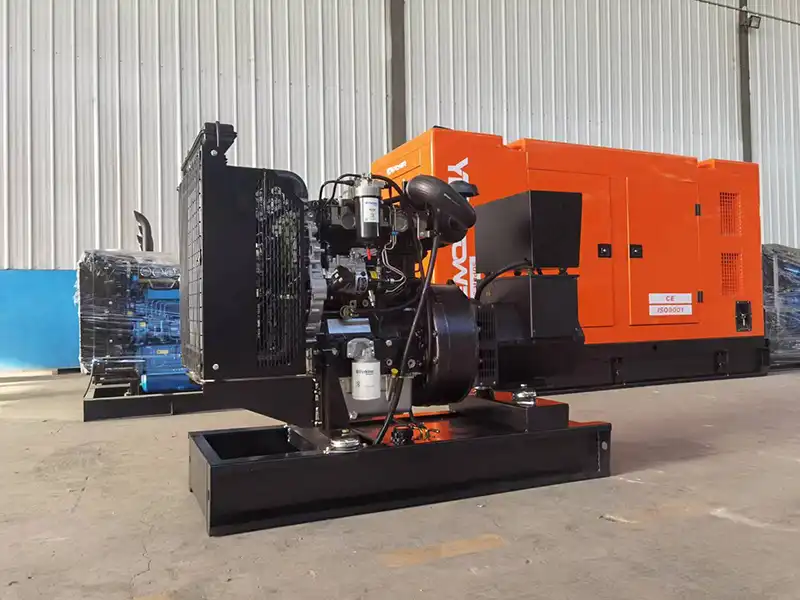

Perkins 100kVA Diesel Generator Description

Designed for mission-critical operations, our Perkins 100kVA diesel generator ensures uninterrupted power during outages or off-grid demands. Built with a 4-cylinder Perkins engine, it offers:

  • 100kVA/80kW Output: Ideal for medium to large facilities.
  • Low Fuel Consumption: Optimized for cost efficiency (≈205g/kWh).
  • Compact & Noise-Reduced: 75-85 dB(A) for urban or indoor use.
  • Tier 3 Emissions Compliance: Balances performance with environmental standards.

perkins diesel generator

Specifications

Genset modelPower(kw)currentEngine modelCylindersBore*strokeDisplacementOil capacityFuel consumption rateDimensionsmmGross weight
KWKVAAmmLLg/kw.hL×W×HKG
JL-8GF81014.4403D-11G377*811.134.92521200×700×1100300
JL-11GF1113.7519.8403D-15G384*901.496.52471250×700×1100350
JL-16GF162028.8404D-22G484*1002.211.22451500×730×1300500
JL-22GF2227.539.6404D-22TG484*1002.211.22451600×730×1300550
JL-24GF243043.21103A-33G3105*1273.38.32111770×750×1600800
JL-36GF364564.81103A-33TG13105*1273.38.32112050×750×1600920
JL-48GF486086.41103A-33TG23105*1273.38.32152200×750×16001050
JL-52GF526593.61104A-44TG14105*1274.48.32082250×750×16001100
JL-64GF6480115.21104A-44TG24105*1274.48.32082300×750×16001150
JL-80GF801001441104C-44TAG24100*1274.48.32082480×760×16001250
JL-110GF110137.51981006TAG6100*1276192082600×760×16001400
JL-120GF1201502161006TAG26100*1276192082650×760×16001450
JL-140GF1401752521106C-E66TAG46105*1276.6192052700×900×16001700
JL-160GF1602002881306C-E87TAG36116*1368.726.42013000×1000×17002100
JL-180GF1802253241306C-E87 TAG46116*1368.726.42013000×1000×17002100
JL-200GF2002503601306C-E87 TAG66116*1368.726.42013100×1000×17002150
JL-280GF2803505042206C-E13TAG26130*15712.5402093600×1200×20003200
JL-320GF3204005762206C- E13TAG36130*15712.5402063650×1200×20003300
JL-360GF3604506482506C-E15TAG16137*17115.2532114000×1200×21003700
JL-400GF4005007202506C-E15TAG26137*17115.2532114050×1200×21003760
JL-480GF4806008642806A-E18TAG1A6145*18318.1552034100×1600×22004600
JL-500GF5006259002806A-E18TAG26145*18318.1552024200×1600×22004800
JL-580GF58072510444006-23TAG2A6160*19022.91132094500×1800×23005500
JL-640GF64080011524006-23TAG3A6160*19022.91132094600×1800×23006000
JL-720GF72090012964008TAG2A8160*19030.51532064800×2100×25007700
JL-800GF800100014404008TAG2A8160*19030.51532064900×2100×25008000
JL-1000GF1000125018004012-46TWG2A12160*19045.81592125300×2200×260010000
JL-1200GF1200150021604012-46TAG2A12160*19045.81592125400×2200×260011000
JL-1400GF1400175025204016TAG16160*19061.12142055700×2800×310013500
JL-1600GF1600200028804016TAG2A16160*19061.12142085800×2800×310014000
JL-1800GF1800225032404016-61TRG316160*19061.12142055900×2800×310015700

The Perkins series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the relevant parameters separately.

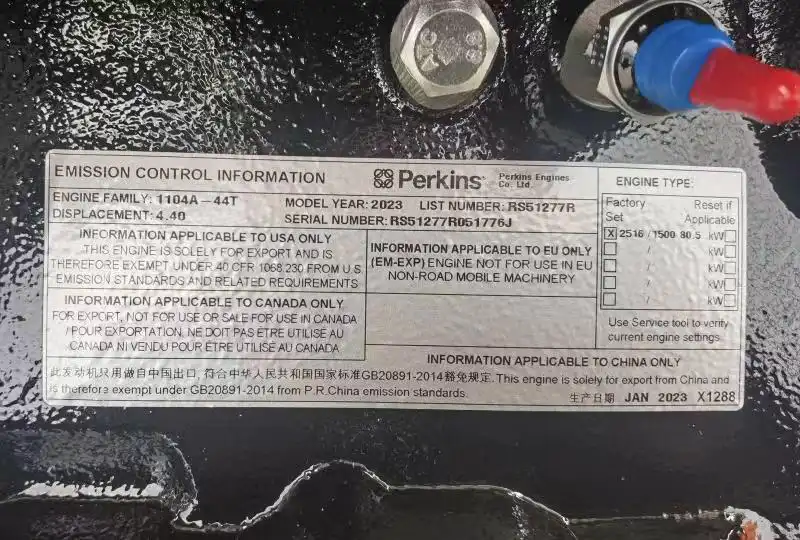

The Perkins diesel generator set performs outstandingly in terms of emission control. It adopts advanced exhaust gas treatment technologies, such as turbocharging, intercooling technology, and an efficient exhaust gas post-treatment system, which can effectively reduce the emission of harmful substances in the exhaust gas, such as nitrogen oxides (NOx), particulate matter (PM), etc.

Why Choose US?

  1. Global OEM Expertise: We manufacture for Cummins, MTU, and Perkins, ensuring top-tier quality.
  2. 2-Year Warranty: Covers mechanical and electrical components.
  3. Customizable Solutions: Tailor voltage, control panels, or soundproofing to your needs.
  4. 26 Overseas Offices: Swift technical support in Africa and Southeast Asia.

Packaging and Delivery

Packaging and Delivery

Perkins 100kVA diesel generators are crated in anti-corrosion wooden frames and shipped globally via air, sea, or land.

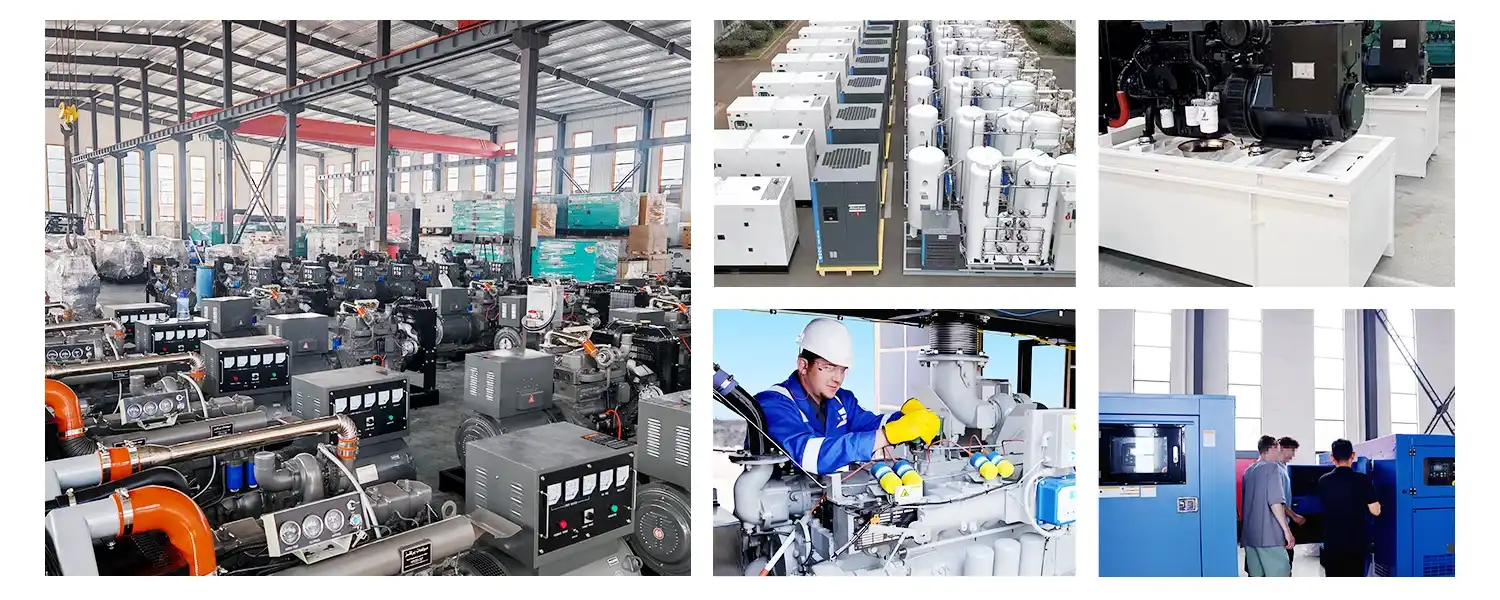

Company Profile

product-1-1

With 11 branches in China and ISO9001/14001 certifications, Wuhan Jlmech specializes in heavy-duty power solutions trusted by brands like Liebherr and Doosan.

Factory After-Sales Service

Our 24/7 support team provides spare parts, maintenance guides, and on-site troubleshooting.

Certification

Certificate

CE, ISO8528, and GB/T 2820-97 certified for safety and performance.

Exhibitions

product-1-1

We showcase innovations at global trade shows like Bauma China and PowerGen Africa.

FAQ

Q: Can this generator integrate with solar/hybrid systems?
A: Yes! We offer hybrid-ready control panels.

Q: What's the lead time for bulk orders?
A: 15-30 days, depending on customization.

Q: Do you provide installation training?
A: Absolutely—free manuals and virtual/physical training sessions.

Trusted by Global Industries

From powering Nigerian hospitals to Indonesian data centers, our Perkins 100kVA diesel generators are the backbone of reliable operations. Need a quote or technical details? Contact our team at skala@whjlmech.com — we're here to keep your business running!
