generator 250kva diesel perkins

Brand:Perkins
AC Output(KW):200KW/250KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted Generator 250kva Diesel Perkins Partner

Wuhan Jlmech Co., Ltd. specializes in providing generator 250kva diesel perkins units trusted by global industries. With 3 R&D centers, 126 technical experts, and OEM partnerships with brands like Cummins and Perkins, our generators combine fuel efficiency, ISO-certified durability, and compliance with emission standards. Ideal for construction, mining, and telecom sectors, we offer 2-year warranties and 24/7 global support.

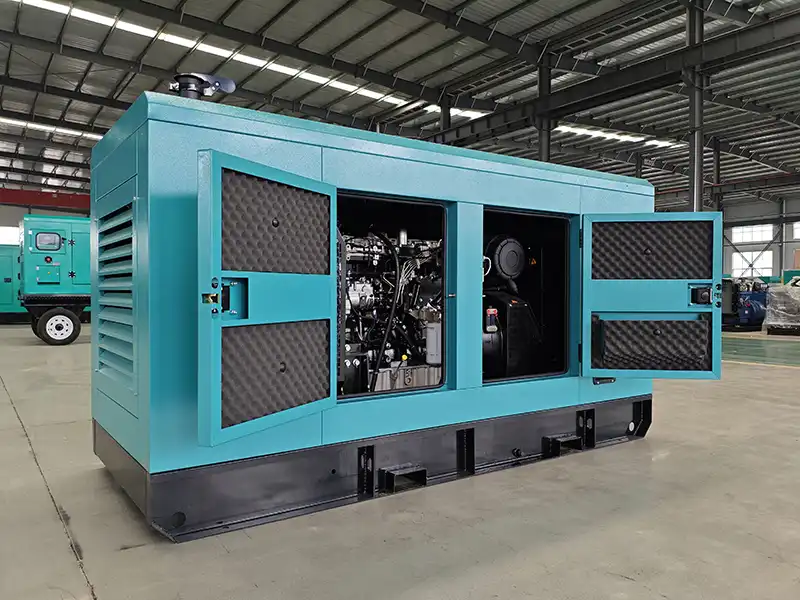

generator 250kva diesel perkins

Generator 250kva Diesel Perkins Description

Our generator 250kva diesel perkins delivers uninterrupted power for remote sites, factories, and emergency scenarios. Built with a Perkins 2506A-E15TAG3 engine, it ensures:

Prime Power Output: 250kVA / 200kW (50Hz).
Fuel Efficiency: Optimized consumption (≤205g/kWh).
Low Noise: 75 dB(A) at 7 meters.
Tier 3 Compliance: Reduced emissions for eco-sensitive regions.

Perfect for bulk procurement, it supports parallel operations for scalable energy needs.

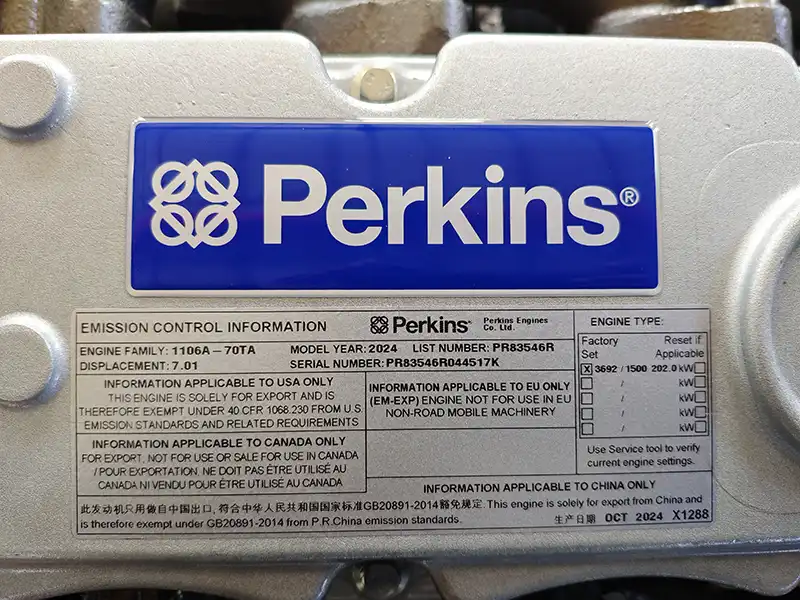

generator diesel perkins

Specifications

Genset model	Power(kw)		current	Engine model	Cylinders	Bore*stroke	Displacement	Oil capacity	Fuel consumption rate	Dimensionsmm	Gross weight
Genset model	KW	KVA	A	Engine model	Cylinders	mm	L	L	g/kw.h	L×W×H	KG
JL-8GF	8	10	14.4	403D-11G	3	77*81	1.13	4.9	252	1200×700×1100	300
JL-11GF	11	13.75	19.8	403D-15G	3	84*90	1.49	6.5	247	1250×700×1100	350
JL-16GF	16	20	28.8	404D-22G	4	84*100	2.2	11.2	245	1500×730×1300	500
JL-22GF	22	27.5	39.6	404D-22TG	4	84*100	2.2	11.2	245	1600×730×1300	550
JL-24GF	24	30	43.2	1103A-33G	3	105*127	3.3	8.3	211	1770×750×1600	800
JL-36GF	36	45	64.8	1103A-33TG1	3	105*127	3.3	8.3	211	2050×750×1600	920
JL-48GF	48	60	86.4	1103A-33TG2	3	105*127	3.3	8.3	215	2200×750×1600	1050
JL-52GF	52	65	93.6	1104A-44TG1	4	105*127	4.4	8.3	208	2250×750×1600	1100
JL-64GF	64	80	115.2	1104A-44TG2	4	105*127	4.4	8.3	208	2300×750×1600	1150
JL-80GF	80	100	144	1104C-44TAG2	4	100*127	4.4	8.3	208	2480×760×1600	1250
JL-110GF	110	137.5	198	1006TAG	6	100*127	6	19	208	2600×760×1600	1400
JL-120GF	120	150	216	1006TAG2	6	100*127	6	19	208	2650×760×1600	1450
JL-140GF	140	175	252	1106C-E66TAG4	6	105*127	6.6	19	205	2700×900×1600	1700
JL-160GF	160	200	288	1306C-E87TAG3	6	116*136	8.7	26.4	201	3000×1000×1700	2100
JL-180GF	180	225	324	1306C-E87 TAG4	6	116*136	8.7	26.4	201	3000×1000×1700	2100
JL-200GF	200	250	360	1306C-E87 TAG6	6	116*136	8.7	26.4	201	3100×1000×1700	2150
JL-280GF	280	350	504	2206C-E13TAG2	6	130*157	12.5	40	209	3600×1200×2000	3200
JL-320GF	320	400	576	2206C- E13TAG3	6	130*157	12.5	40	206	3650×1200×2000	3300
JL-360GF	360	450	648	2506C-E15TAG1	6	137*171	15.2	53	211	4000×1200×2100	3700
JL-400GF	400	500	720	2506C-E15TAG2	6	137*171	15.2	53	211	4050×1200×2100	3760
JL-480GF	480	600	864	2806A-E18TAG1A	6	145*183	18.1	55	203	4100×1600×2200	4600
JL-500GF	500	625	900	2806A-E18TAG2	6	145*183	18.1	55	202	4200×1600×2200	4800
JL-580GF	580	725	1044	4006-23TAG2A	6	160*190	22.9	113	209	4500×1800×2300	5500
JL-640GF	640	800	1152	4006-23TAG3A	6	160*190	22.9	113	209	4600×1800×2300	6000
JL-720GF	720	900	1296	4008TAG2A	8	160*190	30.5	153	206	4800×2100×2500	7700
JL-800GF	800	1000	1440	4008TAG2A	8	160*190	30.5	153	206	4900×2100×2500	8000
JL-1000GF	1000	1250	1800	4012-46TWG2A	12	160*190	45.8	159	212	5300×2200×2600	10000
JL-1200GF	1200	1500	2160	4012-46TAG2A	12	160*190	45.8	159	212	5400×2200×2600	11000
JL-1400GF	1400	1750	2520	4016TAG	16	160*190	61.1	214	205	5700×2800×3100	13500
JL-1600GF	1600	2000	2880	4016TAG2A	16	160*190	61.1	214	208	5800×2800×3100	14000
JL-1800GF	1800	2250	3240	4016-61TRG3	16	160*190	61.1	214	205	5900×2800×3100	15700

The Perkins series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the relevant parameters separately.

The design of the Perkins diesel generator set takes into account the convenience of maintenance. Its engine has a reasonable structural layout, and all components are easily accessible, making it convenient for maintenance personnel to conduct daily inspections, maintenance, and repairs.

Why Choose US?

Proven Expertise: 52 engineers ensure cutting-edge innovation.
Global Support: 26 overseas offices in Africa/Asia provide spare parts and repairs.
Cost-Effective: Competitive pricing with bulk-order discounts.
Compliance Ready: CE, ISO9001, and GB/T 2820-97 certifications.

Fast Delivery & Secure Packaging

product-1-1

Generators are crated in weatherproof steel frames with anti-corrosion coatings. We ship via air/sea with real-time tracking.

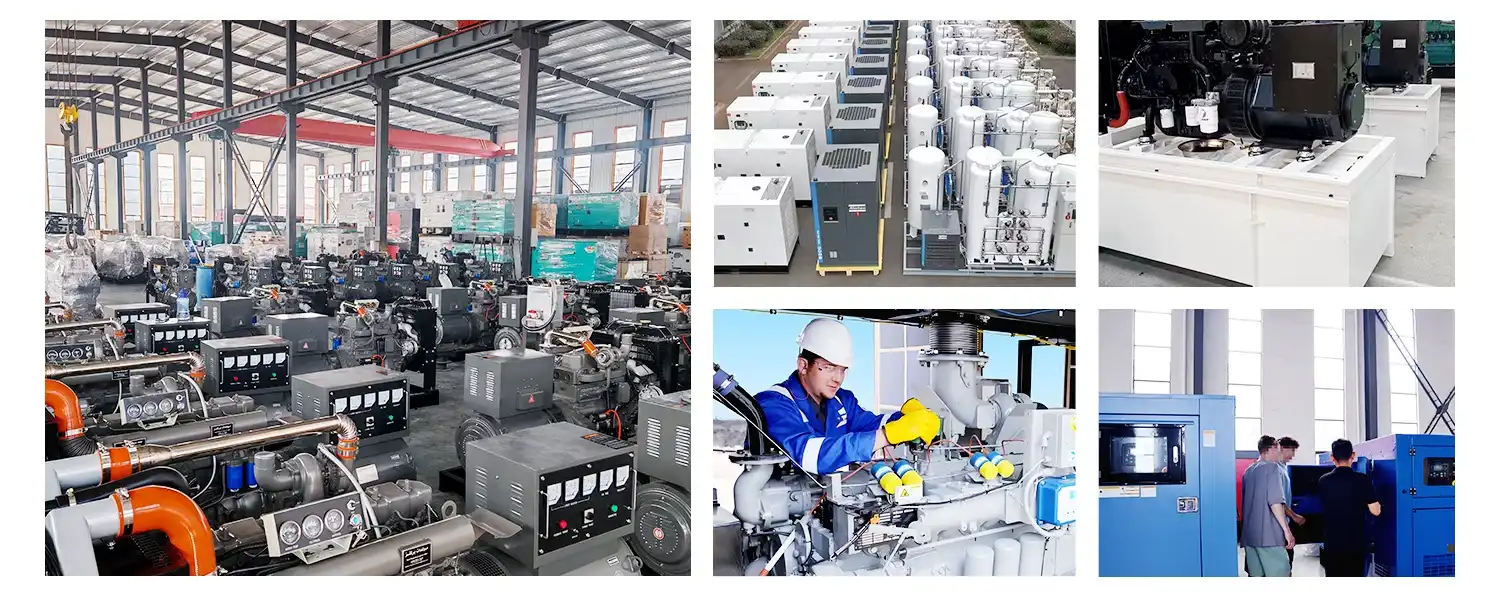

About Wuhan Jlmech Co., Ltd.

product-1-1

A leader since 2008, we operate 11 branches in China and serve as an OEM partner for Perkins, MTU, and Liebherr. Our automated assembly lines and 2-year warranty guarantee reliability.
