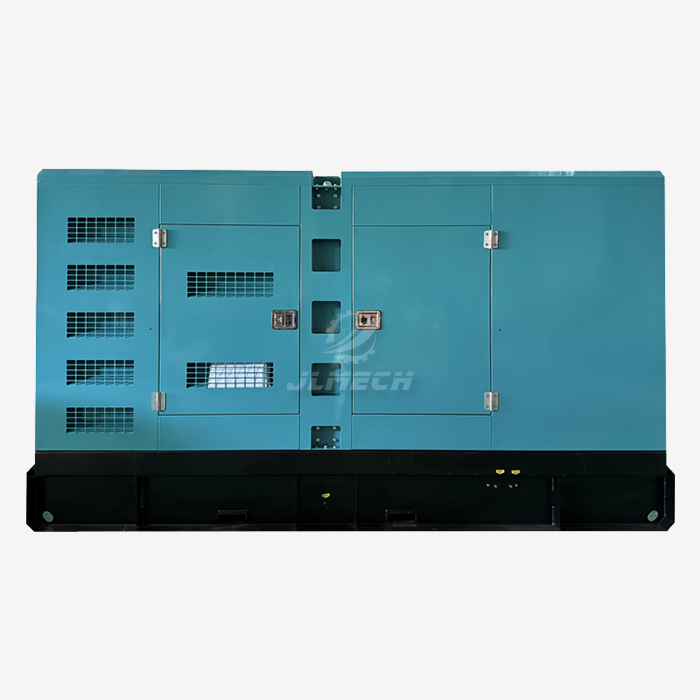

200kva perkins diesel generator

Brand:Perkins
AC Output(KW):160KW/200KVA
Rated AC Voltage(V):400
Frequency(HZ):50
Engine Speed(R.P.M):1500
Phase:Three Phase
Type:Silent/Open Frame
Engine Type:3/4/6/8/12/16 cylinder
Cooling Method: Water Cooling
Starting Method:Electric Starting
Customization: OEM/ODM
Certificates: CE/Euro 5/EPA/CARB

Product Description

JLMECH：Your Trusted 200kVA Perkins Diesel Generator Partner

As a leading supplier, Wuhan Jlmech Co., Ltd. specializes in 200kVA Perkins diesel generator designed for durability and performance. With 3 R&D centers, 11 domestic branches, and 26 global offices, we combine technical expertise (52 engineers) with globally recognized certifications (CE, ISO) and OEM partnerships (Perkins, Cummins). Our 2-year warranty ensures peace of mind for industries requiring robust power solutions.

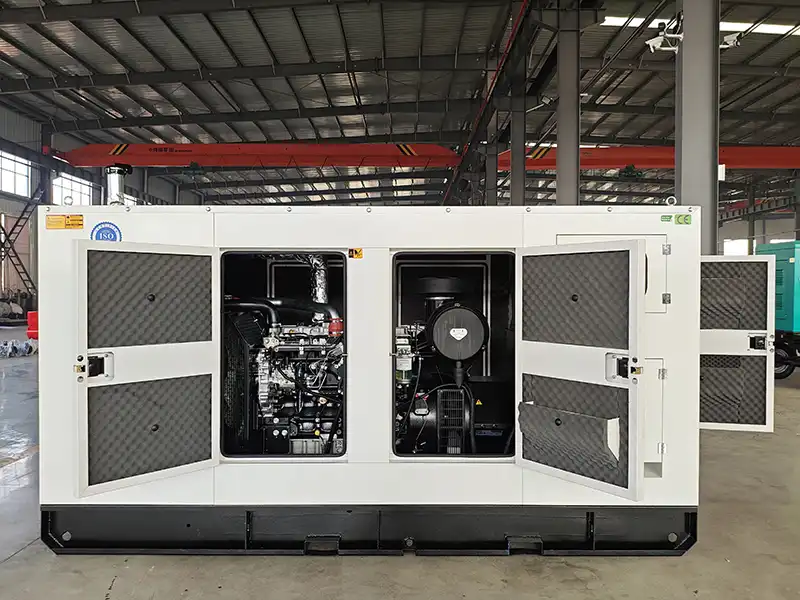

200kva perkins diesel generator

200kVA Perkins Diesel Generator Description

Built for heavy-duty applications, our 200kVA Perkins diesel generator delivers 160-180kW prime power with exceptional fuel efficiency. Engineered for harsh environments, it features:

Perkins 4012-46TAG2 Engine: High torque, low fuel consumption.
Stamford Alternator: Voltage stability (±1%).
Noise Reduction: 75 dB(A) at 7 meters.
Compliance: Meets ISO 8528 and Tier 4 emission standards.

Ideal for construction sites, hospitals, and off-grid operations, this generator ensures uninterrupted power during outages.

perkins diesel generator

Specifications

Genset model	Power(kw)		current	Engine model	Cylinders	Bore*stroke	Displacement	Oil capacity	Fuel consumption rate	Dimensionsmm	Gross weight
Genset model	KW	KVA	A	Engine model	Cylinders	mm	L	L	g/kw.h	L×W×H	KG
JL-8GF	8	10	14.4	403D-11G	3	77*81	1.13	4.9	252	1200×700×1100	300
JL-11GF	11	13.75	19.8	403D-15G	3	84*90	1.49	6.5	247	1250×700×1100	350
JL-16GF	16	20	28.8	404D-22G	4	84*100	2.2	11.2	245	1500×730×1300	500
JL-22GF	22	27.5	39.6	404D-22TG	4	84*100	2.2	11.2	245	1600×730×1300	550
JL-24GF	24	30	43.2	1103A-33G	3	105*127	3.3	8.3	211	1770×750×1600	800
JL-36GF	36	45	64.8	1103A-33TG1	3	105*127	3.3	8.3	211	2050×750×1600	920
JL-48GF	48	60	86.4	1103A-33TG2	3	105*127	3.3	8.3	215	2200×750×1600	1050
JL-52GF	52	65	93.6	1104A-44TG1	4	105*127	4.4	8.3	208	2250×750×1600	1100
JL-64GF	64	80	115.2	1104A-44TG2	4	105*127	4.4	8.3	208	2300×750×1600	1150
JL-80GF	80	100	144	1104C-44TAG2	4	100*127	4.4	8.3	208	2480×760×1600	1250
JL-110GF	110	137.5	198	1006TAG	6	100*127	6	19	208	2600×760×1600	1400
JL-120GF	120	150	216	1006TAG2	6	100*127	6	19	208	2650×760×1600	1450
JL-140GF	140	175	252	1106C-E66TAG4	6	105*127	6.6	19	205	2700×900×1600	1700
JL-160GF	160	200	288	1306C-E87TAG3	6	116*136	8.7	26.4	201	3000×1000×1700	2100
JL-180GF	180	225	324	1306C-E87 TAG4	6	116*136	8.7	26.4	201	3000×1000×1700	2100
JL-200GF	200	250	360	1306C-E87 TAG6	6	116*136	8.7	26.4	201	3100×1000×1700	2150
JL-280GF	280	350	504	2206C-E13TAG2	6	130*157	12.5	40	209	3600×1200×2000	3200
JL-320GF	320	400	576	2206C- E13TAG3	6	130*157	12.5	40	206	3650×1200×2000	3300
JL-360GF	360	450	648	2506C-E15TAG1	6	137*171	15.2	53	211	4000×1200×2100	3700
JL-400GF	400	500	720	2506C-E15TAG2	6	137*171	15.2	53	211	4050×1200×2100	3760
JL-480GF	480	600	864	2806A-E18TAG1A	6	145*183	18.1	55	203	4100×1600×2200	4600
JL-500GF	500	625	900	2806A-E18TAG2	6	145*183	18.1	55	202	4200×1600×2200	4800
JL-580GF	580	725	1044	4006-23TAG2A	6	160*190	22.9	113	209	4500×1800×2300	5500
JL-640GF	640	800	1152	4006-23TAG3A	6	160*190	22.9	113	209	4600×1800×2300	6000
JL-720GF	720	900	1296	4008TAG2A	8	160*190	30.5	153	206	4800×2100×2500	7700
JL-800GF	800	1000	1440	4008TAG2A	8	160*190	30.5	153	206	4900×2100×2500	8000
JL-1000GF	1000	1250	1800	4012-46TWG2A	12	160*190	45.8	159	212	5300×2200×2600	10000
JL-1200GF	1200	1500	2160	4012-46TAG2A	12	160*190	45.8	159	212	5400×2200×2600	11000
JL-1400GF	1400	1750	2520	4016TAG	16	160*190	61.1	214	205	5700×2800×3100	13500
JL-1600GF	1600	2000	2880	4016TAG2A	16	160*190	61.1	214	208	5800×2800×3100	14000
JL-1800GF	1800	2250	3240	4016-61TRG3	16	160*190	61.1	214	205	5900×2800×3100	15700

The Perkins series generator sets have a frequency of 50HZ, a rotational speed of 1500rpm, a voltage of 400V, a power factor of 0.8 (lagging), and adopt a three-phase four-wire system. If you need models with other special requirements, please contact us and we will provide the relevant parameters separately.

Perkins diesel engines usually have a high power density and are able to output a large amount of power with a relatively small volume and weight. They are suitable for various different load requirements, and can handle everything from emergency power supply for households to the power supply of large industrial equipment.

Why Choose US?

Proven Performance: Trusted by global brands like Cummins and Doosan as an OEM partner.
Global Support: 26 overseas offices provide rapid spare parts delivery and 24/7 technical assistance.
Quality Assurance: Rigorous testing on automated lines ensures 100% compliance before shipping.
Cost Efficiency: Optimized fuel consumption reduces operational expenses by up to 15%.

Packaging and Delivery

All 200kVA Perkins diesel generators are crated in anti-rust steel frames and shipped with shock-absorbent materials. Delivery timelines: 15–30 days (standard orders) or 7 days (emergency requests).

Company Profile

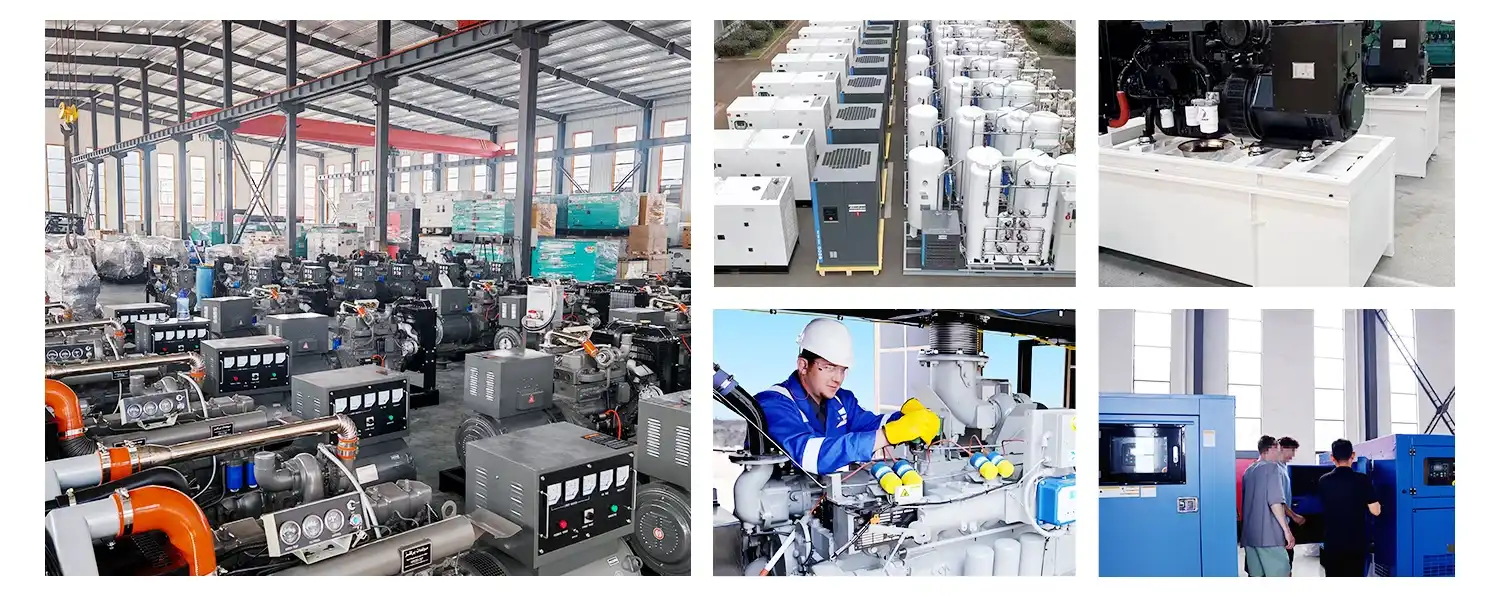

Generator factory

With 126 technical experts and facilities spanning 80,000m², Wuhan Jlmech serves clients in 30+ countries. Our advanced workshops include automated coating lines and precision assembly stations.

Factory After-Sales Service

Enjoy a 2-year warranty covering mechanical and electrical components. Our service network in Africa and Southeast Asia offers on-site maintenance within 72 hours.

Certification

Certificate

CE, CSA, UL, ISO9001, and ISO14001 certified.

Exhibitions

We showcase innovations at global trade shows like Bauma China and Middle East Electricity.

FAQ

Q: What's the lead time for bulk orders?
A: 15–30 days, with expedited options for urgent projects.

Q: Can I customize voltage settings?
A: Yes! We adjust configurations for 220V/380V/415V systems.

Q: How do I maintain the generator?
A: Schedule annual inspections via our service team for optimal performance.

Conclusion: Power Your Projects with Confidence

For a 200kVA Perkins diesel generator that balances reliability and value, Wuhan Jlmech Co., Ltd. is your strategic partner. Contact us at skala@whjlmech.com to discuss tailored solutions.
