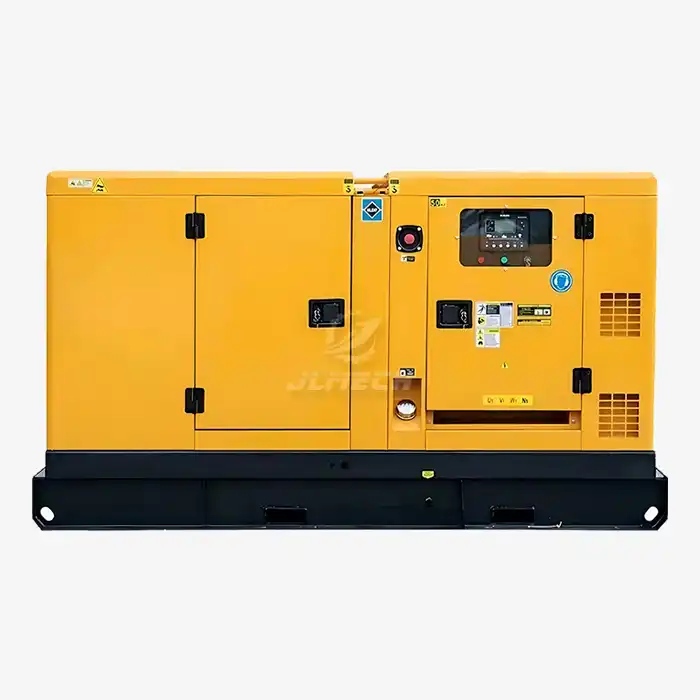

Silent diesel cabinet
Rated AC Voltage(V)：220V/380V/400V
Frequency(HZ):50HZ
Phase:Three phase
Type:Silent/Open Frame
Cooling Method: water Cooling
Starting Method:Electric starting
Customization: OEM/ODM
Noise Level: ≤68 dB at 7 meters
Fuel Consumption: 40 L/hr (at 75% load)
Engine: 6-cylinder turbocharged diesel engine
Dimensions: 2800 x 950 x 1450 mm (LxWxH)
Certifications: CE, ISO8528, GB/T 2820-97
- Product Description
JLMECH: Your Trusted Silent diesel cabinet Manufacturer & Supplier
As a specialized manufacturer of power generation equipment, we engineer high-performance silent diesel cabinet systems that deliver reliable electricity with significantly reduced operational noise. Our technical team designs each unit to meet precise acoustic and performance specifications, ensuring optimal functionality for noise-sensitive applications.
Technical Features & Design Specifications
Advanced Acoustic Engineering
Multi-layer sound absorption materials with specialized interior lining
Engineered airflow pathways that minimize noise transmission
Low-noise ventilation system with optimized fan design
Robust Cabinet Construction
Heavy-duty steel frame with anti-vibration mounting
Triple-layer composite walls with sound damping insulation
Full-sealing door system with acoustic gaskets
Superior Performance Characteristics
Noise reduction to 60-70 dB(A) at 1 meter distance
IP54/55 protection rating for weather resistance
Integrated cooling system with temperature control
Operational Efficiency
Easy-access maintenance points with removable panels
Built-in fuel tank options (optional)
Comprehensive monitoring instrumentation
Application-Specific Configurations
Our silent diesel cabinet solutions are available in multiple configurations:
Standard models for general industrial use
Enhanced versions for urban and residential areas
Custom designs for specific noise level requirements
Various power outputs from 20kVA to 500kVA
Each unit undergoes rigorous testing to ensure compliance with international noise standards and performance expectations, providing clients with a dependable power source that maintains peaceful operational environments.
Specifications
| Model | Powe (KW) | Power (KVA) | Current (A) | Engine model | Cylinder | Bore*Stroke (mm) | Displacement (L) | Lube oil (L) | Consumption (g/kw.h) | Size (mm) | Weight (Kg) |
| JL-7GF | 7 | 8.75 | 12.6 | 403A-11G1 | 3 | 77*81 | 1.13 | 4.9 | 248 | 1200*700*1100 | 300 |
| JL-8GF | 8 | 10 | 14.4 | 403D-11G | 3 | 77*81 | 1.13 | 49 | 252 | 1200*700*1100 | 300 |
| JL-10GF | 10 | 2.5 | 18 | 403D-15G | 3 | 84*90 | 149 | 6 | 248 | 1250*700*1100 | 350 |
| JL-11GF | 11 | 13.75 | 19.8 | 403A-15G1 | 3 | 84*90 | 1.49 | 6.5 | 248 | 1250*700*1100 | 350 |
| JL-12GF | 12 | 15 | 21.6 | 403A-15G2 | 3 | 84*90 | 1.49 | 6 | 250 | 1250*700*1100 | 350 |
| JL-16GF | 16 | 20 | 28.8 | 404A-22G1 | 4 | 84*100 | 2.2 | 10.6 | 237 | 1500*710*1100 | 500 |
| JL-16GF | 16 | 20 | 28.8 | 404D-22G | 4 | 84*100 | 2.2 | 10.6 | 237 | 1500*710*1100 | 500 |
| JL-24GF | 24 | 30 | 43.2 | 1103A-33G | 3 | 105*127 | 3.3 | 79 | 211 | 1500*750*1100 | 800 |
| JL-36GF | 36 | 45 | 64.8 | 1103A-33TG1 | 3 | 105*127 | 3.3 | 7.9 | 211 | 1550*750*1180 | 920 |
| JL-50GF | 50 | 62.5 | 90 | 1104A-44TG1 | 4 | 105*127 | 4.4 | 8 | 208 | 1800*750*1180 | 1100 |
| JL-80GF | 80 | 100 | 144 | 1104D-E44TAG2 | 4 | 105*127 | 4.4 | 8 | 216 | 1950*800*1200 | 1250 |
| JL-110GF | 110 | 137.5 | 198 | 1106A-70TG1 | 6 | 105*135 | 7.01 | 18 | 199 | 2500*950*1450 | 1350 |
| JL-120GF | 120 | 150 | 216 | 1106A-70TAG2 | 6 | 105*135 | 7.01 | 16.5 | 208 | 2600*950*1450 | 1450 |
| JL-160GF | 160 | 200 | 288 | 1106A-70TAG4 | 6 | 105*135 | 7.01 | 16.5 | 220 | 2800*950*1450 | 2100 |
The rotational speed in the above Perkins Diesel Generator technical parameters is 1500 RPM, the frequency is 50 Hz, the rated voltage is 400/230V, the power factor is 0.8, and the wiring method is three-phase four-wire. The 60 Hz generator sets and generator brands can be customized according to the special needs of customers. This parameter table is for reference only. For details, please contact our customer service.
Why Choose Our 200kVA Silent Diesel Generators?
- Reliability First: Tested for 500+ hours under extreme conditions.
- Technical Expertise: 27 senior engineers oversee design and QA.
- Global OEM Experience: Trusted by Cummins, Perkins, and MTU.
- 24/7 Support: 26 overseas offices in Africa and Southeast Asia.
Packaging and Delivery
Silent diesel cabinet are crated in weatherproof wooden frames with anti-rust coatings. Global shipping via sea/air freight, with door-to-door delivery options.
About Wuhan Jlmech Co., Ltd.
With 3 R&D centers, 126 technical staff, and 11 branches across China, we serve 50+ countries. Our 20,000㎡ factory features automated assembly lines and rigorous testing systems.
Factory After-Sales Service
All units include a 2-year warranty, with spare parts available globally. Custom maintenance contracts and emergency support are offered.
Certification
Compliant with CE, ISO9001, ISO14001, and ISO8528 standards.
Exhibitions
We regularly showcase innovations at global trade shows like Canton Fair and POWER-GEN Asia.
FAQ
Q: What's the noise level of your Low noise diesel set?
A: ≤68 dB—quieter than a vacuum cleaner.
Q: Can it run continuously for 24 hours?
A: Yes, with optimized cooling systems and fuel efficiency.
Q: Are parallel systems supported?
A: Absolutely. Scalable for higher power needs.
Q: Do you customize for tropical climates?
A: Yes, enhanced cooling and corrosion-resistant coatings are optional.
Need a Reliable Generator?
Contact us at skala@whjlmech.com for Silent diesel cabinet quote., technical specs, or partnership opportunities. Let's power your success with Wuhan Jlmech's trusted solutions.
